1200164 PHOENIX CONTACT -

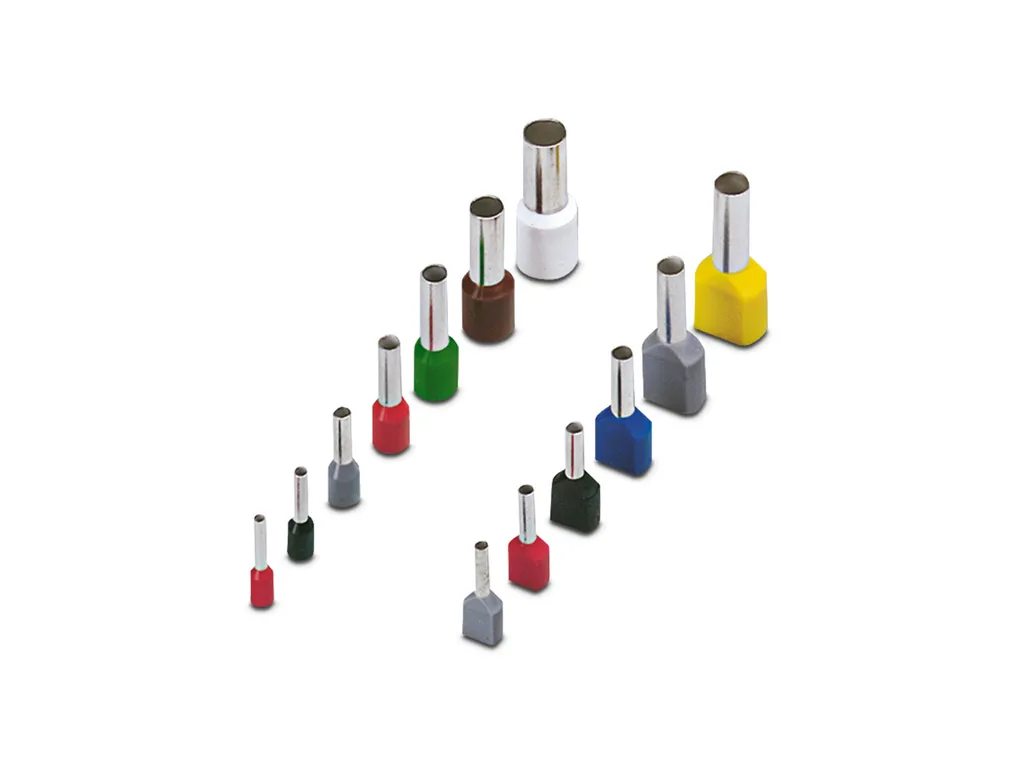

AI 2,5-8 GY S1 - Ferrule

Ferrule, Dimensions according to DIN 46228-4, with color-coded plastic collars according to NF C 63-023:1994-02, for processing with the CRIMPFOX 4 in 1, sleeve length: 8 mm, color: gray, number of strips: 10, number of sleeves per strip: 40

Cod. Articolo: 1200164 copia - copy

Cod. Fornitore: 1200164 copia - copy

PHOENIX CONTACT

Product properties	Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M
Connection data	Conductor connection Conductor cross section flexible max.: 2.5 mm² Conductor cross section AWG max.: 14 Stripping length: 11 mm
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d23e4c8458affd44ac5070d1f3ea582b/-S204x204-FJPG Sleeve length: 8 mm Maximum stripping length: 11 mm Ferrule diameter: 2.3 mm Sleeve wall thickness: 0.15 mm Insulating collar thickness: 0.3 mm Inner dimensions of the insulating collar: 4.2 mm
Material specifications	Color: gray Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen
Mechanical properties	Technical data Sleeve length: 8 mm
Environmental and real-life conditions	Ambient conditions Permanent temperature: 105°C (-40Ã°C no load / 0Ã°C dynamic load) Short-term temperature: 120°C
Standards and regulations	Design according to standard: DINÃ46228-4
