| Notes | General: Suitable for classÃ2 and 5 standard PVC conductors (H05V-K/H07V-K). Other conductor and insulation types can be processed to a limited extent. |

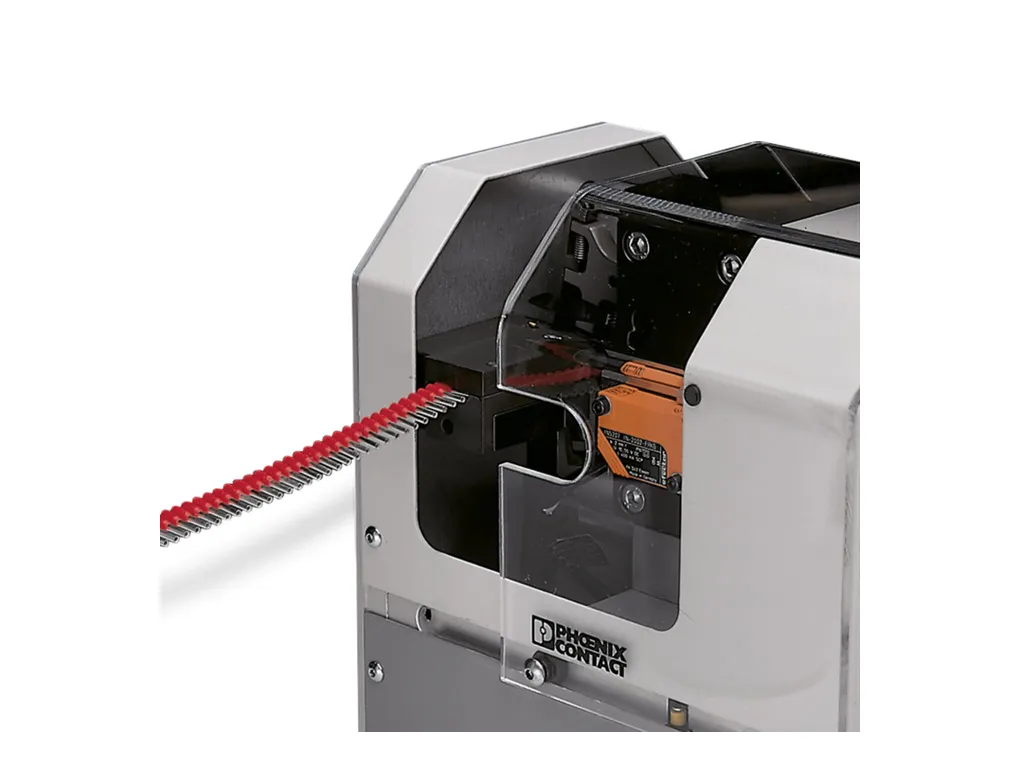

| Product properties | Product type: Crimping machine Compression: trapezoidal Conductor type: PVC Insertion length minimum: 49 mm Min. cross section: 0.25 mm² Max. cross section: 2.5 mm² AWG min: 24 AWG max: 14 |
| Electrical properties | Frequency range: 50 Hz Power consumption: 80 W Nominal voltage UN: 230 V Supply Supply voltage: 230 VÃAC Supply voltage range: 220 VÃAC ... 240 VÃAC (50ÃHz) |
| Connection data | Conductor connection Cross section range, metric: 0.25 mm² ... 2.5 mm² Cross section range AWG: 24 ... 14 Stripping length: 11.5 mm |
| Dimensions | Width: 165 mm Height: 300 mm Length: 320 mm |
| Standards and regulations | Tests: DIN 46228-4: 1990-09 |
