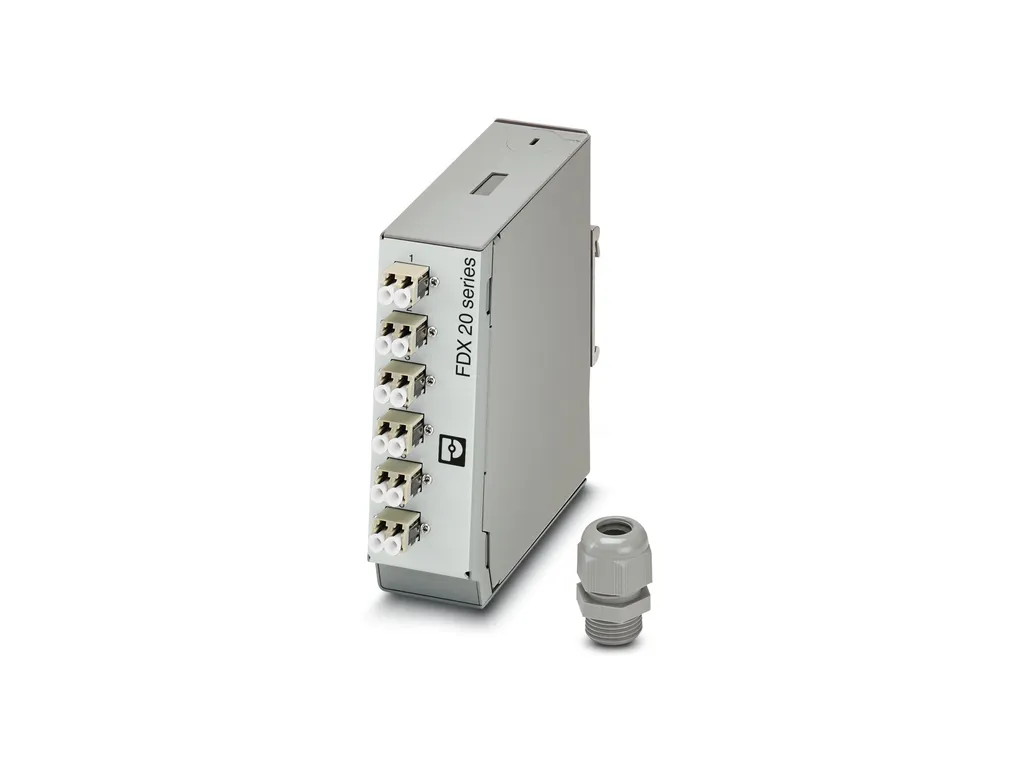

| Product properties | Type: Rail-mountable module Product type: Network distributor box Sensor type: Ethernet Number of positions: 12 Connection profile: LC-Duplex No. of conductors: 12 Number of module slots: 6 Number of slots: 12 Protective cover: yes Cable outlet: above and below |
| Electrical properties | Attenuation: ââ°¤ 0.6 dB Transmission medium: FO |
| Connection data | Connection technology Connection method: M17 circular connector |
| Dimensions | Width: 40 mm Height: 130 mm Depth: 115 mm Housing Housing width: 40 mm Mechanical characteristics Ferrule diameter: 1.25 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Ferrule material: PPS Housing surface material: Powder-coated, gray (metal housing) Housing material: Metal |
| Cable/line | Cable type: Multimode fiberglass Fan out External cable diameter: ââ°¤ 12 mm (of 6Ãmm) 6 mm ... 12 mm Individual wire diameter: 2 mm FO cable Number of fibers: 12 Fiber: GOF Fiber type: Multimode fiberglass 62.5/125Ãõm Transmission medium: FO |
| Characteristics | Attenuation: ââ°¤ 0.6 dB |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): -5°C ... 55°C |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: Option for flexible replugging of DIN rail adapter Connection method: M17 circular connector |
