| Product properties | Product type: Data cable preassembled Sensor type: Single Pair Ethernet Number of positions: 2 Application: Standard No. of cable outlets: 1 Shielded: yes Insulation characteristics Overvoltage category: I |
| Interfaces | Bus system: Ethernet Signal type/category: Single Pair Ethernet CAT B (ISO/IEC 63171), 1 Gbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 72 VÃDC Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 | WH (RX/TX+) | 1 2 | BU (RX/TX-) | 2 |
| Connector | Connection 1 Type: Plug straight M8-SPE / IP67 Shielded: yes Insertion/withdrawal cycles: ââ°¤ 100 100 Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C Connection 2 Type: Plug straight M8-SPE / IP67 Shielded: yes Insertion/withdrawal cycles: ââ°¤ 100 Ambient temperature (operation): -25°C ... 85°C Degree of protection: IP67 |

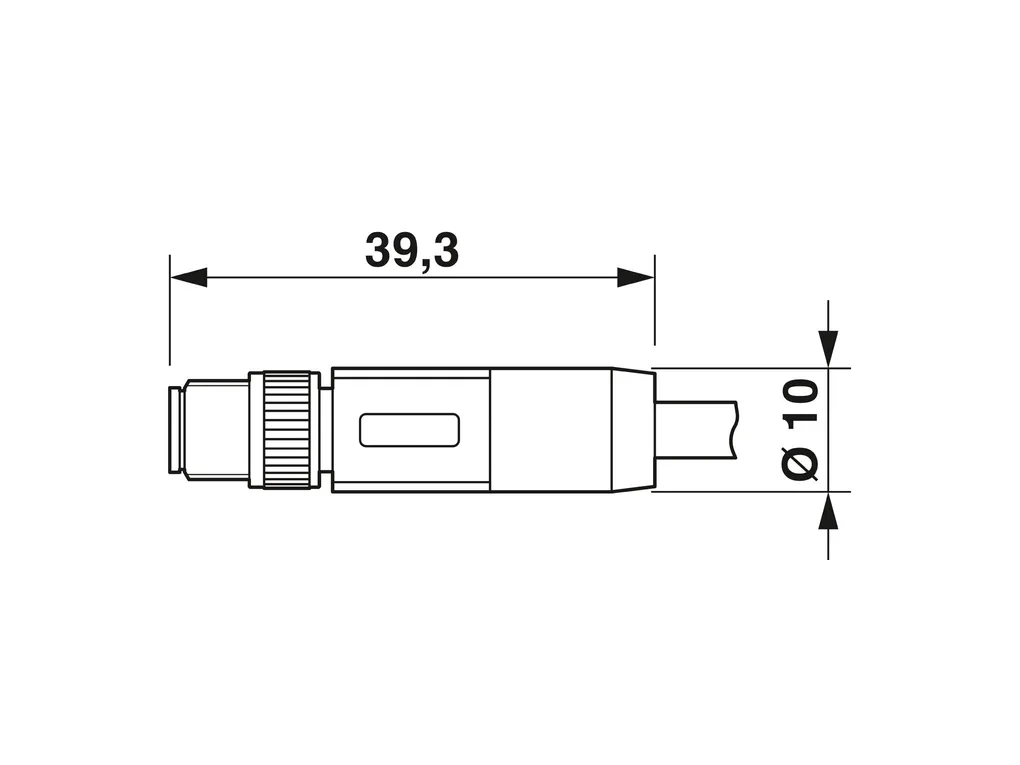

| Cable/line | Cable length: 2 m Single Pair Ethernet PUR flexible, greenÃ[99B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d647e38c07b9ad4693acc2f264d16294/-S204x204-FJPG Cable weight: 42 kg/km UL AWM Style: 20233 (80°C/300 V) Number of positions: 2 Shielded: yes Cable type: Single Pair Ethernet PUR flexible, greenÃ[99B] Conductor structure: 1 x 2 x AWG 22/7, S/FTP Conductor structure signal line: 7x AWG signal line: 22 Conductor cross section: 2x 0.34 mm² Wire diameter incl. insulation: 1.8 mm External cable diameter: 5.8 mm ñ0.3Ãmm Outer sheath, material: PUR External sheath, color: green Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE Single wire, color: white, blue Thickness, outer sheath: 0.8 mm Twisted pairs: 2 cores to the pair Overall twist: 1Ãpair with fillers twisted horizontally Optical shield covering: 90 % Insulation resistance: ââ°¥ 5 Gé*km Loop resistance: ââ°¤ 120.00 é/km Wave impedance: 100 é ñ5Ãé (at 100 MHz) Cable capacity: 48 nF/km Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 1000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 1000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Flame resistance: according to IEC 60332-1-2 Resistance to oil: in accordance with DINÃENÃ60811-404 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) -25°C ... 80°C (for installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 63171-5 Note: T1-SPE |
