| Product properties | Product type: Data cable preassembled Sensor type: Single Pair Ethernet Number of positions: 2 Application: Standard No. of cable outlets: 1 Shielded: yes Insulation characteristics Overvoltage category: I |
| Interfaces | Bus system: Ethernet Signal type/category: Single Pair Ethernet CATÃA (ISO/IEC 63171), 10 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 72 VÃDC Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 | WH (RX/TX+) | 1 2 | BU (RX/TX-) | 2 |
| Connector | Connection 1 Type: Socket straight M8-SPE / IP67 Shielded: yes Insertion/withdrawal cycles: ââ°¤ 100 100 Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C Connection 2 Type: Socket straight M8-SPE / IP67 Shielded: yes Insertion/withdrawal cycles: ââ°¤ 100 Ambient temperature (operation): -25°C ... 85°C Degree of protection: IP67 |

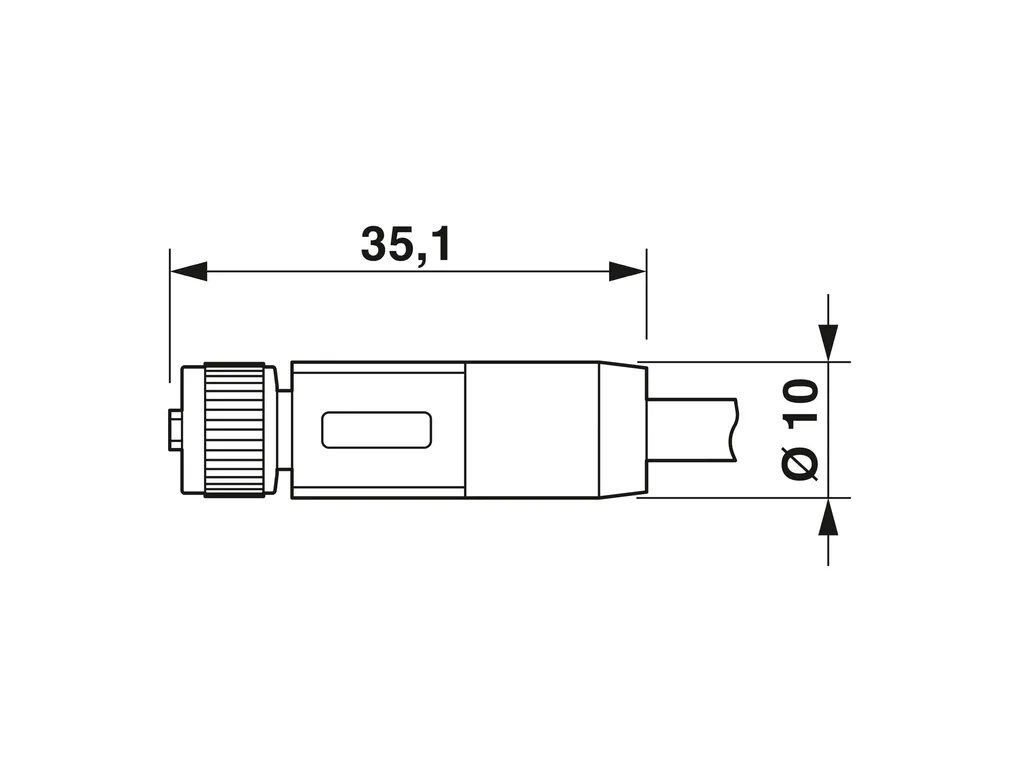

| Cable/line | Cable length: 2 m Single Pair Ethernet PUR flexible, blackÃ[97B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2161021052f15148aa3551de9819f8f3/-S204x204-FJPG UL AWM Style: 2095 (80°C/300 V) Number of positions: 2 Shielded: yes Cable type: Single Pair Ethernet PUR flexible, blackÃ[97B] Conductor structure: 1 x 2 x AWG 22/7, S/FTP Conductor structure signal line: 7x AWG signal line: 22 Conductor cross section: 2x 0.34 mm² Wire diameter incl. insulation: 1.65 mm External cable diameter: 5.1 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: black Conductor material: Tin-plated Cu litz wires Material wire insulation: Foamed PE Single wire, color: white, blue Thickness, outer sheath: 0.55 mm Twisted pairs: 2 cores to the pair Overall twist: 1Ãpair with fillers twisted horizontally Optical shield covering: 80 % Max. conductor resistance: ââ°¤ 59.4 é/km Insulation resistance: ââ°¥ 5 Gé*km Wave impedance: 100 é ñ15Ãé (at 20ÃÃà Hz) Nominal voltage, cable: 300 V Minimum bending radius, fixed installation: 4 x D Flame resistance: According to FT-2 Ambient temperature (operation): -20°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 63171-5 Note: T1-SPE |
