| Dimensions | Width: 40 mm Height: 140.4 mm Depth: 92.4 mm |
| Material specifications | Housing material: Polycarbonate fiber reinforced Aluminum / steel sheet DC01 |
| Mounting | Mounting type: DIN rail mounting |
| Interfaces | Ethernet (RJ45) Number of interfaces: 12 Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Ethernet in RJ45 twisted pair Transmission length: 100 m (per segment) Signal LEDs: Data receive, link status No. of channels: 12 (RJ45 ports) Ethernet (SFP) Number of interfaces: 2 Connection method: SFP Transmission speed: 100/1000 Mbps (full duplex) Transmission physics: Depending on the SFP module Transmission length: up to 40 km (Depending on the fiber/SFP module used) Signal LEDs: Data receive, link status No. of channels: 2 (SFP ports) |
| Product properties | Product type: Switch Product family: Unmanaged Switch 1000 MTTF: 64.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) 298.8 Years (SNÃ29500 standard, temperatureÃ25°C, operating cycleÃ21%) 560.1 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) Switch functions Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode PROFINET conformance class: Conformance-Class A MAC address table: 8k Status and diagnostic indicators: LEDs: US, link and activity per port Additional functions: 100 BASE-TX/100BASE-FX (IEEE 802.3u) Quality of Service (QoS) prioritization (IEEE 802.1p) Energy-efficient Ethernet (IEEE 802.3az) 10Base-T (IEEE 802.3) Security functions Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode |
| Electrical properties | Transmission medium: Copper Supply Supply voltage (DC): 24 VÃDC Supply voltage range: 9 VÃDC ... 32 VÃDC Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm² Residual ripple: 3.6 VPP (within the permitted voltage range) Max. current consumption: 223 mA (at 9 V DC) Typical current consumption: 125 mA (at 24 V DC) |
| Connection data | Connection technology Connection name: Power supply pluggable: yes Power supply Connection method: Push-in spring connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Stripping length: 10 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -40°C ... 75°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: 2000 m (maximum) Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) Shock (operation): 30g (ENÃ60068-2-27) Vibration (operation): in acc. with IEC 60068-2-6: 5g, 150 Hz Air pressure (operation): 79 kPa ... 108 kPa up to 2000Ãm above mean sea level (Without derating) Air pressure (storage/transport): 79 kPa ... 108 kPa up to 2000Ãm above mean sea level (Without derating) |
| Approvals | Conformity/Approvals Conformance: CE-compliant ATEX: ïà II 3 G Ex ec IIC T4 Gc EU-type examination certificate: UL 21 ATEX 2638X IECEx: Ex ec IIC T4 Gc IECEx certificate: IECEx UL 21.0120X UL, USA / Canada: UL 61010-1, UL 61010-2-201 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4 |
| EMC data | Conformance with EMC directives: EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A EN 61000-6-2 EN 61000-4-5 (surge) Criterion B EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A EN 61000-6-2 ClassÃA Noise immunity: EN 61000-6-2:2005 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Noise emission: EN 61000-6-4:2007Ã+ÃA1:2011 |
| System properties | Functionality Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode |

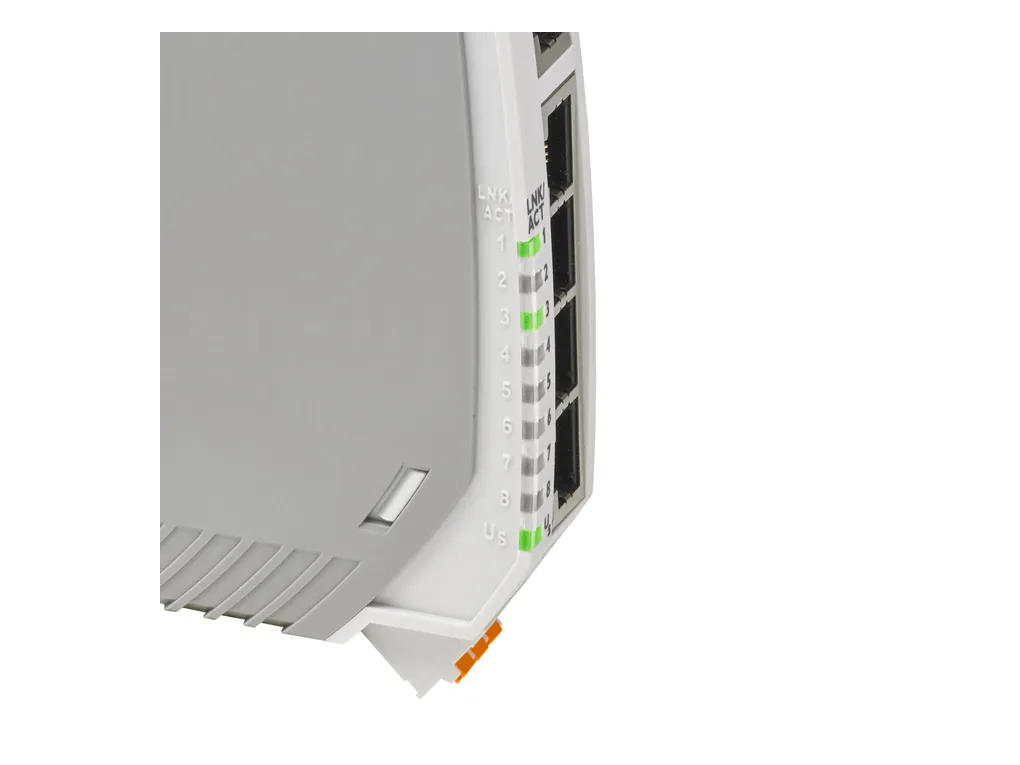

| Signaling | Status display: LEDs: US, link and activity per port |
