1263628 PHOENIX CONTACT -

EO-AB/UT/LED/DUO/V/GFI/15 - Double socket

Double socket, Pin connector pattern type AB 15A, Screw connection, gray, Direct mounting, 125 VAC, 15 A, -20°C, 60°C, UL 508

Cod. Articolo: 1263628 copia - copy

Cod. Fornitore: 1263628 copia - copy

PHOENIX CONTACT

Product properties	Product type: Socket Country ID: USA Response time: 25 ms (6 mA)
Electrical properties	Nominal voltage U_N: 125 VÃAC (60ÃHz) Nominal current I_N: 15 A
Signaling	Status display: Yes

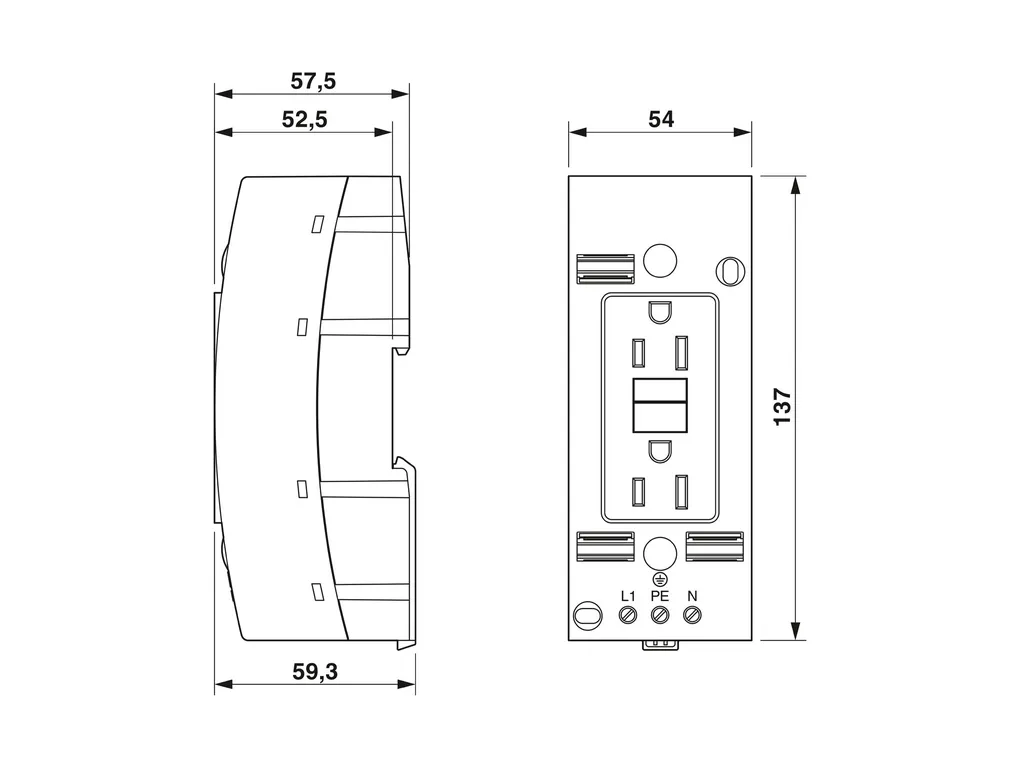

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/37dda97923b1b54481a92edb61d2f362/-S204x204-FJPG Width: 54 mm Height: 137 mm Depth: 137 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material: PA Contact material: CuZn37 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Connector	Type of plug: Pin connector pattern type AB 15A
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C (max. short-term operating temperature RTI Elec.)
Standards and regulations	Standards Standards/regulations: ULÃ508
Mounting	Mounting type: Direct mounting Connection method: Screw connection
