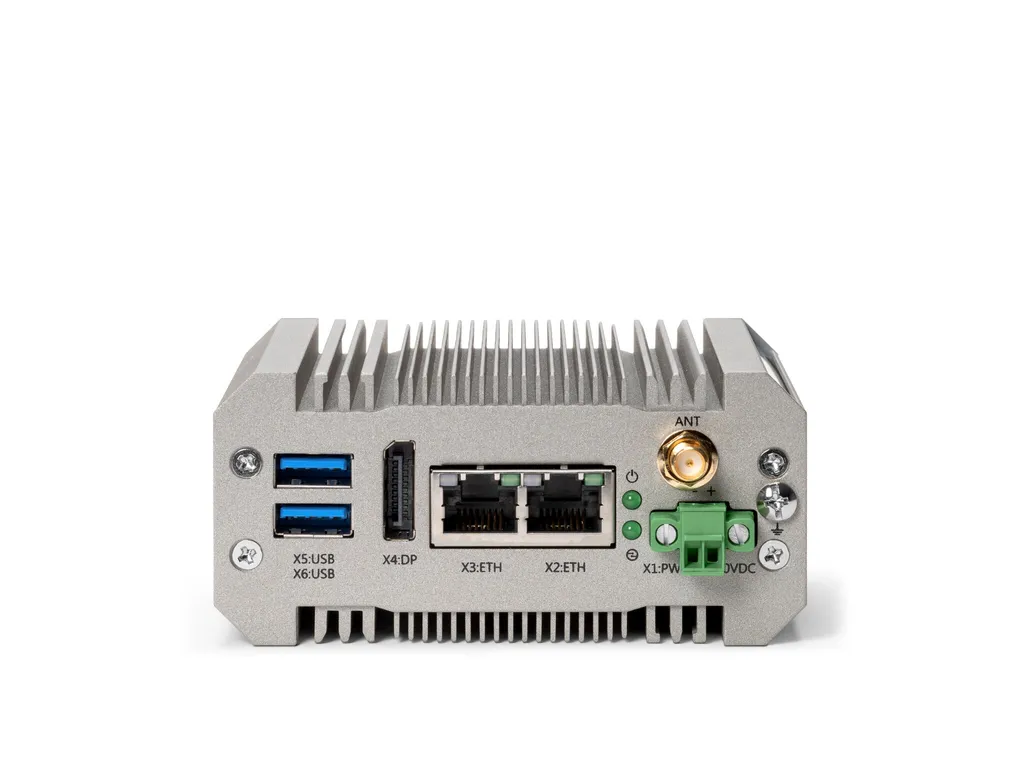

1272827 PHOENIX CONTACT -

Product properties	Product type: Box PC Computer data Processor: Intel^Ã® AtomÃ¢Ã¢¢ E3940 1.6ÃGHz Operating system: without operating system Cooling: passive RAM: 4 GB LPDDR4 Data storage system: eMMC internal, 64ÃGB Display Display type: none
System properties	User software: without user software
Electrical properties	Maximum power dissipation for nominal condition: 16.8 W Supply Supply voltage (DC): 24 VÃDC (CE rating) Supply voltage range: 12 VÃDC ... 30 VÃDC (Labeled operational voltage is 12 Ã¢Ã¢¬¦ 30ÃVÃDC) Max. current consumption: 0.7 A (24ÃVÃDC) Typical current consumption: 0.53 A (24ÃVÃDC)
Connection data	Screw connection Connection method: Screw connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 25 ... 14
Interfaces	Interfaces: 1x DP++ 2x USB 3.0 Network: 2x Ethernet (10/100/1000 Mbps), RJ45 LAN chipset: Intel^Ã® I210-AT
Dimensions	External dimensions Width / Height / Depth: 99 mm / 92 mm / 46 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -40°C ... 70°C (With 0.5 m/s airflow. ÃNOTE: Operation above 60°C ambient temperature invalidatesthe UL listing.) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 85 % (non-condensing) Shock: 15g, 11 ms in accordance with IEC 60068-2-27 Vibration (operation): 1g, according to ENÃ60068-2-6
Approvals	Conformity/Approvals Conformance: CE-compliant FCC: Title 47 Part 15 Subpart B:2018 Class A
Mounting	Mounting type: DIN rail mounting Wall mounting (Accessories required)
