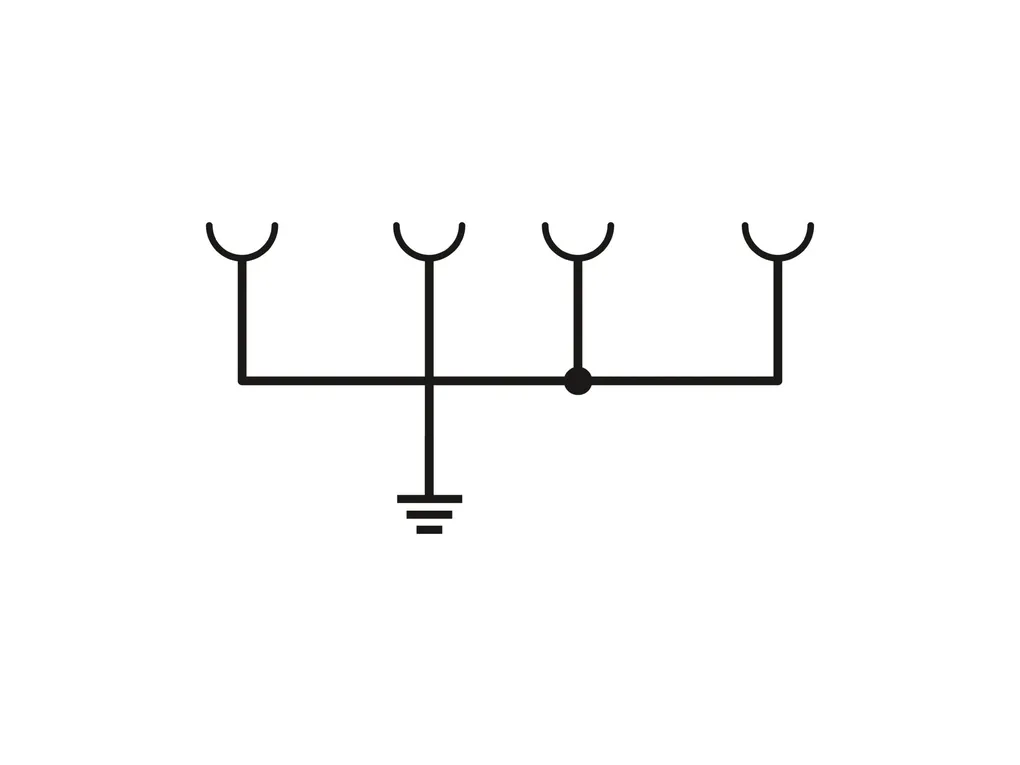

| Notes | General: for CLIXTRAB surge protection suitable for HCC 4 series Generalââ¬Ã¢¹ Note: When using surge protection plugs, the load current of the modular terminal block is reduced (see technical data for CLT surge protection plugs). |
| Product properties | Product type: Feed-through terminal block Number of positions: 10 Number of connections: 10 Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated surge voltage: 4 kV |
| Connection data | Number of connections per level: 10 Connection in acc. with standard: IEC 61984 Nominal voltage: 400 V |
| Dimensions | Width: 72.6 mm Height: 75.9 mm Depth: 35.3 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60 °C Relative insulation material temperature index (Elec., UL 746 B): 130 °C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Environmental and real-life conditions | Service life Insertion/withdrawal cycles: 100 Oscillation/broadband noise Specification: DIN EN 50155 (VDE 0115-200):2018-05 Spectrum: Service life test category 1, class B, body mounted Frequency: f1 = 5 Hz to f2 = 150 Hz ASD level: 0.964 (m/s²)²/Hz Acceleration: 0.58g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DIN EN 50155 (VDE 0115-200):2018-05 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60 °C (max. operating temperature see derating curve) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 61984 |
| Mounting | Mounting type: NS 35/7,5 NS 35/15 |
