| Notes | General: Polypropylene (PP) sheets can be processed with the TOPMARK NEO with S/N 2004000390 and higher. A conversion kit is available for devices with serial numbers that are lower. Please contact your sales representative for conversion of your TOPMARK NEO. According to the US ââ¬Ã Code of Federal Regulations, Food and Drugs (FDA), 21ÃCFR Ch.Ã1ââ¬, the polypropylene rating plates UC-WMTBA (...)/PP xxx and UC-WMTBA-D (...)/PP xxx in light blue, light gray, red, blue, signal white and light red may be safely used for identification of machines intended for food processing. The polypropylene rating plates UC-WMTBA (...)/PP xxx and UC-WMTBA-D (...)/PP xxx may be safely used for identification of machines intended for food processing. They may be in direct contact with dry, watery, non-acidic, alcoholic as well as fatty food, to which the D1 food simulant is assigned in accordance with Regulation (EU) No.Ã10/2011. |

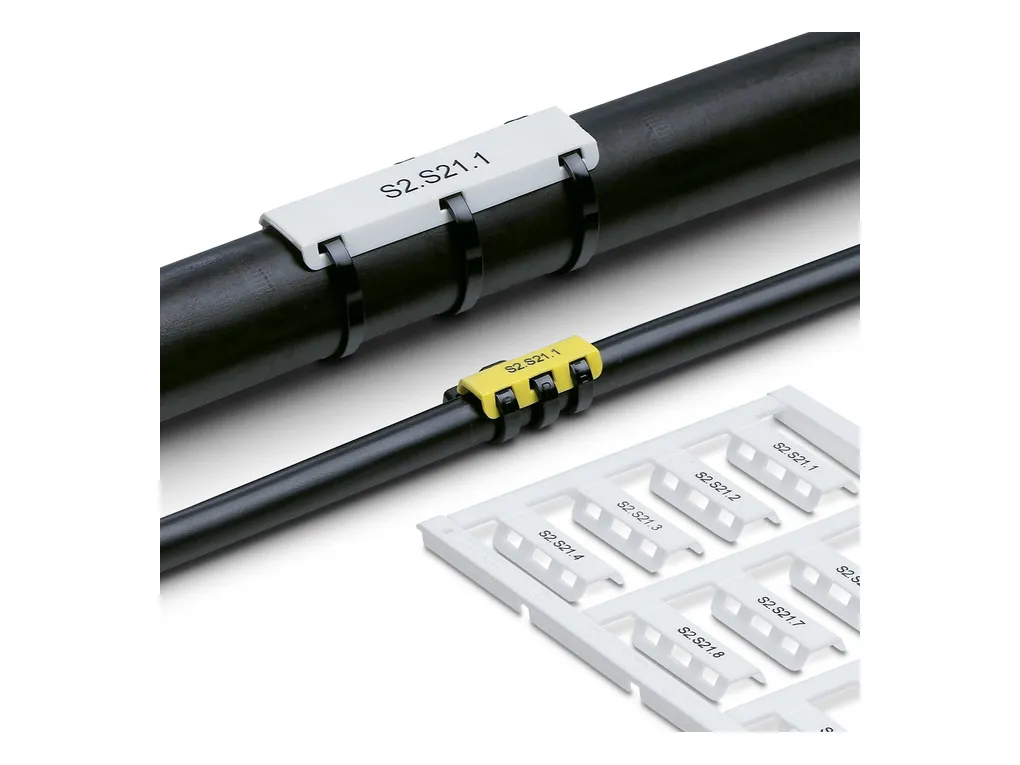

| Product properties | Product type: Conductor marking Type: Card form Product property: High resistance to chemicals Area of application: Food and beverage industry Marking Number of individual labels: 12 Number of individual labels per row: 4 Identification technology: Direct laser marking |
| Dimensions | Width: 10 mm Length: 24 mm External dimensions Outside diameter: 4 mm ... 136 mm |
| Material specifications | Color: light red Material: PP Components: free from silicone and halogen |
| Cable/line | External cable diameter: > 4 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISOÃ4892-2:2013-03 IEC 60068-2-2:2007-07 Result: Test passed Test duration: 96 h Duration: 96Ãh Maximum temperature: +85ðC Wipe resistance of inscriptions Specification: DINÃENÃ61010-1 (VDEÃ0411-01):2020-03 DINÃENÃ62208 (VDEÃ0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DINÃ50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINÃENÃ60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -30°C ... 90°C (<Ã0°C, onlyÃstatic loads) Recommended storage conditions: 23ðC/50Ã% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 24Ãmonths |
| Standards and regulations | Wipe resistance: DINÃENÃ61010-1 (VDEÃ0411-1) |
| Mounting | Mounting type: Assembly with cable ties |
