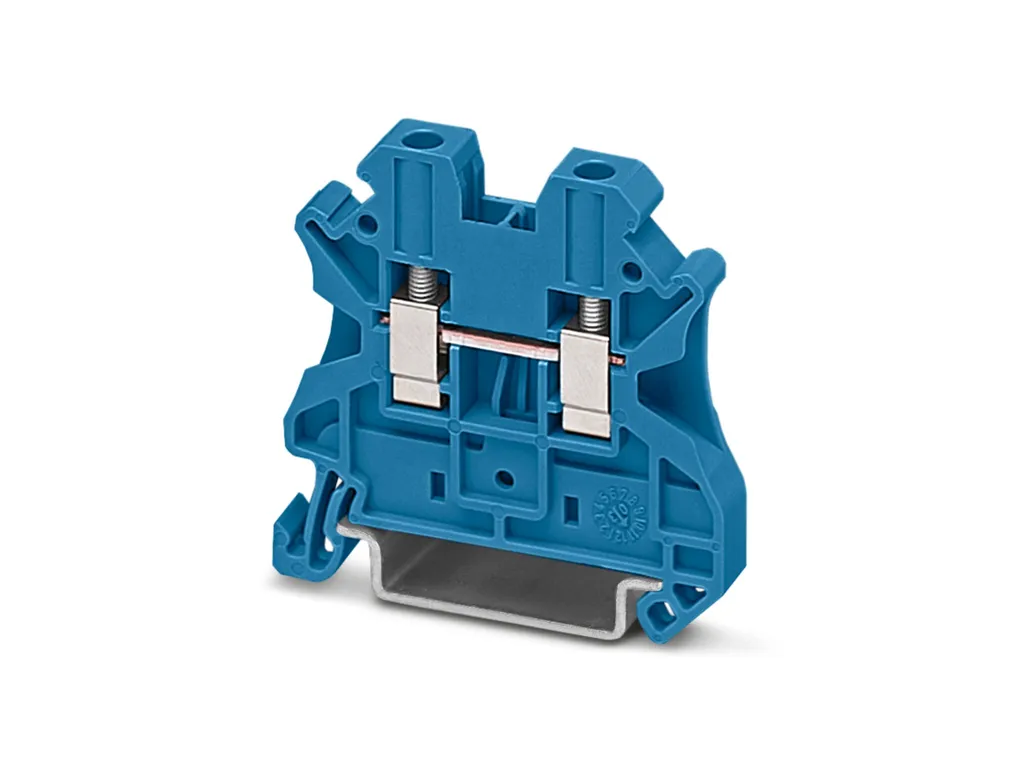

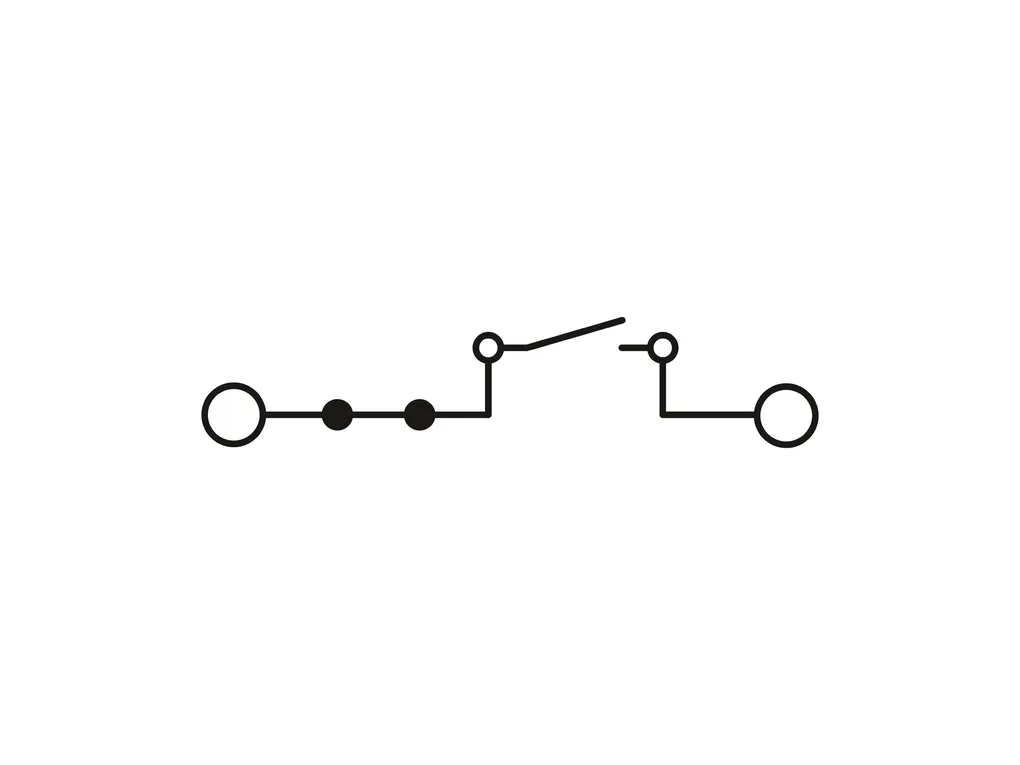

| Product properties | Product type: Disconnect terminal block Area of application: Machine building Plant engineering Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.77 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 4 mm² Level 1 above 1 below 1 Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 9 mm Internal cylindrical gage: A4 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.14 mm² ... 6 mm² Cross section AWG: 26 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 26 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 2.5 mm² Nominal current: 20 A Maximum load current: 20 A (with 6 mm² conductor cross section) Nominal voltage: 500 V Nominal cross section: 2.5 mm² |

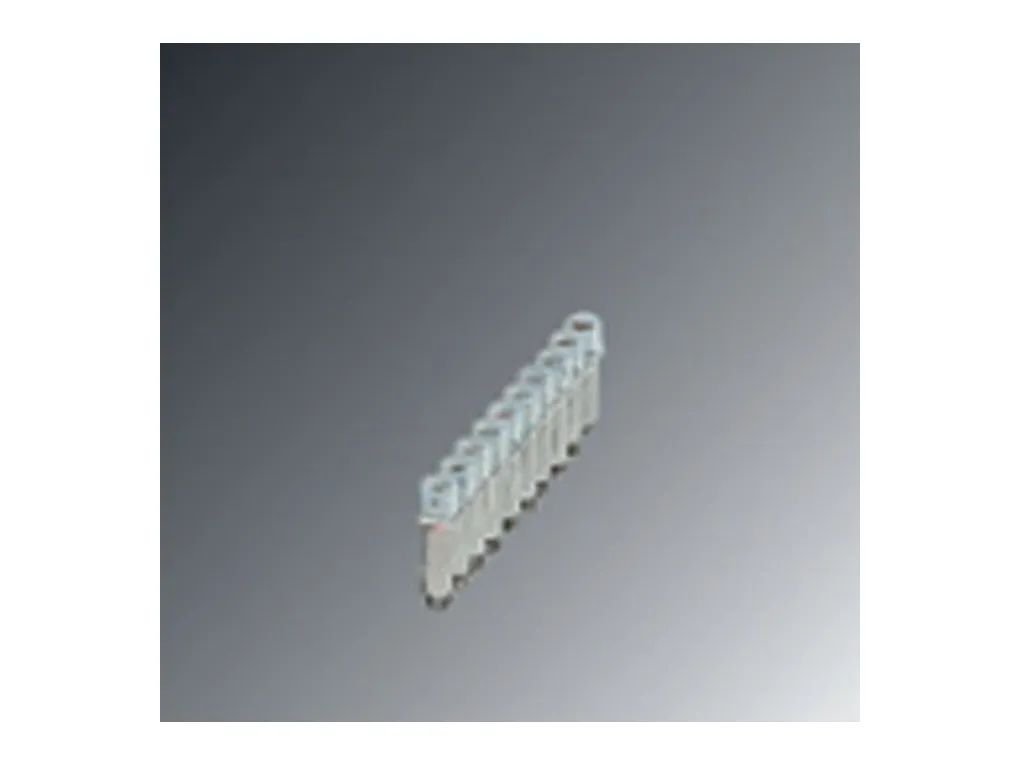

| Ex data | Rated data (ATEX/IECEx) Identification: ïà IIÃ3ÃGÃÃEx ec llC Gc Operating temperature range: -50°C ... 125°C Operating cycles of the disconnect knife: 100 Ex-certified accessories: 3247954 S-MT 3047183 ATP-UT-TWIN 1205053 SZS 0,6X3,5 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35 List of bridges: Plug-in bridgeÃ/ÃFBS 2-6Ã/Ã3030336 Plug-in bridgeÃ/ÃFBS 3-6Ã/Ã3030242 Plug-in bridgeÃ/ÃFBS 4-6Ã/Ã3030255 Plug-in bridgeÃ/ÃFBS 5-6Ã/Ã3030349 Plug-in bridgeÃ/ÃFBS 10-6Ã/Ã3030271 Plug-in bridgeÃ/ÃFBS 20-6Ã/Ã3030365 Bridge data: 20 AÃ/Ã4 mm² Rated voltage: 550 V Rated insulation voltage: 500 V output: (Permanent) Ex level General Rated current: 16 A Maximum load current: 16 A Contact resistance: 0.26 mé Ex connection data General Torque range: 0.6 Nm ... 0.8 Nm Nominal cross section: 4 mm² Rated cross section AWG: 12 Connection capacity rigid: 0.14 mm² ... 6 mm² Connection capacity AWG: 26 ... 10 26 ... 12 Connection capacity flexible: 0.14 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG rigid: 26 ... 16 2 conductors with same cross section, stranded: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG flexible: 26 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm² Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG: 26 ... 12 |
| Dimensions | Width: 6.2 mm Height: 57.8 mm Depth on NSÃ35/7,5: 49.1 mm Depth on NSÃ35/15: 56.6 mm |
| Material specifications | Color: blue Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 |
