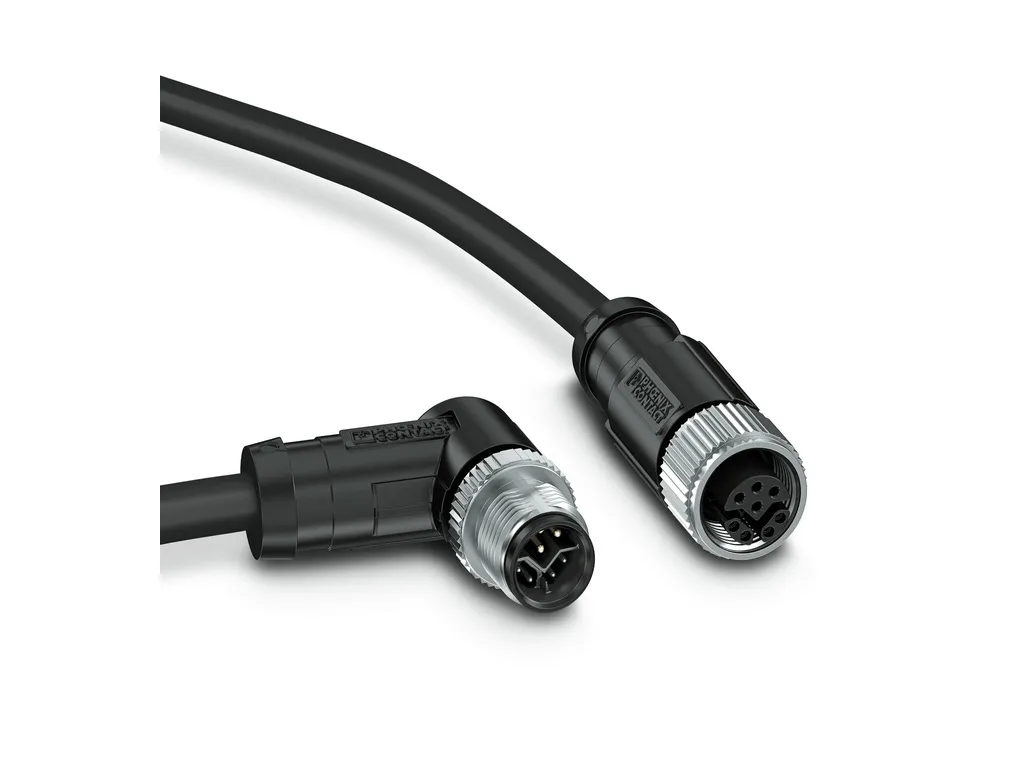

| Product properties | Product type: Data cable preassembled Sensor type: Ethernet hybrid Number of positions: 8 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: Y |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet hybrid CAT5 (IEC 11801), 100 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC (Power and data) 50 VÃDC (Power and data) Nominal current IN: 6 A (Power) 0.5 A (Data) Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connector | Connection 1 Type: Plug straight M12 / IP65/IP67 Number of positions: 8 (4+4) 8 Coding type: Y (Hybrid) Shielded: yes Handle color: black Material: CuZn (Contact) Ni/Au (Contact surface) PA (Contact carrier, data) PA (Contact carrier, power) TPU, hardly inflammable, self-extinguishing (Grip) Zinc die-cast, nickel-plated (Screw connection) Insertion/withdrawal cycles: ââ°¥ 100 100 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Tightening torque: 0.4 Nm Degree of protection: IP65/IP67 Ambient temperature (operation): -25°C ... 90°C Connection 2 Type: Plug angled M12 / IP65/IP67 Number of positions: 8 (4+4) 8 Coding type: Y (Hybrid) Shielded: yes Handle color: black Material: CuZn (Contact) Ni/Au (Contact surface) PA (Contact carrier, data) PA (Contact carrier, power) TPU, hardly inflammable, self-extinguishing (Grip) Zinc die-cast, nickel-plated (Screw connection) Insertion/withdrawal cycles: ââ°¥ 100 Tightening torque: 0.4 Nm Ambient temperature (operation): -25°C ... 90°C Degree of protection: IP65/IP67 |
| Cable/line | Cable length: 20 m Ethernet hybridÃ[94H] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/723c639e2f285a49be5bc66492f2b90f/-S204x204-FJPG UL AWM Style: 20233 (80°C/300 V) Number of positions: 8 Shielded: yes Cable type: Ethernet hybridÃ[94H] Conductor structure: 1x4x AWGÃ26+1x4x AWGÃ18 Conductor structure signal line: 19x 0.10 mm AWG signal line: 26 Conductor cross section: 4x 0.15 mm² (Data) 4x 0.85 mm² (Power) Wire diameter incl. insulation: 1.05 mm (Data) 1.4 mm (Power) External cable diameter: 8.8 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PP (Data) PP (Power) Single wire, color: white/orange, orange, white/green, green, white, blue, brown, black Overall twist: 1 star quad and 4 wires with 2 fillers Optical shield covering: 85 % Insulation resistance: ââ°¥ 5 Gé*km Loop resistance: ââ°¤ 280.00 é/km (Data) ââ°¤ 45.00 é/km (Power) Wave impedance: 100 é ñ15Ãé (4 MHz ... 100 MHz) Working capacitance: nom. 50 nF (per kilometer) Differential impedance: 100 é ñ5Ã% (at 100 MHz) Nominal voltage, cable: ââ°¤ 125 V (Peak value, not for high-power applications) Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 36 mm Smallest bending radius, movable installation: 71 mm Max. bending cycles: 2000000 Tensile strength: 85 N (in accordance with DINÃENÃ50565-1 for flexible installation) 295 N (in accordance with DINÃENÃ50565-1 for fixed installation) Near end crosstalk attenuation (NEXT): 56.3 dB (at 4 Ãà Hz) 50.3 dB (at 10 MHz) 47.2 dB (at 16 MHz) 45.8 dB (at 20ÃÃà Hz) 42.9 dB (at 31.25ÃÃà Hz) 38.4 dB (at 62.5ÃÃà Hz) 35.3 dB (at 100 MHz) Shield attenuation: 6.2 dB (at 4 Ãà Hz) 9.8 dB (at 10 MHz) 12.4 dB (at 16 MHz) 13.9 dB (at 20ÃÃà Hz) 17.6 dB (at 31.25ÃÃà Hz) 25.4 dB (at 62.5ÃÃà Hz) 32.8 dB (at 100 MHz) ââ°¥ 80 dB (30ÃMHzÃ...Ã100ÃMHz) Halogen-free: according to IEC 60754-1 in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with ULÃ1581, SectionÃ1060 in acc. with ULÃ1581, section 1061 in accordance with ULÃ2556, SectionÃ9.3 Resistance to oil: in accordance with IEC 60811-404 According to DIN EN 50363-10-2 Other resistance: Low adhesion Hydrolysis resistance DINÃENÃ50396 Special properties: Free of substances which would hinder coating with paint or varnish Silicone-free Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -30°C ... 70°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP65/IP67 |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-113 |
