1343122 PHOENIX CONTACT -

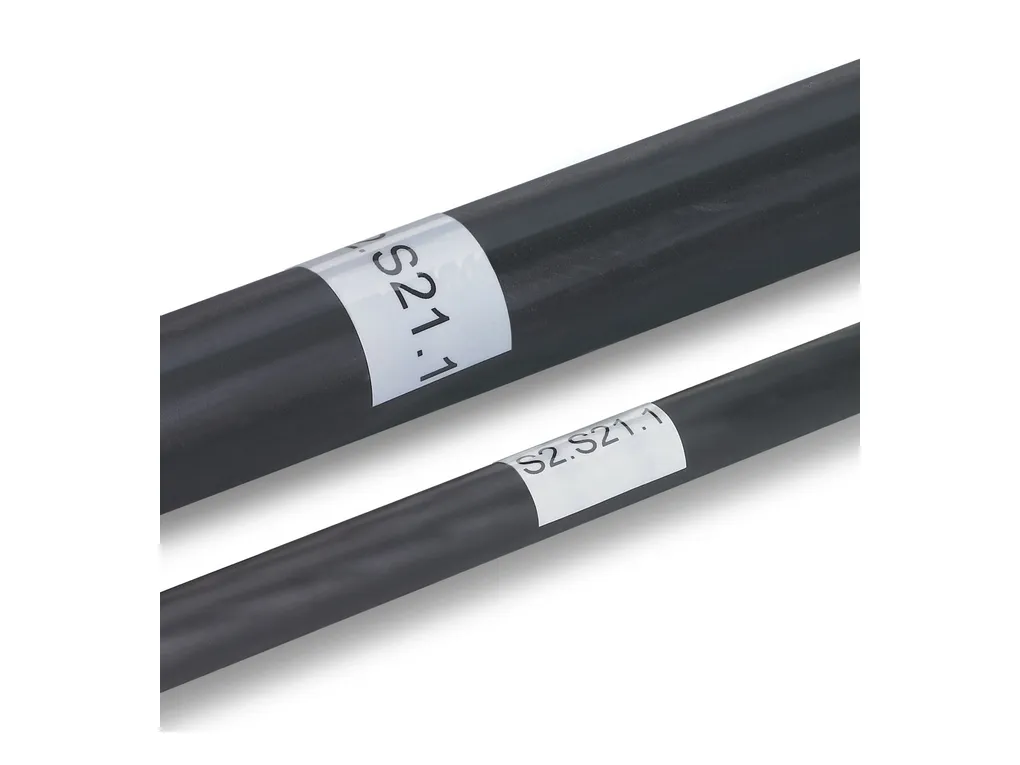

E-WML 6 (25X13)R - Wire-wrap label

Wire-wrap label, Roll, white, unlabeled, can be labeled with: THERMOMARK E.WRAP, THERMOMARK E.300 (D)/600 (D), mounting type: adhesive, cable diameter range: 4 ... 6 mm, Number of individual labels: 4750, text field height: 12.7 mm, text field width: 25.4 mm

Cod. Articolo: 1343122 copia - copy

Cod. Fornitore: 1343122 copia - copy

PHOENIX CONTACT

Product properties	Product type: Conductor marking Type: Label Data management status Article revision: 03 Marking Number of individual labels: 4750 Number of individual labels per row: 1 Identification technology: Thermal transfer for rolls
Dimensions	Width: 25.4 mm Text field width: 25.40 mm Text field height: 12.70 mm Length: 31.8 mm
Material specifications	Foil strength: 80 Ãµm Adhesive strength: 25 Ãµm Adhesive: Acrylic Color: white (RAL 9010) Material: PVC Components: Silicone-free
Cable/line	External cable diameter: 6.10 mm 4 mm ... 6 mm
Environmental and real-life conditions	Test for substances that would hinder coating with paint or varnish Result: Test passed Scratch test for the determining scratch resistance Specification: DIN EN ISO 1518-1:2019-10 (following) Requirements: Ã¢Ã¢°¥ 5 N Result: Test passed Tesafilm test Specification: DIN EN ISO 2409:2013 (following) Result: Test passed UV resistance Specification: ISO 4892-2:2013-03 (following) IEC 60068-2-2:2007-07 DIN EN 60068-2-30:2006-06 (following) Result: Test passed Test duration: 96 h Duration: 96 h Temperature for testing: 100 °C 40 °C Relative humidity: 90 % Wipe resistance of inscriptions Specification: DIN EN 61010-1 (VDE 0411-01):2020-03 DIN EN 62208 (VDE 0660-511):2012-06 (in parts) Isopropyl [CAS No. 67-63-0]: Test passed n-Hexane [CAS No. 110-54-3]: Test passed Water + Petroleum ether [CAS No. 64742-82-1]: Test passed Testing in a condensation changing climate in the presence of sulfur dioxide Specification: ISO 22479:2019-05 Result: Test passed Procedure: Method B Cycles: 2 Salt spray test Specification: DIN EN 60068-2-11:2000-02 Result: Test passed Test duration: 96 h Ambient conditions Ambient temperature (operation): -40 °C ... 80 °C Ambient temperature (assembly): + 15 °C ... 35 °C Recommended ambient temperature (storage/transport): 20 °C ... 25 °C Recommended humidity (storage/transport): 40 % ... 50 % (Storage in a dry and dark place in the original packaging is recommended) Shelf life: 2 years
Standards and regulations	Wipe resistance: DIN EN 61010-1 (VDE 0411-1)
Mounting	Mounting type: adhesive
