| Input data | Control input (configurable) Rem: Output power ON/OFF (SLEEP MODE) Default: Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) AC operation Network type: Star network Nominal input voltage range: 3x 400 V AC ... 500 V AC 2x 400 V AC ... 500 V AC Input voltage range: 3x 400 V AC ... 500 V AC -20 % ... +10 % 2x 400 V AC ... 500 V AC -10 % ... +10 % Typical national grid voltage: 400 V AC 480 V AC Voltage type of supply voltage: AC Inrush current: typ. 2 A (at 25 °C) Inrush current integral (I2t): < 0.1 A2s Inrush current limitation: 2 A (after 1 ms) AC frequency range: 50 Hz ... 60 Hz -10 % ... +10 % Frequency range (fN): 50 Hz ... 60 Hz -10 % ... +10 % Mains buffering time: typ. 33 ms (3x 400 V AC) typ. 33 ms (3x 480 V AC) Current consumption: 3x 0.99 A (400 V AC) 3x 0.81 A (480 V AC) 2x 1.62 A (400 V AC) 2x 1.37 A (480 V AC) 3x 0.8 A (500 V AC) 2x 1.23 A (500 V AC) Nominal power consumption: 541 VA Protective circuit: Transient surge protection; Varistor, gas-filled surge arrester Power factor (cos phi): 0.94 Switch-on time: < 1 s Typical response time: 300 ms (from SLEEP MODE) Recommended breaker for input protection: 3x 4 A ... 20 A (Characteristic B, C or comparable) Recommended fuse for input protection: ≥ 300 V AC Discharge current to PE: < 3.5 mA 1.7 mA (550 V AC, 60 Hz) DC operation Nominal input voltage range: ± 260 V DC ... 300 V DC Input voltage range: ± 260 V DC ... 300 V DC -13 % ... +30 % Voltage type of supply voltage: DC Current consumption: 1.23 A (± 260 V DC) 1.06 A (±300 V DC) Recommended breaker for input protection: 1x 6 A (10 x 38 mm, 30 kA L/R = 2 ms) Recommended fuse for input protection: ≥ 1000 V DC |
| Output data | Efficiency: typ. 93.9 % (400 V AC) typ. 93.8 % (480 V AC) Output characteristic: U/I Advanced Smart HICCUP FUSE MODE Nominal output voltage: 24 V DC Setting range of the output voltage (USet): 24 V DC ... 29.5 V DC (constant capacity) Nominal output current (IN): 20 A Static Boost (IStat.Boost): 25 A Dynamic Boost (IDyn.Boost): 30 A (5 s) Selective Fuse Breaking (ISFB): 120 A (15 ms) Magnetic circuit breaker tripping: A1...A16 / B2...B13 / C1...C6 / Z1...Z16 Derating: > 60 °C ... 70 °C (2.5 %/K) Feedback voltage resistance: ≤ 35 V DC Protection against overvoltage at the output (OVP): ≤ 32 V DC Control deviation: < 0.5 % (Static load change 10 % ... 90 %) < 3 % (Dynamic load change 10 % ... 90 %, (10 Hz)) < 0.25 % (change in input voltage ±10 %) Residual ripple: < 60 mVPP (with nominal values) Short-circuit-proof: yes No-load proof: yes Output power: 480 W 600 W 720 W Apparent power: 686 VA (400 V, UOUT = 24 V, IOUT = stat. Boost) 698 VA (480 V, UOUT = 24 V, IOUT = stat. Boost) Maximum no-load power dissipation: < 7 W (400 V AC) < 7 W (480 V AC) Power loss nominal load max.: < 32 W (400 V AC) < 33 W (480 V AC) Power dissipation SLEEP MODE: < 5 W (400 V AC) < 5 W (480 V AC) Crest factor: typ. 1.78 (400 V AC) typ. 2.1 (480 V AC) Rise time: < 80 ms (UOut = 10 % ... 90 %) Connection in parallel: yes, for redundancy and increased capacity Connection in series: yes Signal Signal ground SGnd: Reference potential for Out1, Out2, and Rem Signal Out 1 (configurable) Digital: 24 V DC 20 mA Default: 24 V DC 20 mA 24 V DC for UOut > 0.9 x USet Signal Out 2 (configurable) Digital: 24 V DC 20 mA Analog: 4 mA ... 20 mA ±5 % (Load ≤400 Ω) Default: 24 V DC 20 mA 24 V DC for POut < PN Signal relay 13/14 (configurable) Default: closed (Uout > 0.9 USet) Digital: 24 V DC 1 A 30 V AC/DC 0.5 A |
| Connection data | Input Connection method: Screw connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 4 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 4 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 4 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 10 Stripping length: 8 mm Tightening torque, min: 0.5 Nm Tightening torque max: 0.6 Nm Output Connection method: Screw connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 6 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 4 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 4 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.25 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 4 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 10 Stripping length: 8 mm Tightening torque, min: 0.5 Nm Tightening torque max: 0.6 Nm Signal Connection method: Push-in connection Conductor cross section, rigid min.: 0.2 mm² Conductor cross section, rigid max.: 1 mm² Conductor cross section flexible min.: 0.2 mm² Conductor cross section flexible max.: 1.5 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, min.: 0.2 mm² Single conductor/flexible terminal point with ferrule with plastic sleeve, max.: 0.75 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, min.: 0.2 mm² Single conductor/flexible terminal point with ferrule without plastic sleeve, max.: 1.5 mm² Conductor cross section AWG min.: 24 Conductor cross section AWG max.: 16 Stripping length: 8 mm |
| Signaling | Types of signaling: LED Floating signal contact Active signal output Out1 (digital, configurable) Active signal output Out2 (analog, configurable) Remote contact Signal ground SGnd Signal output POut: > 100 % (LED lights up yellow, output power > 480 W) > 75 % (LED lights up green, output power > 360 W) > 50 % (LED lights up green, output power > 240 W) UOut: > 0.9 x USet (LED lights up green) < 0.9 x USet (LED flashes green) |
| Electrical properties | Number of phases: 3.00 Insulation voltage input/output: 4 kV AC (type test) 2.4 kV AC (routine test) Insulation voltage output / PE: 0.5 kV DC (type test) 0.5 kV DC (routine test) Insulation voltage input / PE: 3.5 kV AC (type test) 2.4 kV AC (routine test) Switching frequency: 90.00 kHz ... 110.00 kHz (Auxiliary converter stage) 56.00 kHz ... 500.00 kHz (Main converter stage) 25.00 kHz ... 500.00 kHz (PFC stage) |
| Product properties | Product type: Power supply Product family: QUINT POWER MTBF (IEC 61709, SN 29500): > 985000 h (25 °C) > 638000 h (40 °C) > 311000 h (60 °C) Environmental protection directive: RoHS Directive 2011/65/EU WEEE Reach Insulation characteristics Protection class: I Degree of pollution: 2 Life expectancy (electrolytic capacitors) Current: 10 A Temperature: 40 °C Time: 344000 h Additional text: 400 V AC Life expectancy (electrolytic capacitors)âۉ€¹ Current: 10 A Temperature: 40 °C Time: 320000 h Additional text: 480 V AC Life expectancy (electrolytic capacitors)âۉ€¹Ãƒ¢Ã¢‚¬Ã¢€¹ Current: 20 A Temperature: 25 °C Time: 445000 h Additional text: 400 V AC Life expectancy (electrolytic capacitors)âۉ€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹ Current: 20 A Temperature: 25 °C Time: 432000 h Additional text: 480 V AC Life expectancy (electrolytic capacitors)âۉ€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹ Current: 20 A Temperature: 40 °C Time: 157000 h Additional text: 400 V AC Life expectancy (electrolytic capacitors)âۉ€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹Ãƒ¢Ã¢‚¬Ã¢€¹ Current: 20 A Temperature: 40 °C Time: 152000 h Additional text: 480 V AC |

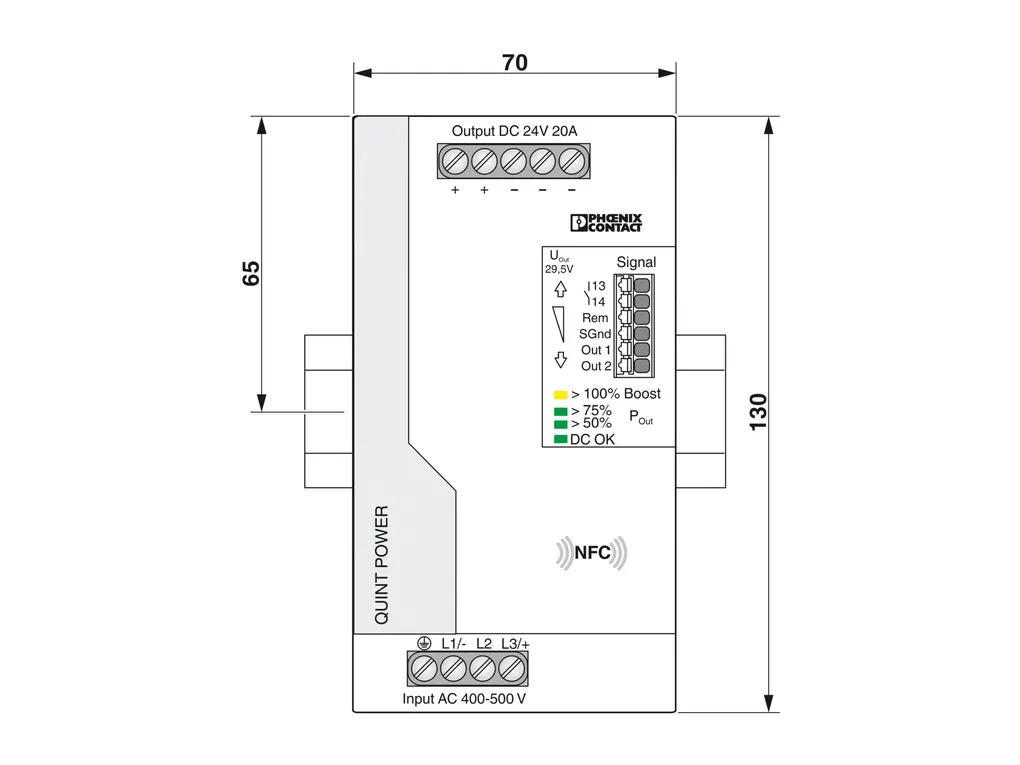

| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/170842/full/b1500?format=jpg Width: 70 mm Height: 130 mm Depth: 125 mm Installation dimensions Installation distance right/left: 5 mm / 5 mm Installation distance top/bottom: 50 mm / 50 mm Alternative assembly Width: 122 mm Height: 130 mm Depth: 73 mm |
| Mounting | Mounting type: DIN rail mounting Assembly note: alignable: PN ≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN <50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom Mounting position: horizontal DIN rail NS 35, EN 60715 With protective coating: yes |
| Material specifications | Flammability rating according to UL 94 (housing / terminal blocks): V0 Housing material: Metal Hood version: Stainless steel X6Cr17 Side element version: Aluminum |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) Ambient temperature (storage/transport): -40 °C ... 85 °C Ambient temperature (start-up type tested): -40 °C Maximum altitude: ≤ 5000 m (> 2000 m, observe derating) Climatic class: 3K3 (in acc. with EN 60721) Max. permissible relative humidity (operation): ≤ 95 % (at 25 °C, non-condensing) Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation): 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) |
| Standards and regulations | Rail applications: EN 50121-3-2 EN 50121-4 EN 50121-5 IEC 62236-3-2 IEC 62236-4 IEC 62236-5 HART FSK Physical Layer Test Specification Compliance: Output voltage UOut compliant Standard âۉ€œ Limitation of mains harmonic currents: EN 61000-3-2 Standard - Electrical safety: IEC 61010-2-201 (SELV) Standard âۉ€œ Safety extra-low voltage: IEC 61010-1 (SELV) IEC 61010-2-201 (PELV) Standard - Safe isolation: IEC 61558-2-16 IEC 61010-2-201 Standard - safety for equipment for measurement, control, and laboratory use: IEC 61010-1 Standard - Safety of transformers: EN 61558-2-16 Approval - requirement of the semiconductor industry with regard to mains voltage dips: SEMI F47-0706, EN 61000-4-11 Overvoltage category EN 61010-1: II (≤ 2000 m) EN 62477-1: III (≤ 2000 m) |
| Approvals | CSA: CAN/CSA-C22.2 No. 60950-1-07 CSA-C22.2 No. 107.1-01 Shipbuilding approval: DNV GL, PRS, BV, LR, ABS SIQ: BG (type approved) UL approvals: UL Listed UL 508 UL/C-UL Recognized UL 60950-1 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
| EMC data | EMC requirements for noise emission: EN 61000-6-3 EN 61000-6-4 EMC requirements for noise immunity: EN 61000-6-1 EN 61000-6-2 EMC requirements, power plant: IEC 61850-3 EN 61000-6-5 |
