1346838 PHOENIX CONTACT -

AGK PT 6X2,5/M6 - Pick-off terminal block

Pick-off terminal block, nom. voltage: 1000 V, nominal current: 24 A, number of connections: 7, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.34 mm² - 4 mm², Bolt connection, Line contact, mounting type: on base element, color: gray

Cod. Articolo: 1346838 copia - copy

Cod. Fornitore: 1346838 copia - copy

PHOENIX CONTACT

Notes	General Note: For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DIN VDE 0100-430:2010-10) section 433.2 ff must be observed! The maximum load current of a single clamping unit must not be exceeded.

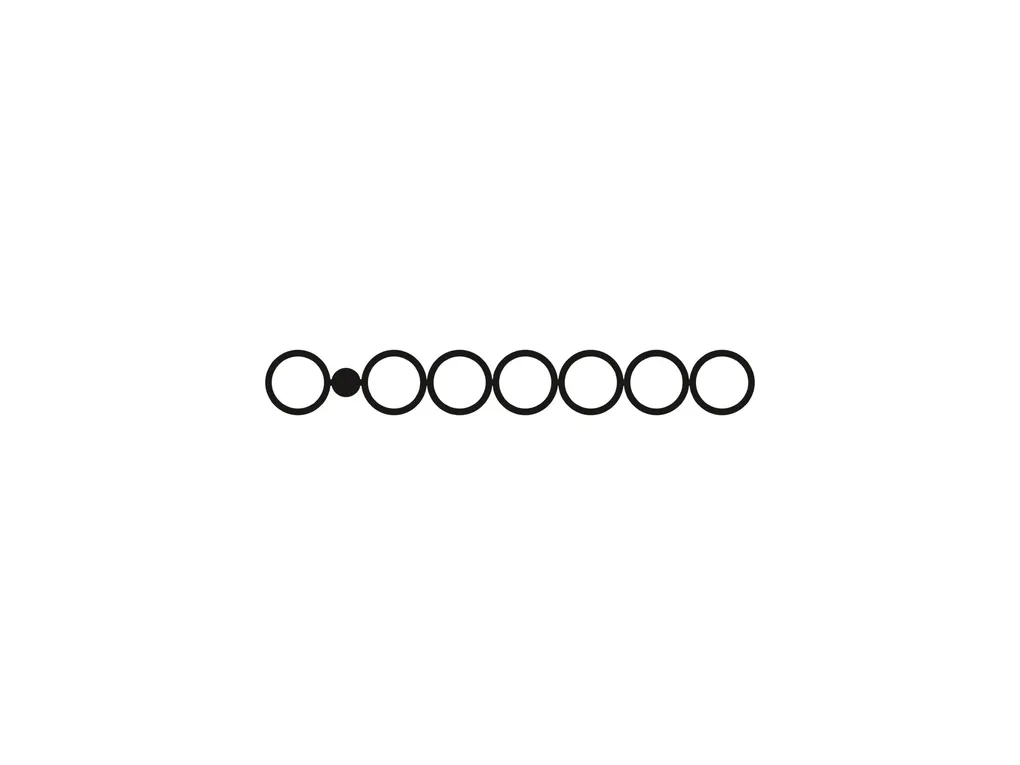

Product properties	Product type: Pick-off terminal Number of connections: 7 Number of rows: 1 Potentials: 1 Data management status Article revision: 00 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.31 W
Connection data	Number of connections per level: 7 Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A3 B2 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.34 mm² ... 4 mm² Cross section AWG: 20 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.34 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 20 ... 14 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 2.5 mm² Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.34 mm² ... 0.5 mm² Nominal current: 24 A Maximum load current: 32 A (with 4 mm² conductor cross-section) Nominal voltage: 1000 V (when used with separating plate HV M12/2-TP) Nominal cross section: 2.5 mm² Line contact Screw thread: M6 Note: Connection bolts Tightening torque: 3 ... 6 Nm Connection in acc. with standard: IEC 60947-7-1 Connection cross sections directly pluggable Conductor cross section rigid: 0.5 mm² ... 4 mm² Conductor cross section, rigid [AWG]: 20 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 2.5 mm²
Dimensions	Width: 15.7 mm Height: 53.9 mm Depth: 32.9 mm Hole diameter: 6.2 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60 °C Relative insulation material temperature index (Elec., UL 746 B): 130 °C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤ 45 K Result: Test passed Short-time withstand current 2.5 mm²: 0.3 kA Power-frequency withstand voltage Test voltage setpoint: 2.2 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: No
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier Result: Test passed Test for conductor damage and slackening Rotation speed: 9 rpm Revolutions: 135 Conductor cross section/weight: 0.34 mm² / 0.3 kg 2.5 mm² / 0.7 kg 4 mm² / 0.9 kg Result: Test passed
Environmental and real-life conditions	Aging Temperature cycles: 192 Result: Test passed Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DIN EN 50155 (VDE 0115-200):2018-05 Spectrum: Service life test category 2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DIN EN 50155 (VDE 0115-200):2018-05 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: on base element
