1350017 PHOENIX CONTACT -

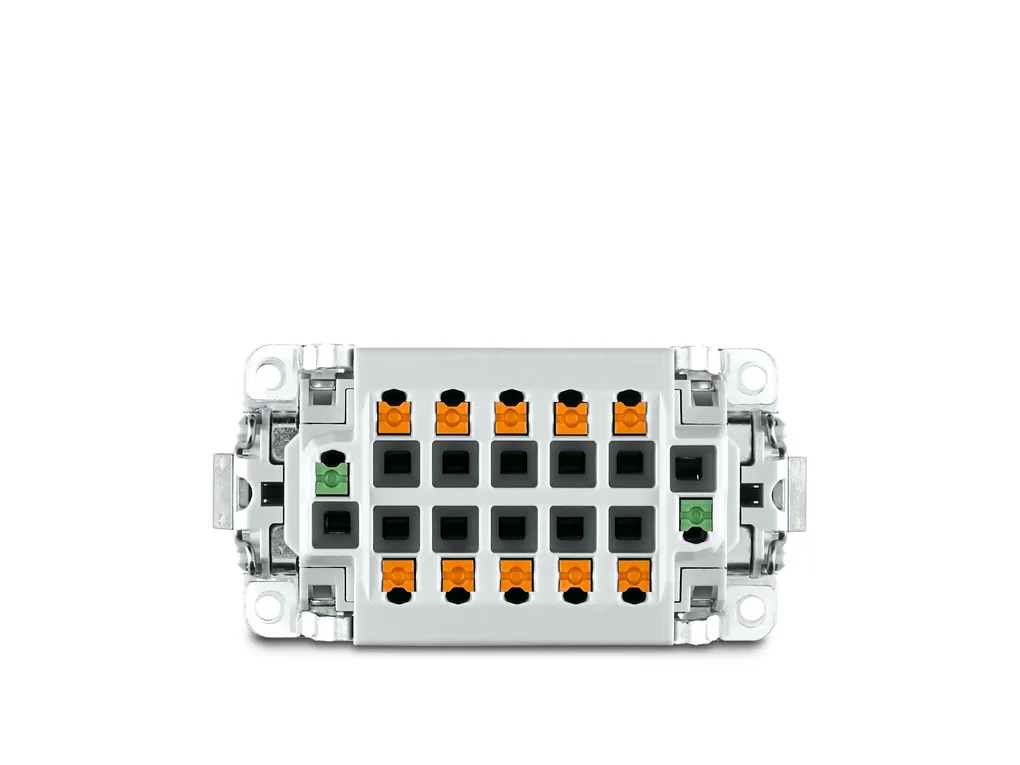

HC-B10-I-PT-CI-F - Contact insert

Contact insert, number of positions: 10+2 PE, size: B10, number of connections per position: 1, Socket, Push-in connection, 500 V, 16 A, 0.14 mm²...2.5 mm², application: Power, tool-free Click-in mounting

Cod. Articolo: 1350017 copia - copy

Cod. Fornitore: 1350017 copia - copy

PHOENIX CONTACT

Notes	General: only use flexible conductors with ferrules Connectors may be operated only when there is no load/voltage.
Mounting	Mounting type: tool-free snap-in Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required tool-free snap-in into all plastic and metal housings of the HEAVYCON STANDARD and EVO series, and into metal housings of the HEAVYCON ADVANCED series Connection method: Push-in connection
Product properties	Type: B10 Product type: Contact insert with a fixed no. of positions Number of positions: 10 Connection profile: 10+2 PE Contact numbering: 1 - 10 Application: Power Number of connections per position: 1 Contact material type: rolled Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d55ab482694ad8429c82a280c90b65f4/-S204x204-FJPG Width: 34 mm Height: 37 mm Length: 64 mm Drill hole distance, horizontal: 57 mm Drill hole distance, vertical: 27 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Push-in connection Number of connections per position: 1 Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Stripping length: 8 mm ... 10 mm
Electrical properties	Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A (power contacts)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag/Sn (tarnish protection) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
