1375409 PHOENIX CONTACT -

PT 10-TWIN RD - Feed-through terminal block

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: red

Cod. Articolo: 1375409 copia - copy

Cod. Fornitore: 1375409 copia - copy

PHOENIX CONTACT

Product properties	Product type: Multi-conductor terminal block Area of application: Railway industry Machine building Plant engineering Number of connections: 3 Number of rows: 1 Potentials: 1 Data management status Article revision: 02 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.82 W

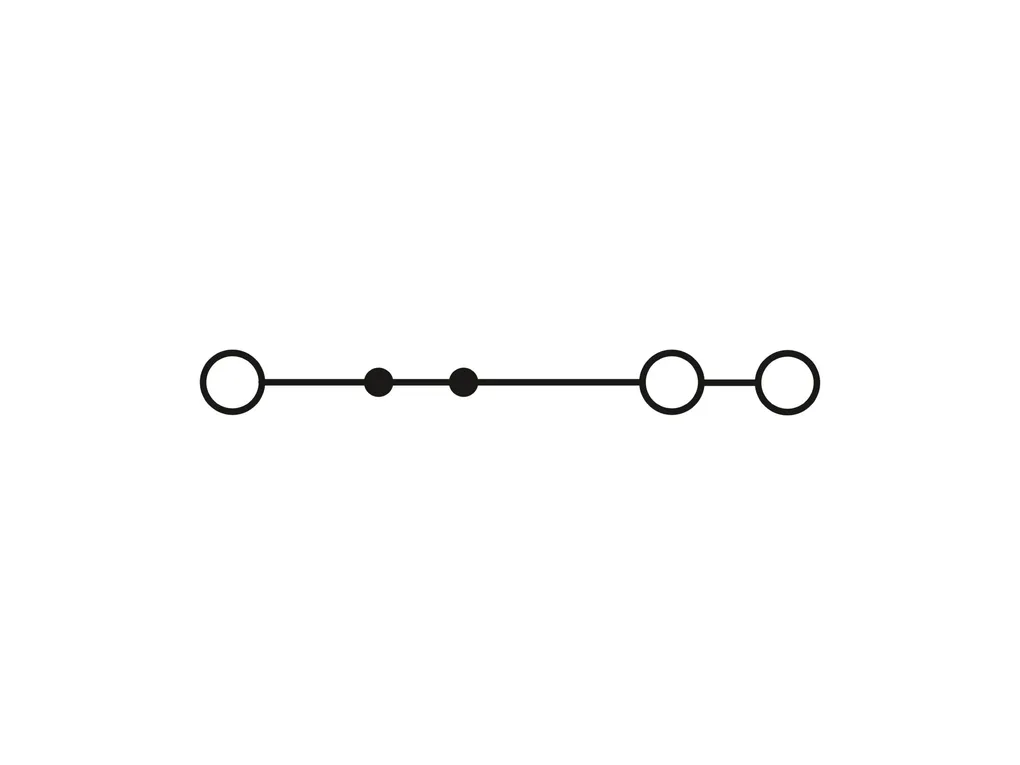

Connection data	Number of connections per level: 3 Nominal cross section: 10 mm² Stripping length: 18 mm ... 20 mm Internal cylindrical gage: A6 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 16 mm² Conductor cross section, flexible [AWG]: 20 ... 6 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 4 mm² Nominal current: 57 A Maximum load current: 70 A (with a 16 mm² conductor cross section, rigid) Nominal voltage: 1000 V Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 16 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 4 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 10 mm²
Dimensions	Width: 10.2 mm End cover width: 2.2 mm Height: 88.9 mm Depth: 49.5 mm Depth on NS 35/7,5: 50.5 mm Depth on NS 35/15: 58 mm
Material specifications	Color: red (RAL 3001) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NS 35/15
