1378102 PHOENIX CONTACT -

DD21PC 0,85/12-2,5-Z - PCB connector

PCB connector, color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact connection type: Socket, number of rows: 2, number of positions: 12, product range: DD21PC 0,85/, pitch: 2.5 mm, connection method: Crimp connection, conductor/PCB connection direction: 0°, locking clip: - without locking clip, plug-in system: CONNEXIS DD, locking: Snap-in locking, mounting: Self-locking flange, type of packaging: packed in cardboard

Cod. Articolo: 1378102 copia - copy

Cod. Fornitore: 1378102 copia - copy

PHOENIX CONTACT

Product properties	Product line: CONNEXIS Connectors XS Product type: PCB connector Product family: DD21PC 0,85/ Number of positions: 12 Pitch: 2.5 mm Number of rows: 2
Electrical properties	Nominal current I_N: 5 A Nominal voltage U_N: 160 V Degree of pollution: 3 Contact resistance: 2.6 mÃ© Rated voltage (III/3): 40 V Rated surge voltage (III/3): 2.5 kV Rated voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV Rated voltage (II/2): 200 V Rated surge voltage (II/2): 2.5 kV
Connection data	Interlock Locking type: Snap-in locking Mounting flange: Self-locking flange Conductor connection Connection method: Crimp connection Conductor/PCB connection direction: 0° Conductor cross section AWG: 28 ... 18 Stripping length: 3 mm
Material specifications	Material data - housing Color (Housing): black (9005) Insulating material: PBT Insulating material group: II CTI according to IEC 60112: 400 Ã¢Ã¢°¤ÃCTI <Ã600 Flammability rating according to UL 94: V0
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG Pitch: 2.5 mm Width [w]: 16.4 mm Height [h]: 14.8 mm Length [l]: 20 mm
Notes	Note on the contact: These connectors conform to DINÃENÃ61984, connectors without switching capacity (COC). When used for their intended purpose, they must not be plugged in or disconnected live or under load.
Mechanical tests	Tensile strength of crimp connections Result: Test passed Conductor cross section/conductor type/tractive force setpoint/actual value: AWG 28 / flexible / > 11 N Insertion and withdrawal forces Result: Test passed No. of cycles: 25 Insertion strength per pos. approx.: 6 N Withdraw strength per pos. approx.: 6 N Resistance of inscriptions Specification: IEC 60068-2-70:1995-12 Result: Test passed Polarization and coding Specification: IEC 60512-13-5:2006-02 Result: Test passed Visual inspection Specification: IEC 60512-1-1:2002-02 Result: Test passed Dimension check Specification: IEC 60512-1-2:2002-02 Result: Test passed

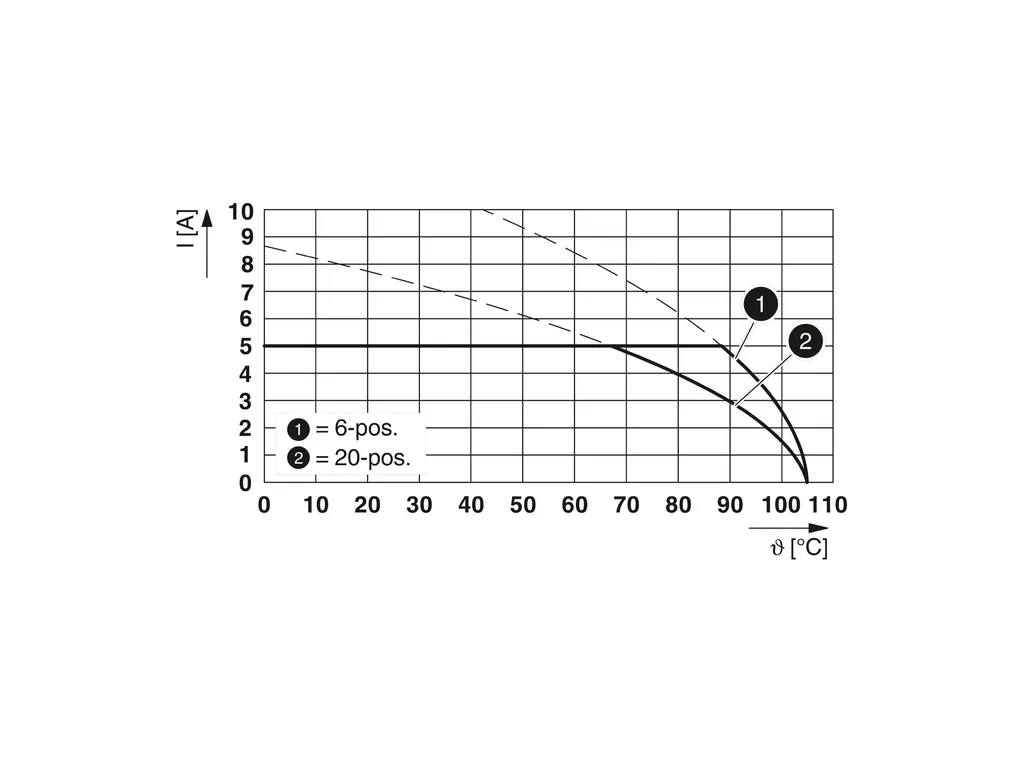

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 50Ãm/s² (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Durability test Specification: IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level: 2.95 kV Contact resistance R₁: 2.6 mÃ© Contact resistance R₂: 2.6 mÃ© Insertion/withdrawal cycles: 25 Climatic test Specification: ISOÃ6988:1985-02 Corrosive stress: 0.2 dm³SO₂on 300 dm³/40°C/1 cycle Thermal stress: 105Ã°C/168Ãh Power-frequency withstand voltage: 1.39 kV Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 30g Shock duration: 11Ãms Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -55°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Electrical tests	Thermal test \| Test group C Specification: IEC 60512-5-1:2002-02 Tested number of positions: 20 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60664-1:2020-05 Insulating material group: II Comparative tracking index (IEC 60112): CTI Ã¢Ã¢°¥400 to <600 Rated insulation voltage (III/3): 40 V Rated surge voltage (III/3): 2.5 kV minimum clearance value - non-homogenous field (III/3): 1.5 mm minimum creepage distance (III/3): 1.6 mm Rated insulation voltage (III/2): 160 V Rated surge voltage (III/2): 2.5 kV minimum clearance value - non-homogenous field (III/2): 1.5 mm minimum creepage distance (III/2): 1.5 mm Rated insulation voltage (II/2): 200 V Rated surge voltage (II/2): 2.5 kV minimum clearance value - non-homogenous field (II/2): 1.5 mm minimum creepage distance (II/2): 1.5 mm
Packaging specifications	Type of packaging: packed in cardboard
