| Product properties | Product type: Sensor/actuator cable Number of positions: 3 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Material: PK PA Flammability rating according to UL 94: V0 Seal material: FKM Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Material for screw connection: Brass, nickel-plated |
| Electrical properties | Contact resistance: ≤ 5 mΩ Insulation resistance: ≥ 100 MΩ Nominal voltage UN: 250 VÂAC 250 VÂDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: M12 push-pull connectors |
| Connector | Connection 1 Type: Plug straight M12 Push Pull Number of positions: 3 Coding type: A Locking type: Push Pull Connection 2 Type: Socket straight M12 Push Pull Number of positions: 3 Coding type: A Locking type: Push Pull |

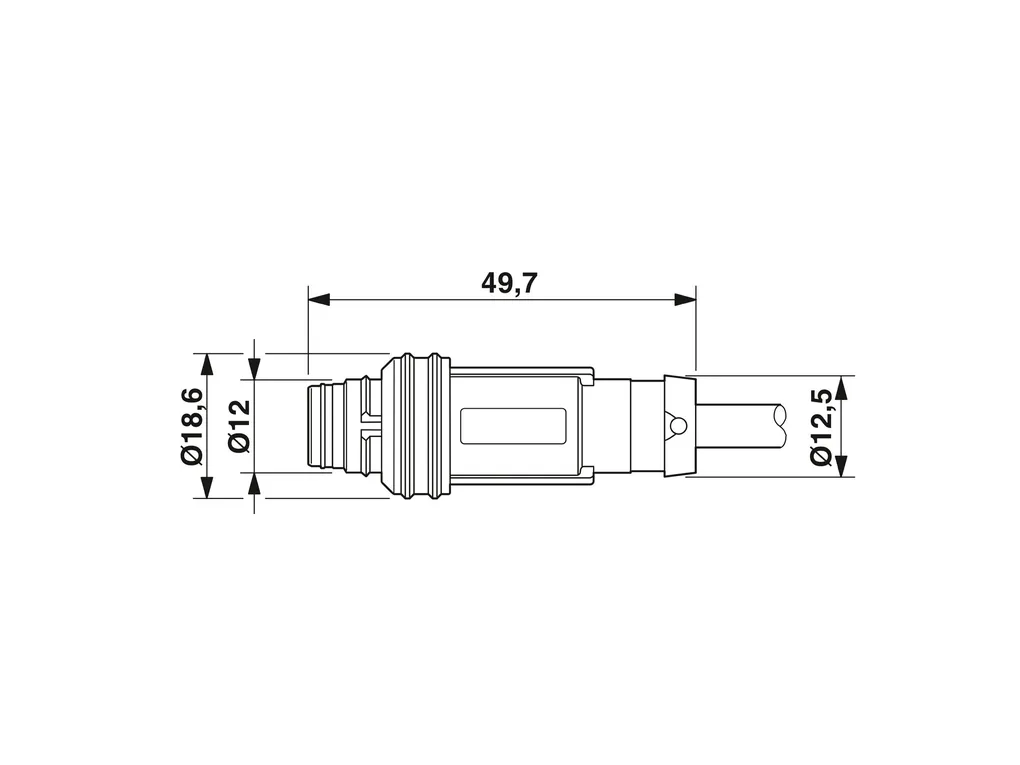

| Cable/line | Cable length: 3 m PUR halogen-free blackÂ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f3d3823ef3ae574a915ce4acc84d98da/-S204x204-FJPG Cable weight: 23 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÂ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 3x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm ±0.02Âmm (Signal line) External cable diameter: 3.85 mm ±0.15Âmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue, black Thickness, insulation: ≥ 0.21 mm (Core insulation) approx. 0.5 mm (Outer cable sheath) Overall twist: 3 wires, twisted Max. conductor resistance: max. 58 Ω/km (at 20°C) Insulation resistance: ≥ 100 GΩ*km (at 20°C) Nominal voltage, cable: ≤ 300 V Test voltage: ≥ 3000 V Smallest bending radius, fixed installation: 19 mm Smallest bending radius, movable installation: 38 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÂVDEÂ0472 partÂ815 Flame resistance: in accordance with ULÂ758/1581 FT2 DINÂENÂ60332-2-2 (20Âs) Resistance to oil: in accordance with DINÂENÂ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÂENÂISOÂ4892-2-A Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12-Push-Pull Standards/specifications: IEC 61076-2-010 |
