| Product properties | Product type: Sensor/actuator cable Application: Standard Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 V AC 250 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: no Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm |

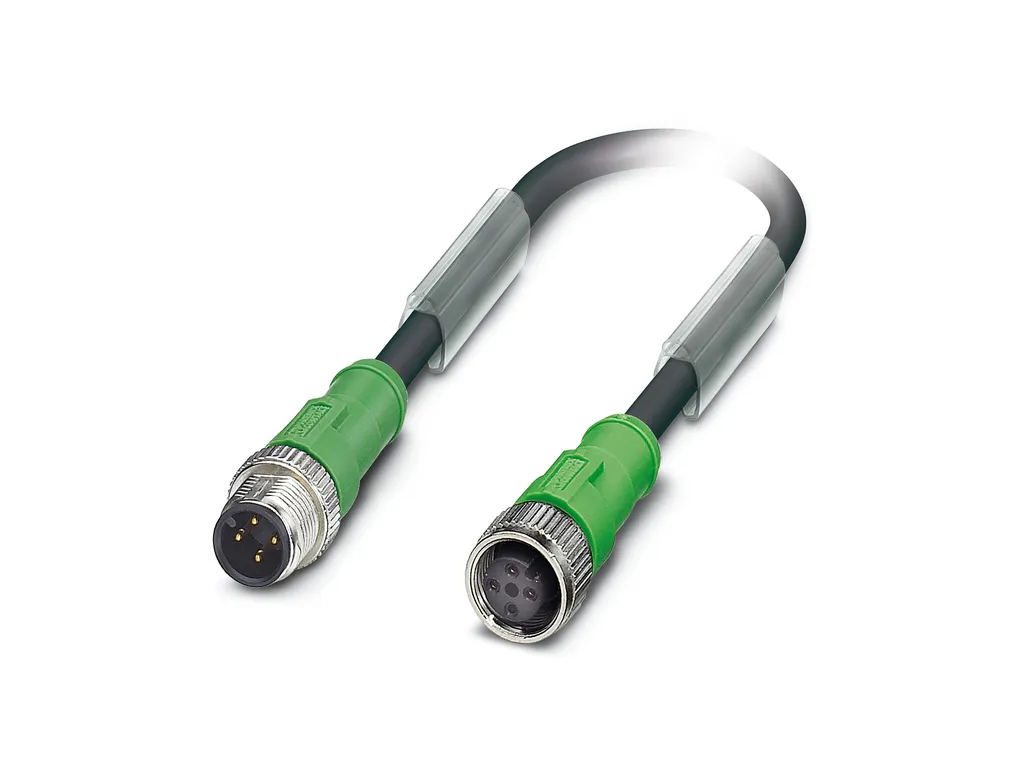

| Connector | Connection 1 Type: Plug straight M12 Push Pull Number of positions: 4 Locking type: Push Pull Connection 2 Type: Socket straight M12 Number of positions: 4 Coding type: A |
| Cable/line | Cable length: 1.5 m PUR halogen-free black [PUR] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/8950/full/b1500?format=jpg Shielded: no UL AWM Style: 20549 / 10493 (80 °C/300 V) Cable weight: 30 kg/km Cable type: PUR halogen-free black Short symbol: Li9Y11Y-HF Cable type (abbreviation): PUR External cable diameter: 4.20 mm ñ0.15 mm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Thickness, outer sheath: approx. 0.50 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² (Signal line) Material wire insulation: PP Thickness, insulation: ââ°¥ 0.21 mm Wire diameter incl. insulation: 1.27 mm ñ0.02 mm Single wire, color: brown, white, blue, black Overall twist: 4 wires, twisted Nominal voltage, cable: ââ°¤ 300 V Test voltage, cable: ââ°¥ 3000 V Cable resistance: ââ°¤ 58 é/km Cable insulation resistance: ââ°¥ 1 Gé*km Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Number of bending cycles: 10000000 Minimum bending radius, drag chain applications: 10 x D Traversing path: 10 m Traversing rate: 3 m/s Acceleration: 10 m/s² Halogen-free: in accordance with DIN VDE 0472 part 815 in accordance with DIN EN 50267-2-1 Resistance to oil: in accordance with DIN EN 60811-2-1 Flame resistance: in accordance with UL 758/1581 FT2 DIN EN 60332-2-2 (20 s) Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant (in accordance with DIN EN ISO 4892-2-A) Low adhesion abrasion-resistant Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish flexible Ambient temperature (operation): -25 °C ... 80 °C (Cable, flexible installation) -40 °C ... 80 °C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket) |
| Standards and regulations | Standard designation: M12-Push-Pull Standards/specifications: IEC 61076-2-010 |
