| Product properties | Product type: Sensor/actuator cable Number of positions: 4 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Stainless steel |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A |
| Signaling | Status display: No Status display present: No |

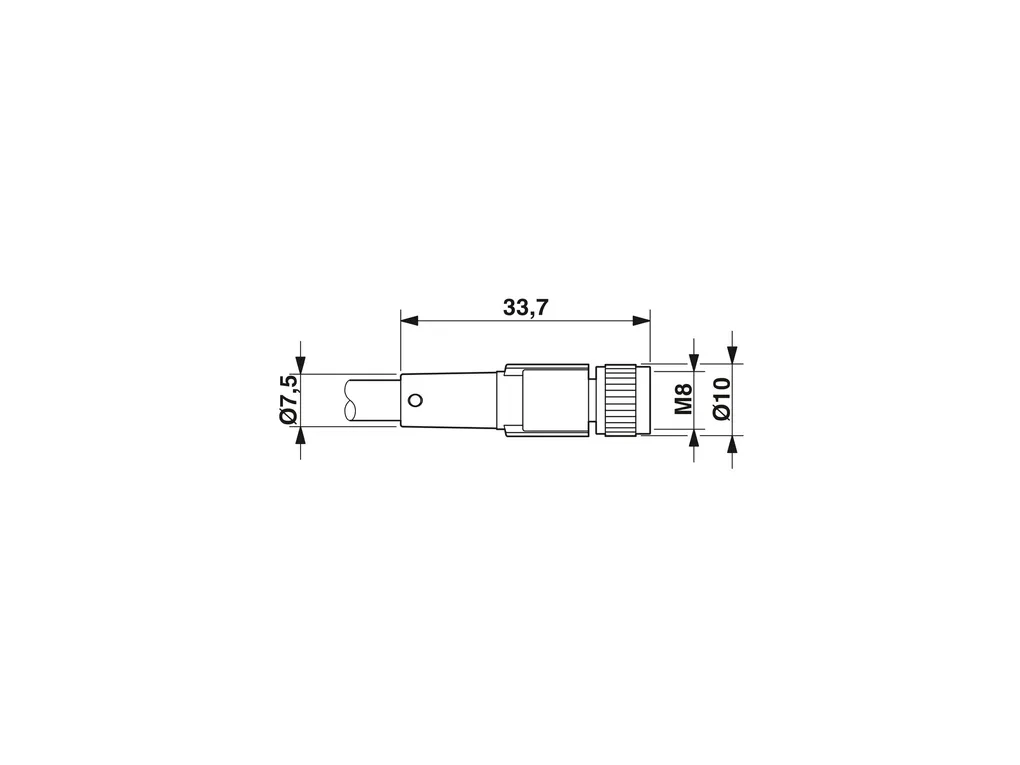

| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M8 Number of positions: 4 Coding type: A |
| Cable/line | Cable length: 15 m PVC blackÃ[PVC] Cable weight: 38 kg/km Number of positions: 4 Shielded: yes Cable type: PVC blackÃ[PVC] Conductor structure signal line: 32x 0.10 mm AWG signal line: 22 Wire diameter incl. insulation: 1.19 mm ñ0.02Ãmm External cable diameter: 5 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) ââ°¥ 0.65 mm (Outer cable sheath) Overall twist: 4 wires, twisted Optical shield covering: 85 % Max. conductor resistance: max. 78 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: 300 V Test voltage: 3000 V Ambient temperature (operation): -30°C ... 80°C (cable, fixed installation) -15°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
