PHOENIX CONTACT 1401425
PHOENIX CONTACT 1401425
PHOENIX CONTACTNon disponibile

SACCBP-M12FSB-2CON-M16/2,0-915 - Device connector, rear mounting

Device connector, rear mounting, 5-position, PUR, green RAL 6018, coding: B, Rear wall/screw mounting, M16 x 1.5, Bus line, 0.25 mm2, PROFIBUS, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238666
Cod. Articolo: 1401425 copia - copy
Cod. Fornitore: 1401425 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesSafety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50ÂV AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixÂContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

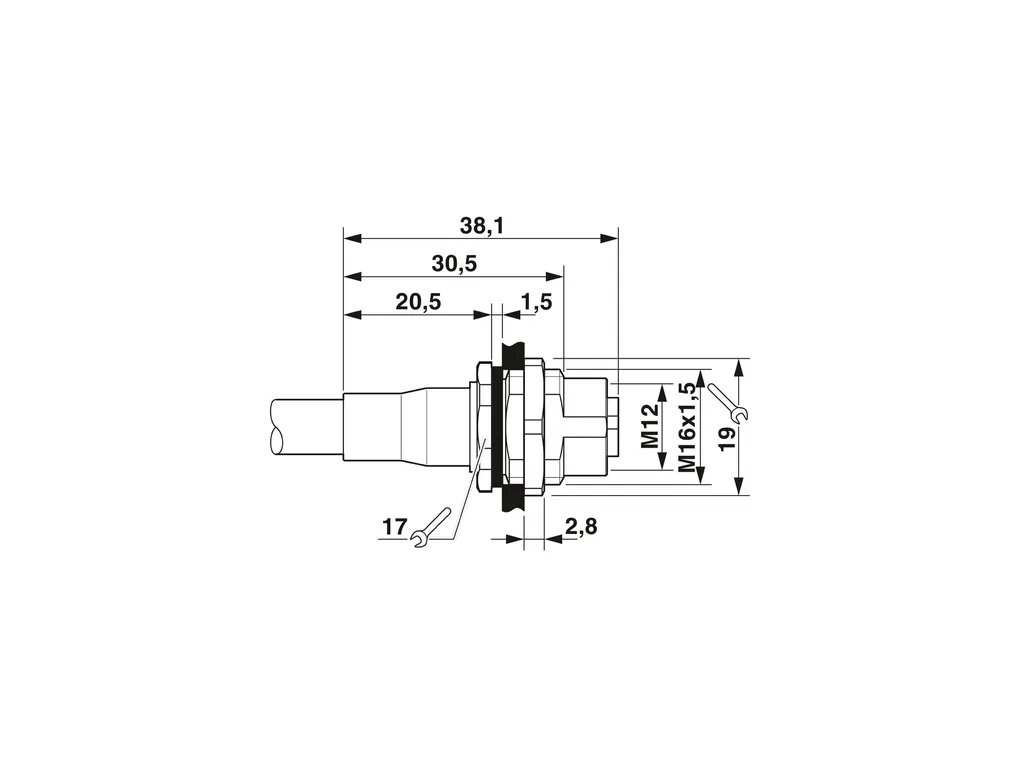

MountingMounting type: Rear wall/screw mounting M16 x 1.5
Connection method: Bus line
Product propertiesProduct type: Circular connectors (device side)

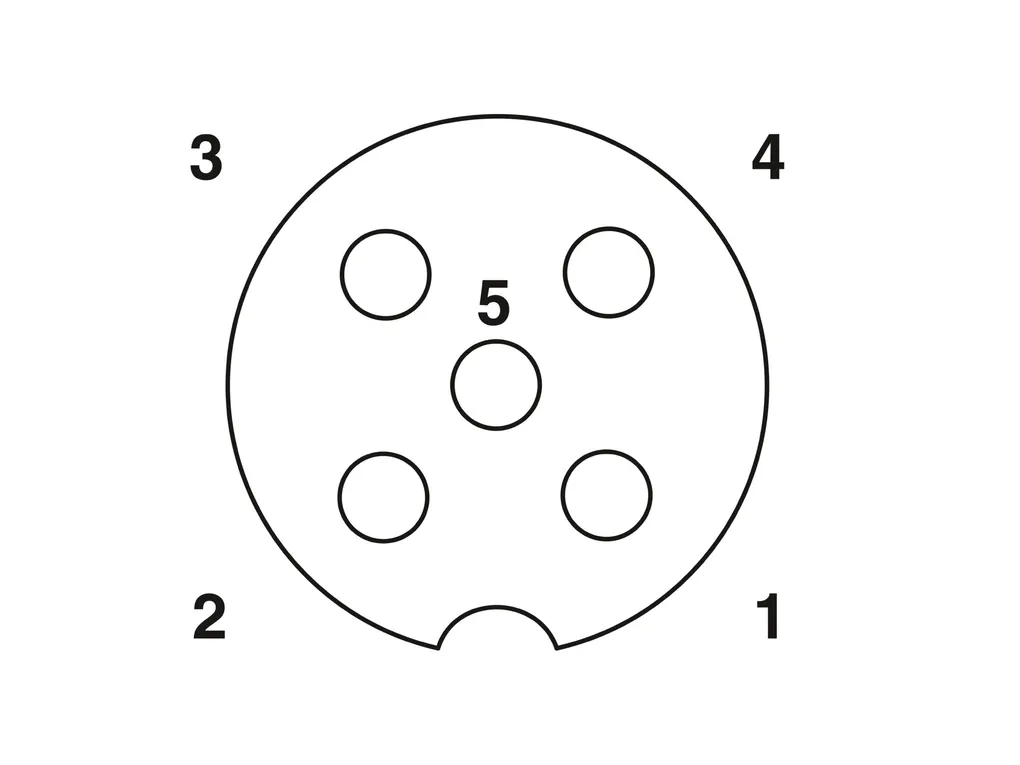

Number of positions: 5
No. of cable outlets: 1
Shielded: yes
Coding: B
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Outer sheath, material: PUR
Conductor material: Bare Cu litz wires
Electrical propertiesRated surge voltage: 1.5 kV AC
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 10 GΩ
Nominal voltage UN: 48 VÂAC
60 VÂDC
Nominal current IN: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Connection dataConductor connection
Connection method: Bus line
Contact connection type: Socket
Conductor cross section: 0.25 mm²
Mechanical propertiesMechanical data
Max. bending cycles: 3000000
Cable/lineCable length: 2
PROFIBUSÂ[915]
Cable weight: 74 kg/km
Number of positions: 2
Shielded: yes
Cable type: PROFIBUSÂ[915]
Conductor structure: 1x2xAWG24/19
Conductor structure signal line: 19x 0.14 mm
AWG signal line: 24
Conductor cross section: 2x 0.25 mm²
Wire diameter incl. insulation: 2.56 mm
External cable diameter: 8 mm ±0.4Âmm
Outer sheath, material: PUR
External sheath, color: blue
Conductor material: Bare Cu litz wires
Material wire insulation: Foamed PE
Single wire, color: red, green
Thickness, outer sheath: approx. 0.8 mm
Overall twist: 2 wires, twisted
Optical shield covering: 70 %
Insulation resistance: ≥ 16 GΩ*km
Working capacitance: 28 nF (at 1 kHz)
Nominal voltage, cable: ≤ 100 V
Test voltage Core/Core: 3600 VÂDC
Minimum bending radius, flexible installation: 5 x D
Max. bending cycles: 3000000
Tensile strength: ≤ 100 N
Flame resistance: according to IEC 60332-1
Resistance to oil: Resistant to mineral oils and grease
Ambient temperature (operation): -40°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25 ... -85 (Plug / socket)
-40°C ... 80°C (cable, fixed installation)
-20°C ... 80°C (Cable, flexible installation)
Standards and regulationsStandards/specifications: according to IEC 61076-2-101
