| Product properties | Type: QPD 5x2,5 Product type: Installation connector Product family: QPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, L, N, PE Number of connections: 5 Number of connections per position: 1 Series: QPD Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A Contact resistance: < 4 mé rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage UN: 690 VÃAC 690 VÃDC Nominal current IN: 20 A |
| Connection data | Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 1 mm² ... 2.5 mm² Conductor cross section solid: 1 mm² ... 1.5 mm² Connection cross section AWG: 16 ... 14 Tightening torque Union nut: 10 Nm |

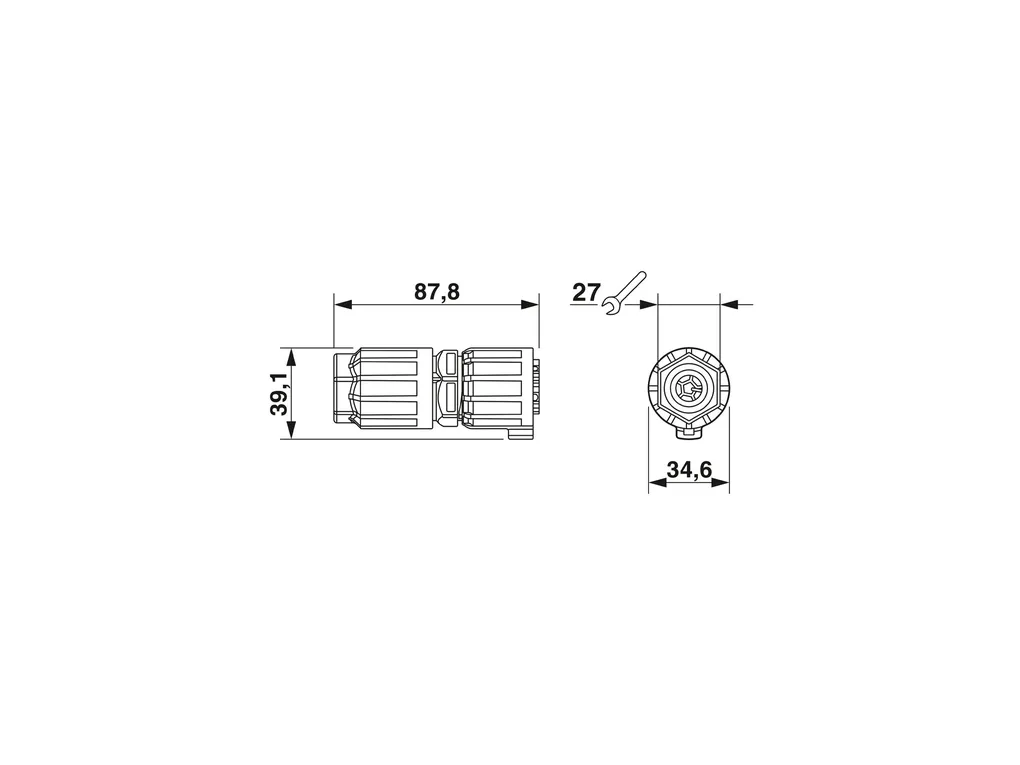

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0af937daadfbc74999cfda58aaf14fd8/-S204x204-FJPG Width: 34.6 mm Height: 39.1 mm Length: 87.8 mm Diameter: 39.1 mm |
| Material specifications | Material: PA Cu Silver-plated |
| Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 9 mm ... 16 mm Wire diameter including insulation: 2 mm ... 3.8 mm Position marking: 1, 2, L, N, PE Material wire insulation: PVC / PE |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: max. 50 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 80°C |
