1403837 PHOENIX CONTACT -

Mounting	Wrench size: 27 mm Connection method: QUICKON fast connection
Product properties	Type: QPD 5x2,5 Product type: Cable connector Product family: QPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, L, N, PE Number of connections per position: 1 Series: QPD Coding: Coding profile Insulation characteristics Overvoltage category: III Degree of pollution: 3

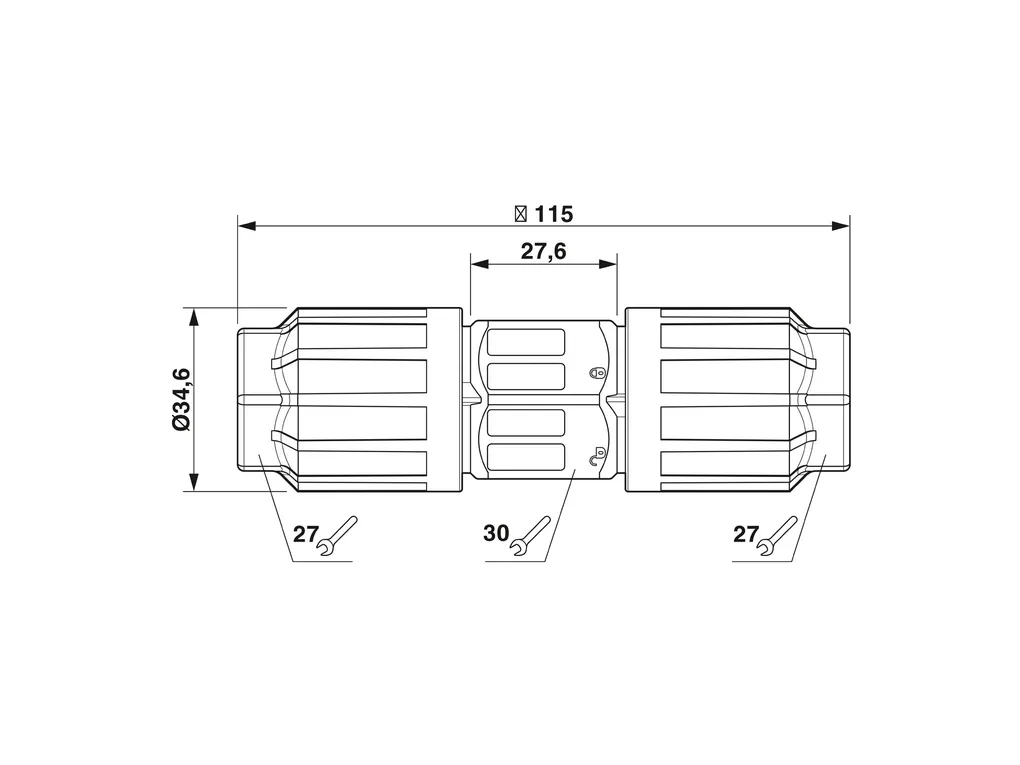

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b2bd96483c3a854a80f2041060625720/-S204x204-FJPG Width: 34.6 mm Height: 34.6 mm Length: 115 mm Diameter: 34.6 mm Wrench size for mounting: 27 mm
Connection data	Connection technology Connection method: QUICKON fast connection Connection system, internal: IDC connection Connection technology: QUICKON connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Tightening torque: 10 Nm 5 Nm Tightening torque Union nut: 10 Nm Tightening torque Locking nut: 5 Nm Wrench size Union nut: 27 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 VÃAC 690 VÃDC Nominal current I_N: 20 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50
Material specifications	Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 6 mm ... 11 mm Wire diameter including insulation: 2 mm ... 3.8 mm Position marking: 1, 2, L, N, PE Material wire insulation: PVC/PE/TPE/rubber Halogen-free: yes
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
