| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.3 Connectors for inside environment (optical fibre) |
| Product properties | Type: SC-RJ Product type: Data connector (cable side) Sensor type: Ethernet Number of positions: 2 Connection profile: SCRJ Application: PROFIBUS Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Attenuation: ââ°¥ 2 dB (Insertion attenuation) Transmission medium: FO Transmission characteristics (category): MM |
| Connection data | Connection technology Connection method: mechanical splice |

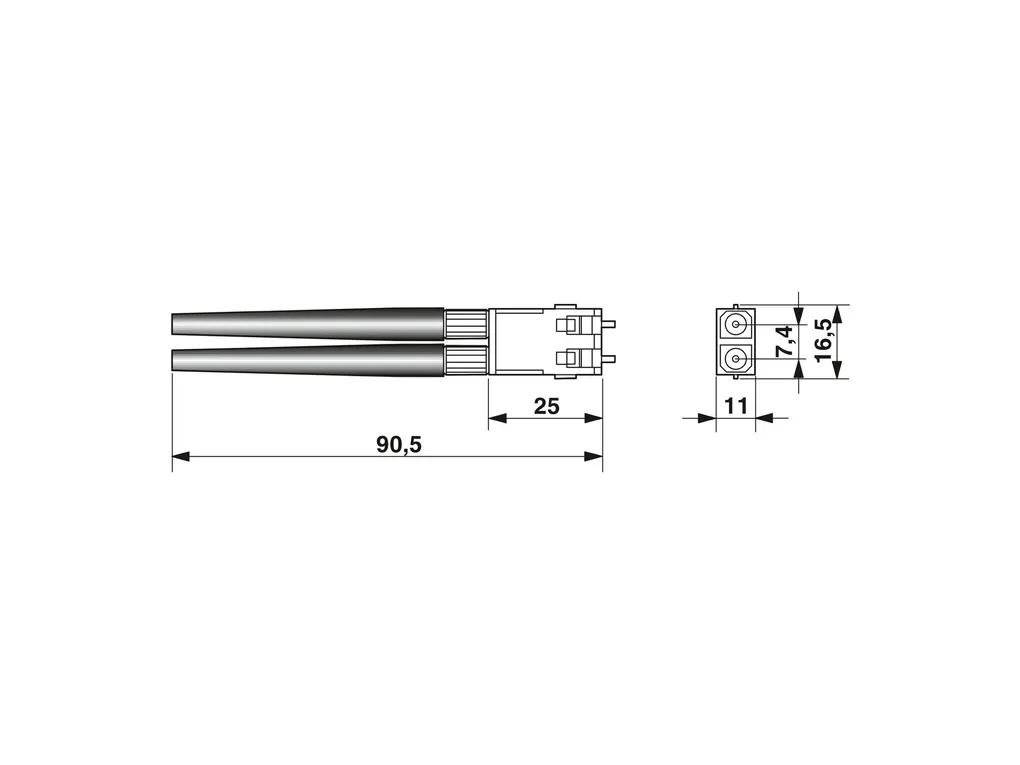

| Dimensions | Width: 16.5 mm Height: 11 mm Length: 88.5 mm |
| Material specifications | Color: black Material: Plastic Flammability rating according to UL 94: V0 Ferrule material: Copper alloy Housing material: Plastic |
| Cable/line | Cable type: Fiberglass External cable diameter (): 2.2 mm ... 2.2 mm Wire diameter: 2.2 mm FO cable Number of fibers: 2 Fiber type: PCF |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 1000 |
| Characteristics | Attenuation: ââ°¥ 2 dB (Insertion attenuation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C Ambient temperature (assembly): -5°C ... 55°C |
| Mounting | cable layer type: Indoors Connection method: mechanical splice |
