| Product properties | Product type: Sensor/actuator cable Number of positions: 8 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 1.5 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.2 Nm (M8 connectors) |
| Connector | Connection 1 Type: Plug straight M8 Number of positions: 8 Coding type: A Connection 2 Type: Socket straight M8 Number of positions: 8 |

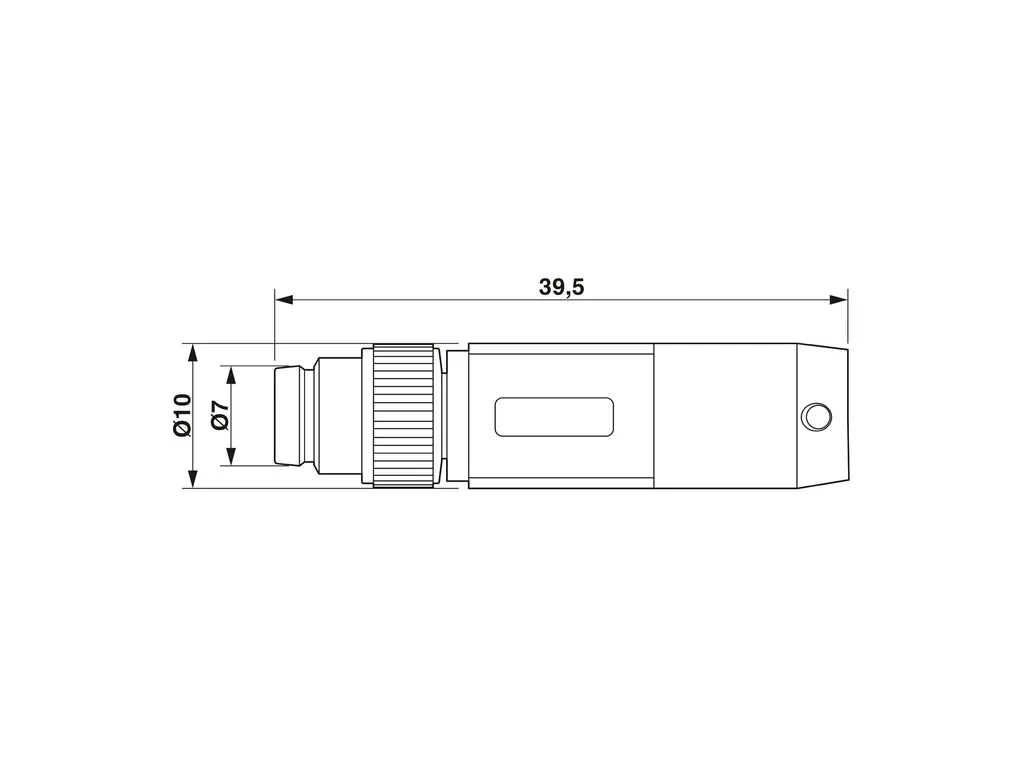

| Cable/line | Cable length: 0.3 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f57b5317f5d4b4fb418a4409e500605/-S204x204-FJPG Cable weight: 45 kg/km UL AWM Style: 20549 Number of positions: 8 Shielded: yes Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Conductor cross section: 8x 0.14 mm² (Signal line) Wire diameter incl. insulation: 1 mm ñ0.02Ãmm (Signal line) External cable diameter: 5.9 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material, filler: PE Material wire insulation: PP Single wire, color: white, brown, green, yellow, gray, pink, blue, red Thickness, insulation: ââ°¥ 0.21 mm (Signal line) ââ°¥ 0.38 mm (Outer cable sheath) Overall twist: 8 wires around filler to the core Length of twist, overall twist: 58 mm Optical shield covering: 85 % Max. conductor resistance: 139 é/km (at 20ðC) Insulation resistance: 1 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Test voltage Core/Shield: ââ°¥ 2000 VÃAC (for 60 s) Smallest bending radius, fixed installation: 29.5 mm Smallest bending radius, movable installation: 59 mm Max. bending cycles: 2000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: according to ULÃ758/1581 (horizontal) in accordance with ULÃ758/1581 FT2 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: hydrolysis and microbe resistant Resistant to salt water Low adhesion abrasion-resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
