| Product properties | Product type: Sensor/actuator cable with valve connector Number of positions: 4 No. of cable outlets: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6 Contact surface material: Sn |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 230 VÃAC 230 VÃDC Nominal current IN: 4 A |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Valve connector AD (pressure switch) Material: CuSn (Contact) Sn (Contact surface) PA 6 (Contact carriers) TPU (Housing) |

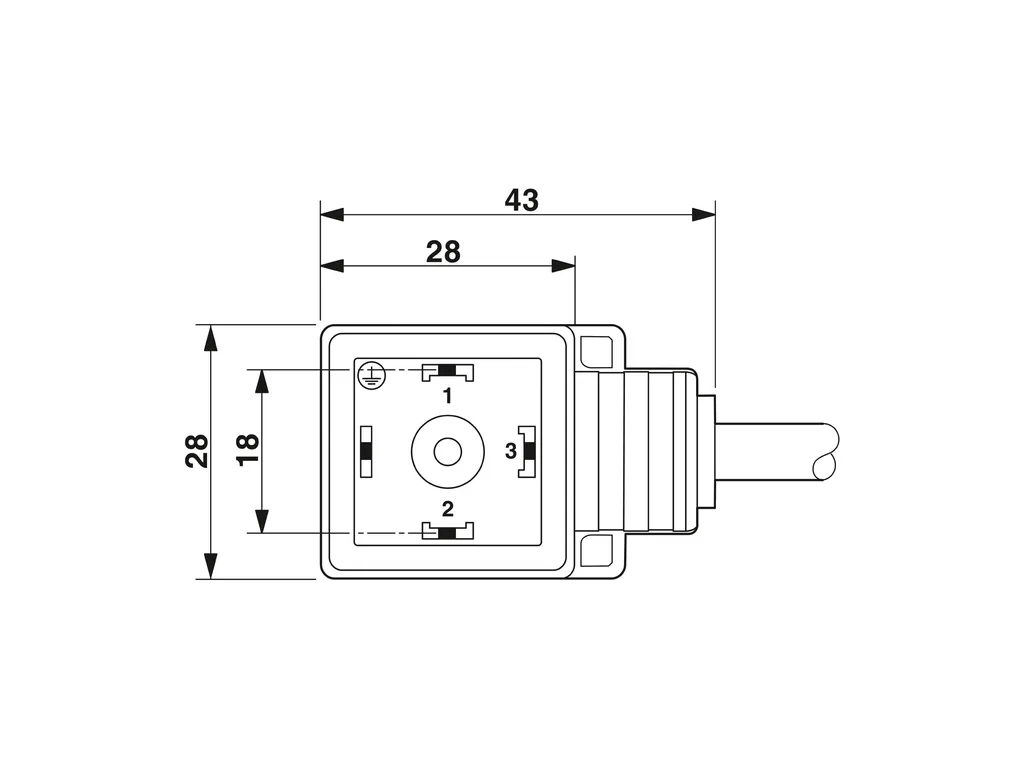

| Cable/line | Cable length: 10 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c7abd0ae08871142a7b5442eff968b45/-S204x204-FJPG UL AWM Style: 20549 Number of positions: 4 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 4x 0.5 mm² Wire diameter incl. insulation: 1.5 mm ñ0.05 mm (Signal line) External cable diameter: 4.9 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, black 3, green/yellow Overall twist: 4 wires, twisted Max. conductor resistance: 39 é/km (at 20ðC) Insulation resistance: min. 20 Mé*km Nominal voltage, cable: 300 V Test voltage: 1200 V Smallest bending radius, fixed installation: 25 mm Smallest bending radius, movable installation: 50 mm Max. bending cycles: 15000000 Flame resistance: according to DINÃVDEÃ0482 According to DINÃENÃ50265-2-1 Other resistance: largely oil-resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 85°C (valve plug) |
| Standards and regulations | Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803 |
