1404369 PHOENIX CONTACT -

Notes	General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling
Mounting	Mounting type: Screw mounting
Product properties	Type: M12 Product type: Circular connectors (device side) Sensor type: PROFINET Number of positions: 4 Shielded: yes Insulation characteristics Overvoltage category: I Degree of pollution: 1
Material specifications	Flammability rating according to UL 94: V2 Housing material: CuZn/PA Outer sheath, material: PVC Conductor material: Tin-plated Cu litz wires
Electrical properties	Rated voltage (III/3): 50 V Nominal voltage U_N: 48 V Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 100 Mbps
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Connector	Connection 1 Type: Flush-type female connector straight M12 Degree of protection: IP67 Number of positions: 4 Connection 2 Type: Plug straight RJ45 Number of positions: 4 Degree of protection: IP20

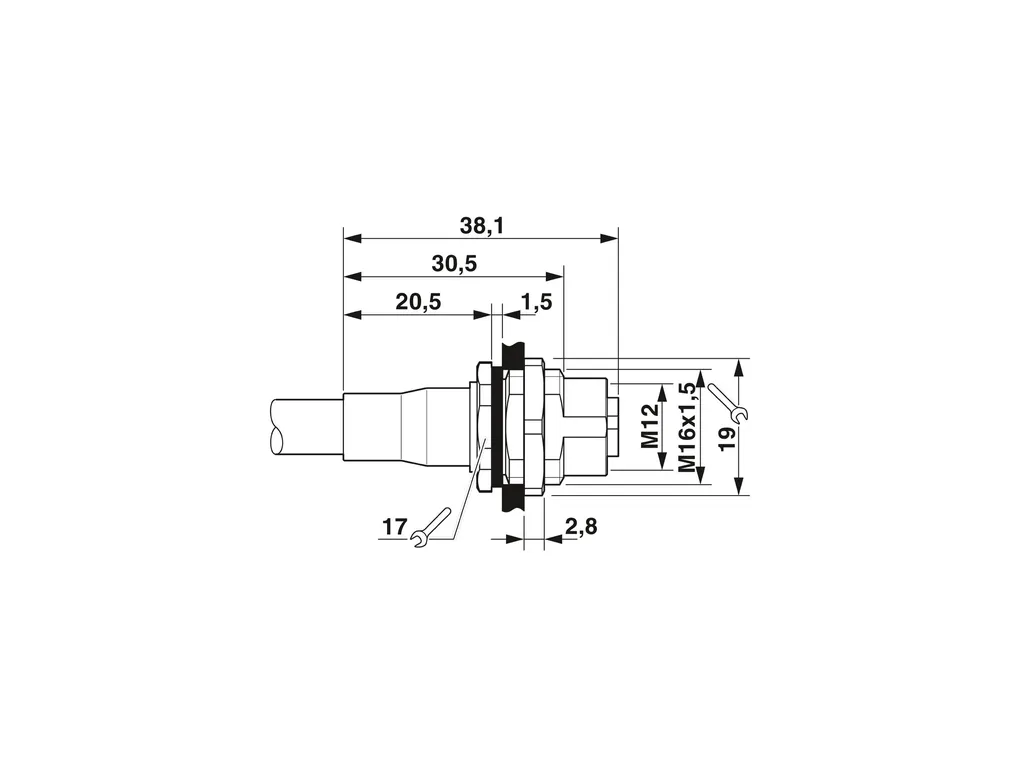

Cable/line	Cable length: 5.00 m PROFINET PVC stranded CAT5Ã[93B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG Shielded: yes UL AWM Style: 21694 Cable weight: 67 kg/km Cable type: PROFINET PVC stranded CAT5 Short symbol: 2YY(ST)CY Cable type (abbreviation): 93B Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps EtherCAT^Ã® CAT5 (IEC 11801), 100 Mbps Cable structure: 1x4xAWG22/7, SF/TQ External cable diameter: 6.5 mm Ã±0.2Ãmm Outer sheath, material: PVC External sheath, color: green RAL 6018 Thickness, outer sheath: approx. 0.9 mm Material, inner sheath: PVC Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Material wire insulation: PE Wire diameter incl. insulation: 1.55 mm Single wire, color: white, yellow, blue, orange Overall twist: Star quad Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 85 % Nominal voltage, cable: 600 V Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Cable insulation resistance: Ã¢Ã¢°¥ 500 MÃ©*km Coupling resistance: Ã¢Ã¢°¤ 20.00 mÃ©/m (at 10 MHz) Wave impedance: 100 Ã© Ã±15ÃÃ© (at 100 MHz) Loop resistance: Ã¢Ã¢°¤ 120.00 Ã©/km Signal runtime: 5.3 ns/m Signal speed: 0.66 c Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 7 x D Damping: 2.1 dB (with 1 MHz) 4 dB (at 4 ÃÃHz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20ÃÃÃHz) 11.4 dB (at 31.25ÃÃÃHz) 16.5 dB (at 62.5ÃÃÃHz) 21.3 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 ÃÃHz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20ÃÃÃHz) 60 dB (at 31.25ÃÃÃHz) 55 dB (at 62.5ÃÃÃHz) 50 dB (at 100 MHz) Resistance to oil: Resistant to oil to a limited extent Flame resistance: according to ULÃ1685 (CSA FT 4) Other resistance: UV resistant According to ULÃ1581, Section 1200 Ambient temperature (operation): -40°C ... 70°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation) -5°C ... 50°C (Cable, flexible installation) Plug / socket
