| Product properties | Type: RJ45 Product type: Male insert Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Positions/contacts: 8P8C Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Rated surge voltage: 330 kV Rated current: 1 A Contact resistance: < 20 mé (Contact) < 100 mé (shield) > 10 mé (Wire ââ¬Ã¢ IDC) Frequency range: to 250 MHz Insulation resistance: > 500 Mé (100ÃVÃDC) Nominal voltage UN: 48 V Nominal current IN: 1 A Contact resistance per contact pair: < 20 é Transmission medium: Copper Transmission characteristics (category): CAT6 |

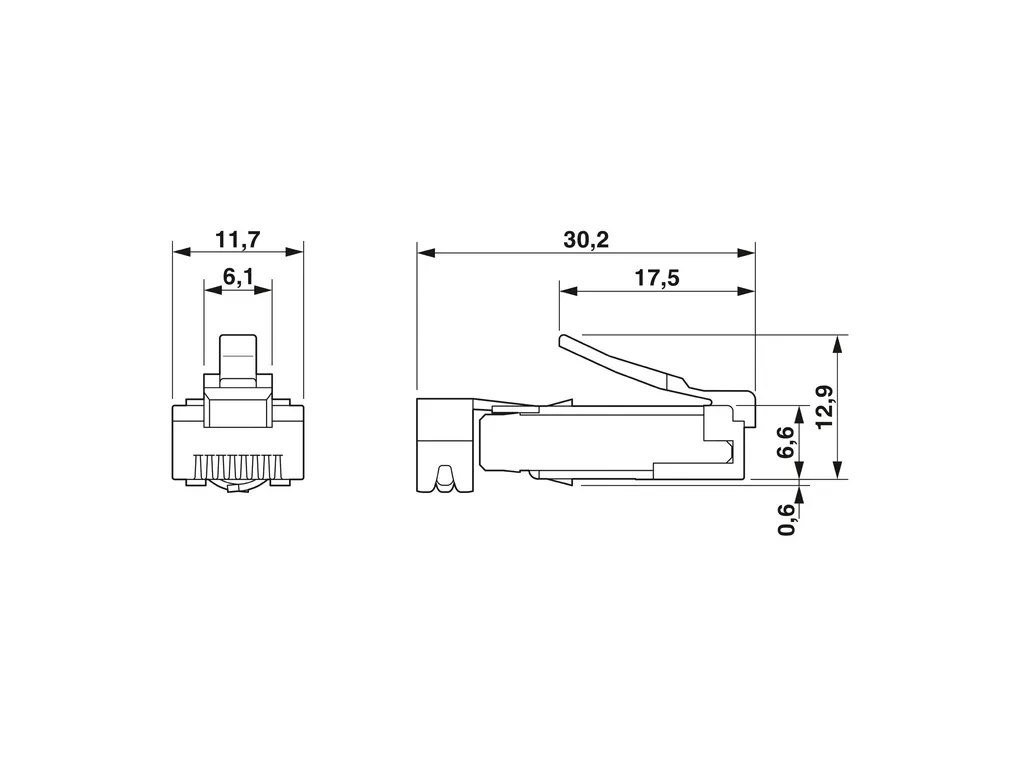

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/44f358a1f4bc9b459147def5ef971ec7/-S204x204-FJPG Width: 11.7 mm Height: 14 mm Length: 30.2 mm |
| Material specifications | Color: red Flammability rating according to UL 94: V2 Contact material: Phosphor bronze Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: PC Material for screw connection: PA |
| Cable/line | External cable diameter (): 6.6 mm Wire diameter including insulation: 0.9 mm ... 1 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C |
| Mounting | Mounting type: Crimp connection Connection method: Crimp connection |
