| Notes | General: Strip 22 mm off the cable sheath, shorten conductor for the fifth position by 10 mm. Strip 7 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Length of conductors with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Connection method: Screw connection |
| Product properties | Product type: Circular connector (cable-side) Number of positions: 5 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Pg screw connection: Pg11 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

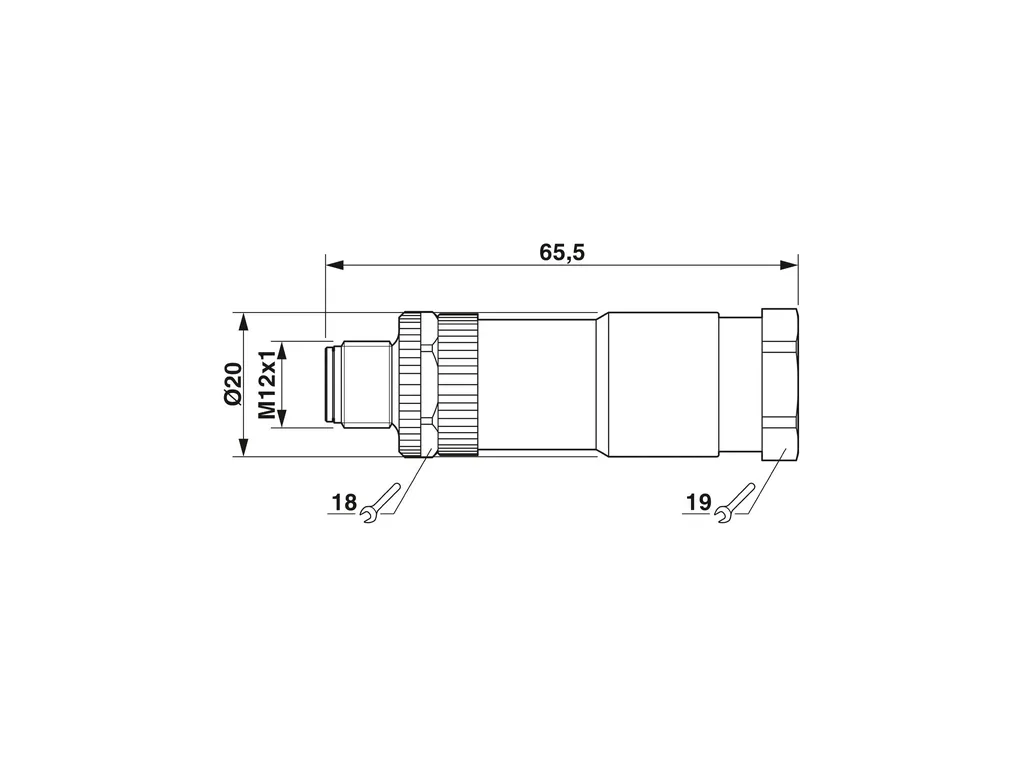

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/40f97c5549554247bd3efe1dcc1360ea/-S204x204-FJPG Width: 20 mm Height: 20 mm Length: 65.5 mm External dimensions Outside diameter: 8 mm ... 10 mm Housing Diameter housing: 20 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: PA Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Conductor connection Connection method: Screw connection Connection cross section: 0.75 mm² ... 1.5 mm² (without ferrule) 0.75 mm² ... 1.5 mm² (with ferrule) 0.75 mm² ... 1.5 mm² (solid) Connection cross section AWG: 18 ... 16 (without ferrule) 16 ... 18 (with ferrule) Stripping length of the individual wire: 5 mm Tightening torque: 0.4 Nm (M12 knurl) 1.5 Nm ... 2 Nm (Pressure screw with sleeve housing) 0.4 Nm (Screw plug insert with sleeve housing as far it will go) 0.2 Nm (Screw terminal blocks) |
| Electrical properties | Rated surge voltage: 1.5 kV Contact resistance: ââ°¤ 3 mé Insulation resistance: > 10 Gé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 8 A (Contact 5: 2 A) when using 1.5 mm² conductors |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M12 Coding: A |
| Cable/line | Stripping length of the individual wire: 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
