| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: no Coding: B Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 3 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.2 Nm (M8 connectors) |

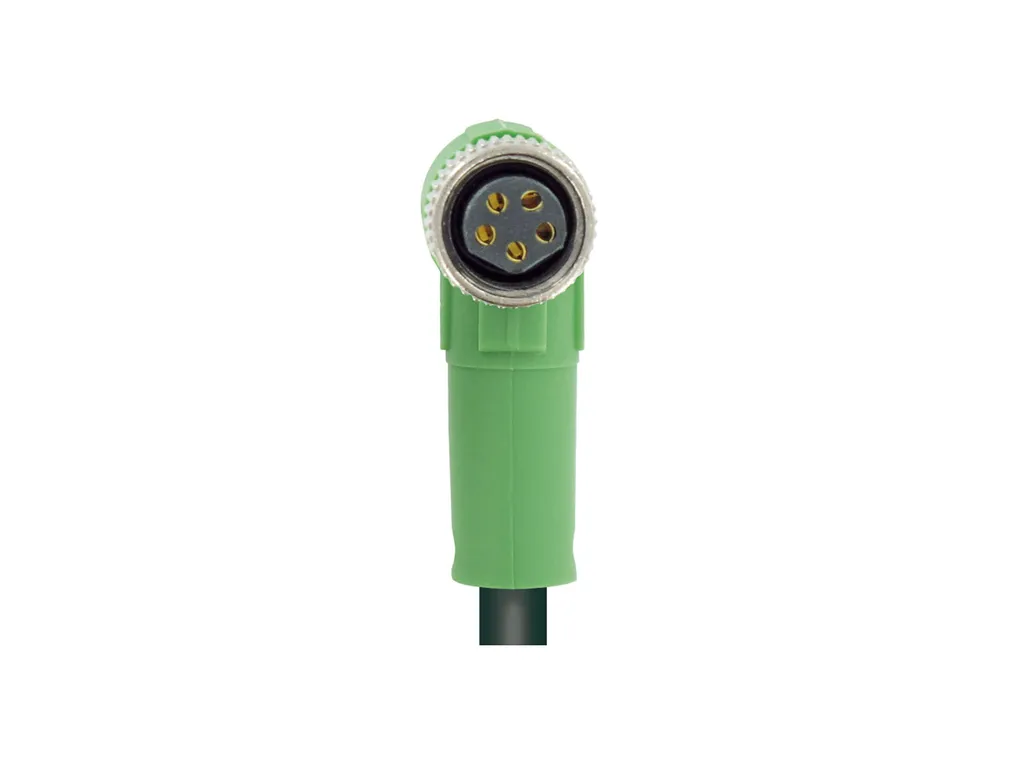

| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M8 Number of positions: 5 Coding type: B |
| Cable/line | Cable length: 10 m PUR, black, 5th conductor grayÃ[115] Cable weight: 30 kg/km UL AWM Style: 20549 Number of positions: 5 Shielded: no Cable type: PUR, black, 5th conductor grayÃ[115] Conductor structure signal line: 32x 0.10 mm AWG signal line: 24 Conductor cross section: 0.25 mm² Wire diameter incl. insulation: 1.17 mm ñ0.02Ãmm External cable diameter: 4.7 mm ñ0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material, filler: PP Material wire insulation: PP Single wire, color: brown, white, blue, black, gray Thickness, insulation: approx. 0.21 mm (Core insulation) approx. 0.7 mm (Outer cable sheath) Overall twist: 5 cores, twisted Length of twist, overall twist: 75 mm Max. conductor resistance: ââ°¤ 75 é/km Insulation resistance: ââ°¥ 1 Gé*km Nominal voltage, cable: ââ°¤ 300 V (AC) Test voltage: ââ°¥ 3000 V (AC) Smallest bending radius, fixed installation: 23.5 mm Smallest bending radius, movable installation: 47 mm Max. bending cycles: 4000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: according to ULÃ758/1581 (horizontal) in accordance with ULÃ758/1581 FT2 Resistance to oil: According to DIN EN 60811-2-1, 168 h at 100°C Other resistance: hydrolysis and microbe resistant Resistant to salt water Low adhesion abrasion-resistant Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
| Standards and regulations | Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
