| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: Version 14 RJ45 Product type: Panel mounting frame Connection profile: unassembled Application: Freenet system Insulation characteristics Degree of pollution: 2 |
| Connection data | Connection technology Connection method: Spring-cage connection |

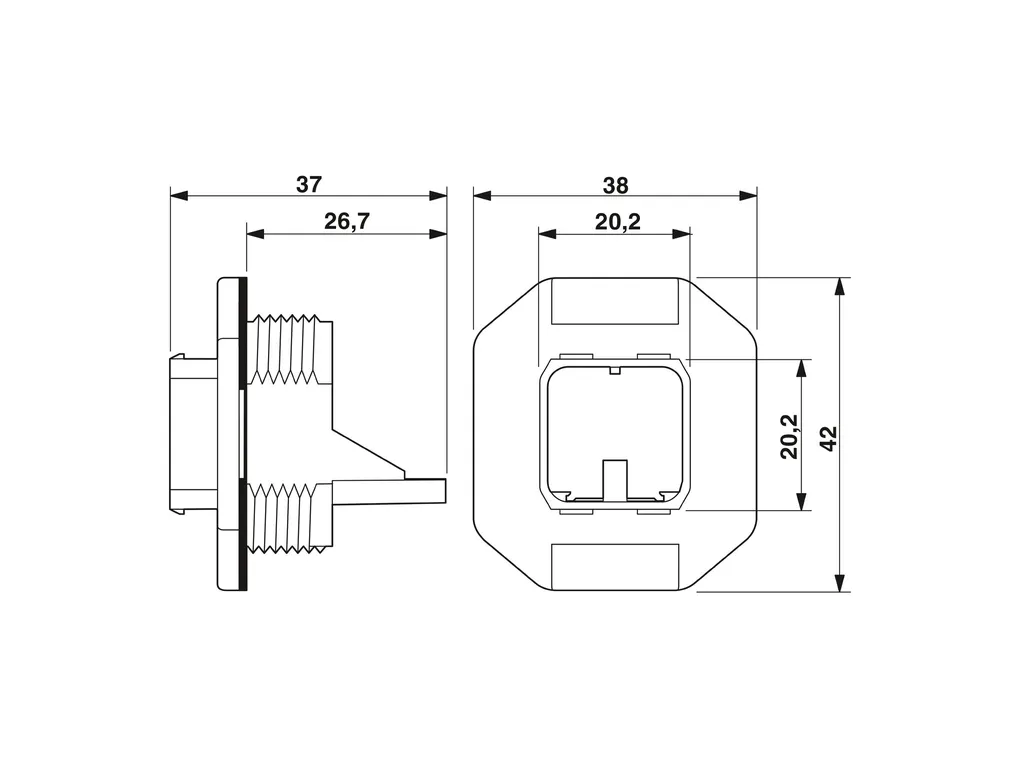

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b492c37de8b58a4a8860786d4e80adcb/-S204x204-FJPG Width: 38 mm Height: 42 mm Length: 37 mm |
| Material specifications | Color: silver Material: Metal Flammability rating according to UL 94: V0 Seal material: NBR Seal material, flat gasket: NBR Housing surface material: nickel-plated Housing material: Metal |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: >= 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C |
| Mounting | Mounting type: Wall mounting Connection method: Spring-cage connection |
