| Product properties | Product type: Sensor/actuator cable Number of positions: 12 No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 V AC 30 V DC Nominal current IN: 1.5 A |
| Signaling | Status display: no Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |

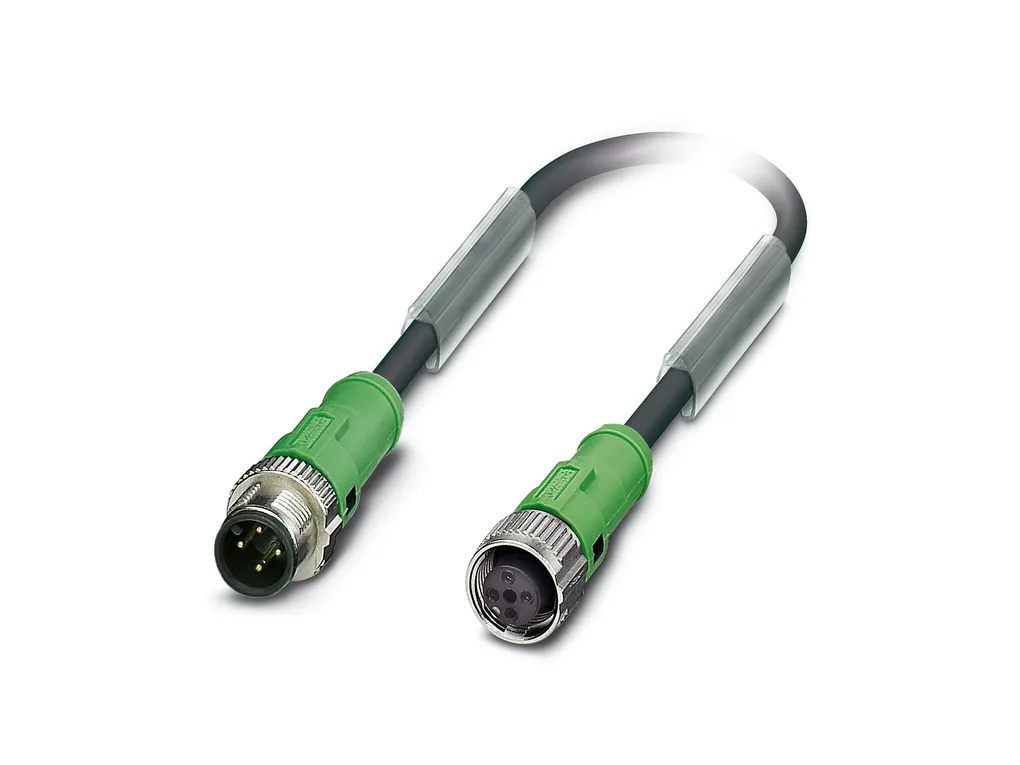

| Connector | Connection 1 Type: Plug straight M12 SPEEDCON Locking type: SPEEDCON Connection 2 Type: Socket straight M12 SPEEDCON Locking type: SPEEDCON |
| Cable/line | Cable length: 5 m PUR halogen-free black [PUR] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9264/full/b1500?format=jpg Cable weight: 17 kg/km Number of positions: 12 Shielded: no Cable type: PUR halogen-free black [PUR] Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Conductor cross section: 12x 0.14 mm² (Signal line) Wire diameter incl. insulation: 1 mm ñ0.05 mm (Signal line) External cable diameter: 7.20 mm Outer sheath, material: PUR External sheath, color: black RAL 9005 Conductor material: Tin-plated Cu litz wires Material wire insulation: PP Single wire, color: white, brown, green, yellow, gray, pink, blue, red, black, violet, gray/pink, red/blue Overall twist: 12 wires twisted in layers Max. conductor resistance: 142 é/km Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 1500 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 36 mm Smallest bending radius, movable installation: 72 mm Dynamic load capacity (bending): Max. bending cycles: 4000000, Bending radius: 54 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s² Halogen-free: in accordance with DIN EN 50267-2-1 Flame resistance: in acc. to UL VW1 DIN EN 60332-1-2 Resistance to oil: EN 60811-2-1 Other resistance: EN 50525-2-21:2012-01 partly UV-resistant (in accordance with DIN EN ISO 4892-2-A) Special properties: Low adhesion surface Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket) -40 °C ... 80 °C (cable, fixed installation) -20 °C ... 80 °C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
