1405332 PHOENIX CONTACT -

VS-PPC-F1-RJ45-MNNA-1C-FJJ - Panel mounting frames

RJ45 panel mounting frame, IP67, for push-pull interlocking, metal, with the Freenet system, for round panel cutout, with the RJ45 socket/socket socket insert, with seal, without mounting screws

Cod. Articolo: 1405332 copia - copy

Cod. Fornitore: 1405332 copia - copy

PHOENIX CONTACT

Notes	General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA)
Product properties	Type: Version 14 RJ45 Product type: Panel mounting frame Number of positions: 8 Connection profile: RJ45 Application: Freenet system Number of slots: 2 Insulation characteristics Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002)
Connection data	Connection technology Connection method: Push-Pull

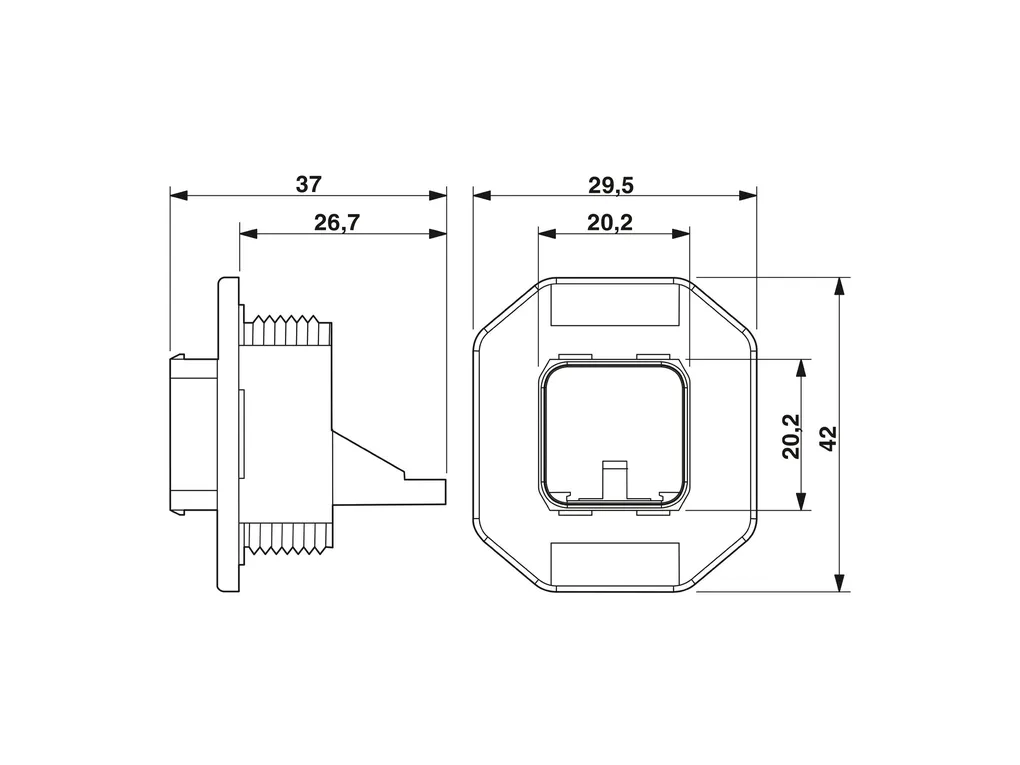

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/048854cac066124599878c58820f91fd/-S204x204-FJPG Width: 38 mm Height: 42 mm Length: 68.9 mm
Material specifications	Color: silver Material: Metal Seal material: NBR Seal material, flat gasket: NBR Housing surface material: nickel-plated Contact surface material: Au/Ni Housing material: Metal
Mechanical properties	Mechanical data Insertion/withdrawal cycles: >= 100
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C
Mounting	Mounting type: Wall mounting Connection method: Push-Pull
