1405972 PHOENIX CONTACT -

SAC-5P-MR/ 1,5-924/FS SCO - Bus system cable

Bus system cable, CANopen^®, DeviceNetÃ¢â¢, 5-position, shielded, Plug angled M12, coding: A, on Socket straight M12, coding: A, cable length: 1.5 m, Connector unshielded

Cod. Articolo: 1405972 copia - copy

Cod. Fornitore: 1405972 copia - copy

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: CANopen^Ã® Number of positions: 5 Application: Standard, U.S. cables No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Interfaces	Bus system: CANopen^Ã®/DeviceNetÃ¢Ã¢¢ Signal type/category: CANopen^Ã® DeviceNetÃ¢Ã¢¢
Signaling	Status display: No Status display present: No
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Transmission medium: Copper
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated
Connector	Connection 1 Type: Plug angled M12 Number of positions: 5 Coding type: A (Standard) Connection 2 Type: Socket straight M12 Number of positions: 5 Coding type: A (Standard)

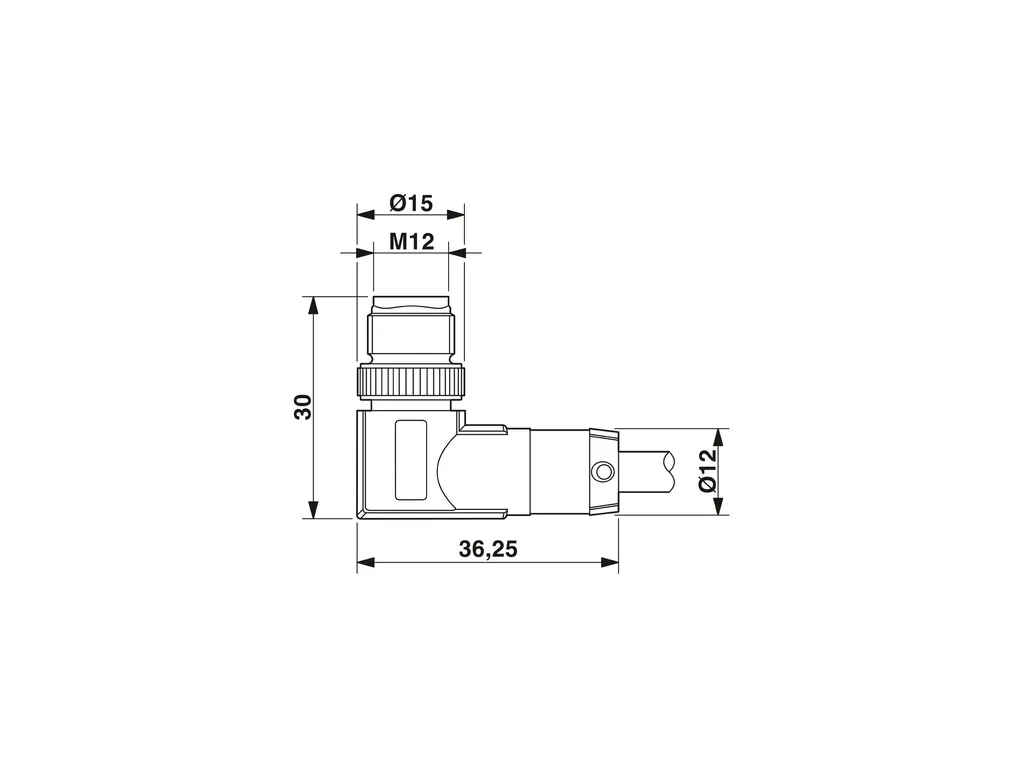

Cable/line	Cable length: 1.5 m CANopen Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cc0ea6f90bca614cbb3ab8c5537a0042/-S204x204-FJPG Cable weight: 64.51 kg/km UL AWM Style: 2464 (80°C/300 V) Number of positions: 4 Shielded: yes Cable type: CANopen^Ã®/DeviceNetÃ¢Ã¢¢, PVC, grayÃ[924] Conductor structure: 2xAWG22 (Signal) + 2xAWG22 (Power) Signal runtime: 4.46 ns/m Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 2x 0.34 mm² (Signal line) 2x 0.34 mm² (Power supply) Wire diameter incl. insulation: 1.27 mm Ã±0.05 mm (Signal line) 2.24 mm Ã±0.13Ãmm (Power supply) External cable diameter: 6.9 mm Ã±0.13Ãmm Outer sheath, material: PVC External sheath, color: gray Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE (Signal line) PVC (Power supply) Single wire, color: red-black, blue-white Twisted pairs: 2 cores to the pair Type of pair shielding: Plastic-coated aluminum foil, aluminum side inside Overall twist: 2 pairs around a drain wire in the center to the core Insulation resistance: Ã¢Ã¢°¥ 59.38 Ã©m (Signal line) Ã¢Ã¢°¥ 57.41 GÃ©km (Power supply) Wave impedance: 120 Ã© Ã±12ÃÃ© Working capacitance: nom. 78.74 pF (per meter) Minimum bending radius, flexible installation: 15 x D Shield attenuation: 0.95 dB (f = 125 kHz) 1.64 dB (f = 500 kHz) 2.3 dB (f = 1 MHz) Flame resistance: FT4 Resistance to oil: yes Other resistance: UV resistant Special properties: UL standards PLTC and ITC Ambient temperature (operation): -30°C ... 75°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
