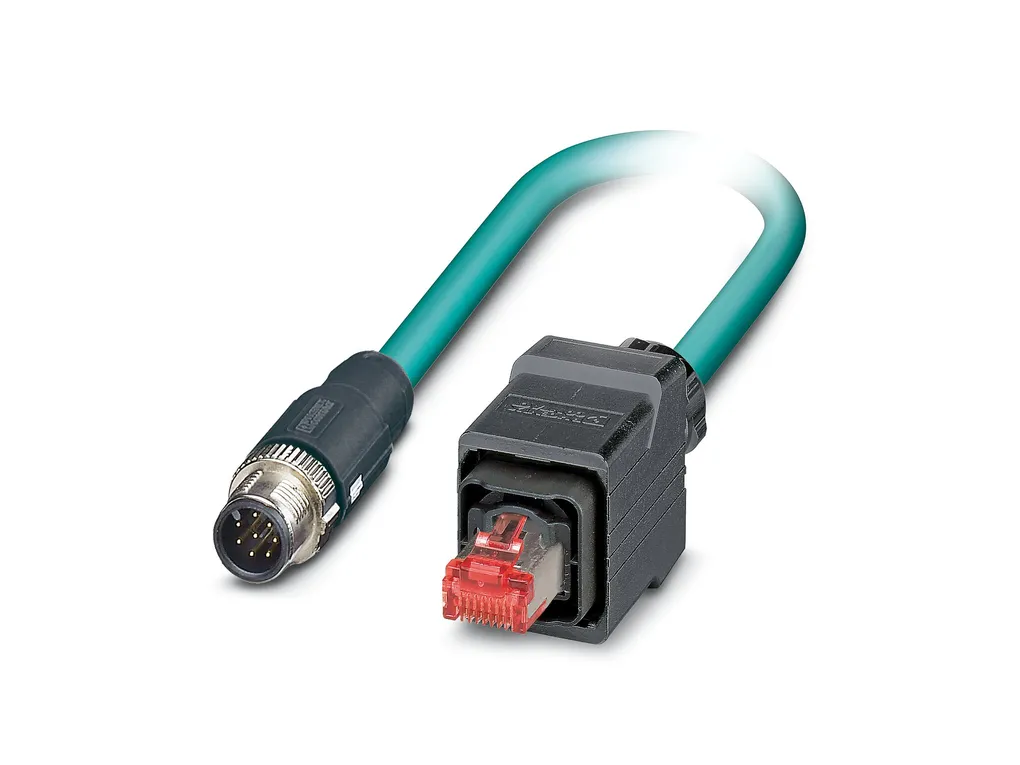

| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Application: Standard, U.S. cables Shielded: yes Coding: A |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet CAT5 (based on IEC 11801), 1 Gbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Connector | Connection 1 Type: Plug angled M12 / IP67 Coding type: A (Standard) Material: CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Zinc die-cast, nickel-plated (Screw connection) Degree of protection: IP67 Connection 2 Type: Plug straight RJ45 / IP20 Material: CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) PA (Housing) Degree of protection: IP20 |
| Cable/line | Cable length: 2 m Ethernet flexible CAT5, 4-pairÃ[94B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG Cable weight: 47 kg/km UL AWM Style: 20963 (80°C/30 V) Number of positions: 8 Shielded: yes Cable type: Ethernet flexible CAT5, 4-pairÃ[94B] Conductor structure: 4x2xAWG26/7, SF/UTP Signal runtime: 5.3 ns/m Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Wire diameter incl. insulation: 0.96 mm External cable diameter: 6.4 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Thickness, outer sheath: 1.05 mm Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Optical shield covering: 70 % Insulation resistance: ââ°¥ 5 Gé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Loop resistance: ââ°¤ 290.00 é/km Wave impedance: 100 é ñ5Ãé (at 100 MHz) Cable capacity: 48 nF/km (at 1 kHz) Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Tensile strength: ââ°¤ 100 N Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 Ãà Hz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20ÃÃà Hz) 48.9 dB (at 31.25ÃÃà Hz) 44.4 dB (at 62.5ÃÃà Hz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃà Hz) 39.9 dB (at 31.25ÃÃà Hz) 35.4 dB (at 62.5ÃÃà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8ÃÃà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃà Hz) 23.6 dB (at 31.25ÃÃà Hz) 21.5 dB (at 62.5ÃÃà Hz) 20.1 dB (at 100 MHz) Shield attenuation: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃà Hz) 17.1 dB (at 31.25ÃÃà Hz) 24.8 dB (at 62.5ÃÃà Hz) 32 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Flame resistance: according to IEC 60332-1-2 Resistance to oil: in accordance with EN 60811-2-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) Ambient temperature (installation): -20°C ... 80°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (M12 connector) IP67 (M12 connector) IP20 (RJ45 connector) IP67/IP20 Ambient temperature (operation): -25°C ... 85°C (M12 connector) -25°C ... 60°C (RJ45 connector) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
