| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: Standard, U.S. cables No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: Plug angled M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |

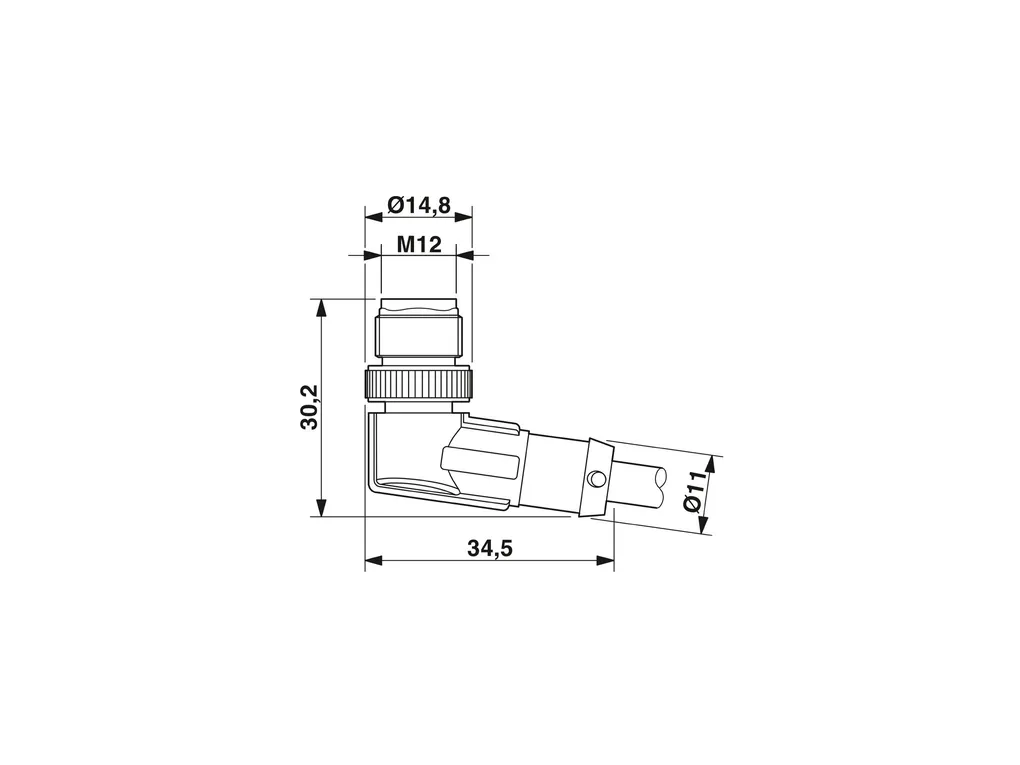

| Cable/line | Cable length: 1.5 m PVC yellow 105°CÃ[542] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/56149fb3698c494f9194d5a685dff32b/-S204x204-FJPG Cable weight: 43 kg/km UL AWM Style: 2517 (105ðC / 300ÃV) Number of positions: 5 Shielded: no Cable type: PVC yellow 105°CÃ[542] Conductor structure signal line: 30x 1.30 mm AWG signal line: 22 Wire diameter incl. insulation: 1.27 mm ñ0.03Ãmm External cable diameter: 5.4 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: yellow Conductor material: Tin-plated Cu litz wires Material, filler: PP Material wire insulation: PVC Single wire, color: brown, blue, black, white, gray Overall twist: 5 wires around filler to the core Max. conductor resistance: max. 50.5 é/km (20ðC) Insulation resistance: ââ°¥ (550 M Ohms/m @ 500V) Nominal voltage, cable: 300 V Minimum bending radius, flexible installation: 8 x D Flame resistance: FT4 Other resistance: UV resistant Special properties: UL standards PLTC and ITC Ambient temperature (operation): -30°C ... 105°C (cable, fixed installation) -5°C ... 105°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
