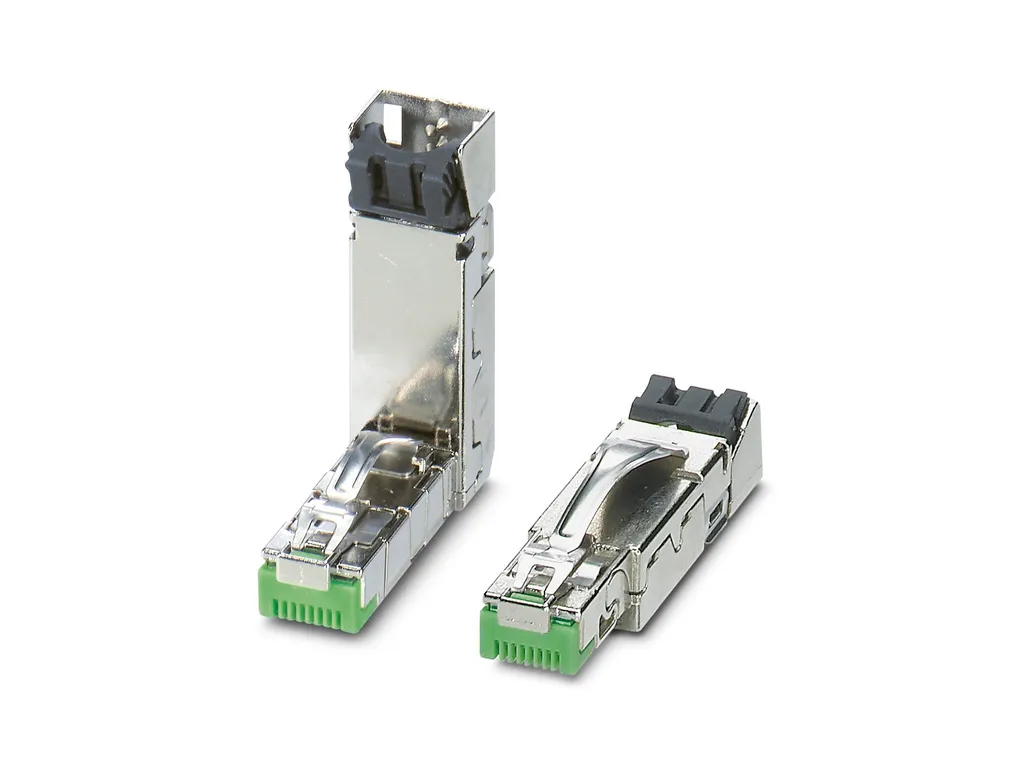

1406335 PHOENIX CONTACT -

CUC-IND-C1ZNI-S/R4QV6 - RJ45 connector

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 6, 100 Mbps, CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, High degree of resistance to vibration; 360° shielding; one-piece design; special tool-free assembly, VARAN

Cod. Articolo: 1406335 copia - copy

Cod. Fornitore: 1406335 copia - copy

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Data connector (cable side) Sensor type: VARAN Number of positions: 6 Connection profile: RJ45 No. of cable outlets: 1 Shielded: no Cable outlet: straight Positions/contacts: 8P6C Insulation characteristics Overvoltage category: I Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Contact resistance: < 20 mÃ© (Contact) < 100 mÃ© (shield) > 10 mÃ© (Wire Ã¢Ã¢¬Ã¢ IDC) Frequency range: to 100 MHz Insulation resistance: > 500 MÃ© Nominal voltage U_N: 48 V Nominal current I_N: 1.75 A Contact resistance per contact pair: < 20 Ã© Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps
Connection data	Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 4x 26 ... 24 (Data (solid and stranded)) 2x 26 ... 24 (Power (solid and stranded)) Conductor cross section: 4x 0.25 mm² ... 0.34 mm² (Data (solid and stranded)) 2x 0.32 mm² (Power (solid and stranded)) Cable outlet, angle: 180
Dimensions	Width: 13.65 mm Height: 14.4 mm Length: 53 mm
Material specifications	Material: Plastic Flammability rating according to UL 94: V0 Housing surface material: Ni Cable seal material: NBR Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: Stainless steel Material for screw connection: PA Housing material: Metal
Cable/line	External cable diameter (): 5 mm ... 9 mm External cable diameter: 5 mm ... 9 mm Wire diameter including insulation: Ã¢Ã¢°¤ 1.6 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N
Environmental and real-life conditions	Test specification Type of test: Vibration test Specification: IEC 60068-2-6 Frequency: 2-2000 Hz Sweep speed: 1Ãoctave/min Amplitude: 1 mm Acceleration: 200 m/s² Test duration: 20 s Test specificationÃ¢Ã¢¬Ã¢¹ Type of test: Shock testing Specification: IEC 60068-2-27 Acceleration: 491 m/s² Number of shocks per direction: 5 Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C
Mounting	Mounting type: For field assembly Connection method: Insulation displacement connection
