QPD H 4PE2,5 4X6-11 BK - H distributor

QUICKON H-distributor, black, 4 pos. +PE, 1.0 mm² ... 2.5 mm² / 690 V / 20 A, for cable diameters of 6 mm ... 11 mm, with a sealing bolt.

Cod. Articolo: 1406368 copia - copy

Cod. Fornitore: 1406368 copia - copy

PHOENIX CONTACT

Mounting	Wrench size: 27 mm
Product properties	Type: H-distributor Product type: Power distributor Product family: QPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections: 5 No. of cable outlets: 4 Series: QPD Coding: Coding profile Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 1 mm² ... 2.5 mm² Conductor cross section solid: 1 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Tightening torque Union nut: 10 Nm Wrench size Union nut: 27 mm

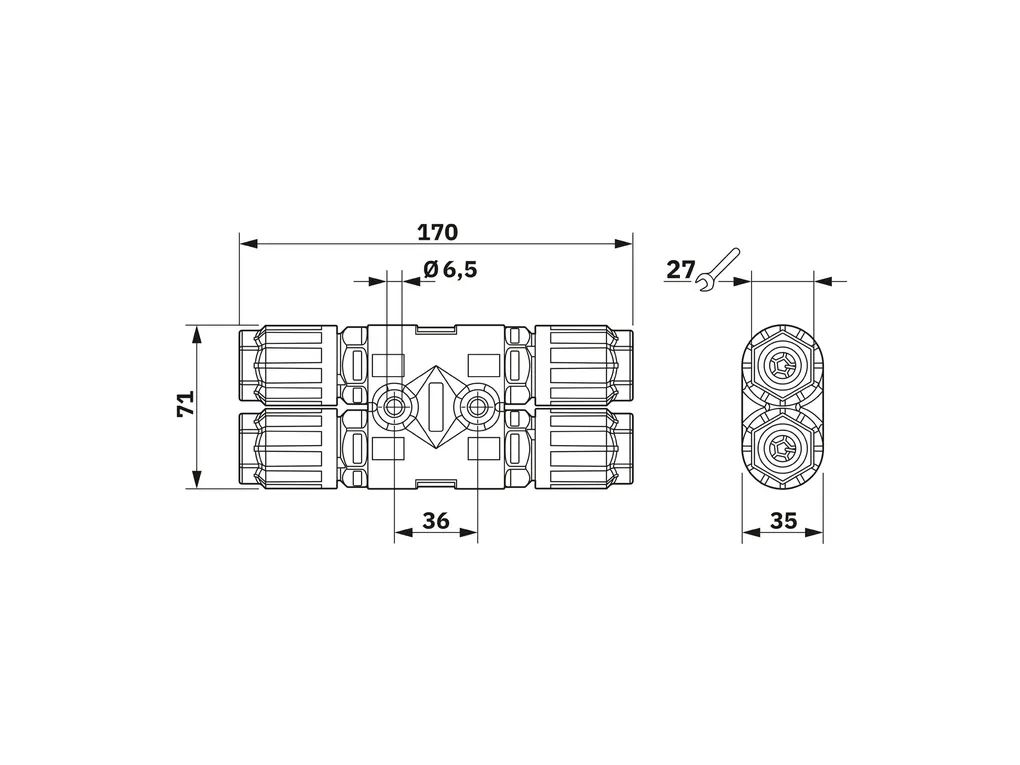

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/665f51c439b8fd45a2683f133f35254a/-S204x204-FJPG Width: 71 mm Height: 35 mm Length: 170 mm Wrench size for mounting: 27 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 VÃAC 690 VÃDC Nominal current I_N: 20 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50 (QUICKON connections max. 10)
Material specifications	Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 6 mm ... 11 mm Wire diameter including insulation: 2 mm ... 3.8 mm Position marking: 1, 2, 3, N, PE Material wire insulation: PVC /PE / rubber / TPE
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K (Distance from the nozzle 150Ãmm) Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
