| Product properties | Product type: Sensor/actuator cable Number of positions: 5 Application: External areas No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FPM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket straight M12 Number of positions: 5 Coding type: A |

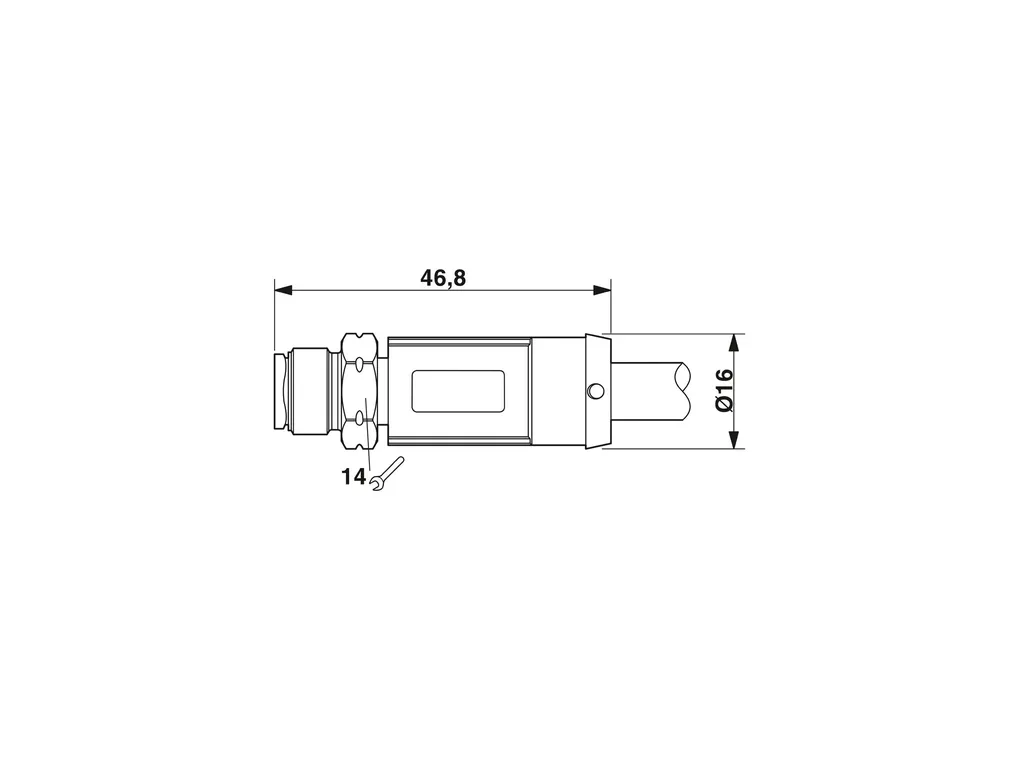

| Cable/line | Cable length: 2 m PE-X blackÃ[28X] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f01b9c0dd03c6e4285b6abec76fc8d33/-S204x204-FJPG Cable weight: 70 kg/km Number of positions: 5 Shielded: no Cable type: PE-X blackÃ[28X] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 5x 0.5 mm² Wire diameter incl. insulation: 1.6 mm ñ0.5 mm External cable diameter: 6.8 mm ñ0.2Ãmm Outer sheath, material: PE-X External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material, filler: PP yarn Material wire insulation: PE-X Single wire, color: brown, white, blue, black, gray Thickness, insulation: approx. 0.3 mm (Core insulation) Thickness, outer sheath: approx. 1.25 mm Overall twist: 5 wires around filler to the core Length of twist, overall twist: 68 mm Max. conductor resistance: ââ°¤ 39 é/m (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 2000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: According to DINÃENÃ60332-1-2 according to DINÃENÃ50266-2-5 according to IEC 60332-3-25 (bunched fire test) Resistance to oil: According to DIN EN 60811-2-1, 168 h at 100°C According to DIN EN 50306 Other resistance: Resistance to fuels according to IEC 60811, 168 h at 70°C UV resistant according to DINÃVDEÃ0276-605 Special properties: Irradiated Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -15°C ... 105°C (Cable, flexible installation) 20°C ñ5ðC (cable, drag chain applications) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -40°C ... 105°C (Plug / socket) -40°C ... 85°C (On sudden changes in temperature (according to IEC 60512-11-4)) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
