1407289 PHOENIX CONTACT -

SAC-3P- 5,0-PUO/A-1L-Z OD - Sensor/actuator cable

Sensor/actuator cable, 3-position halogen-free, free cable end, on Valve connector A, with 1 LED, connected with Z diode, cable length: 5 m, for outdoor applications, with stainless steel central screw and additional silicone seal (red)

Cod. Articolo: 1407289 copia - copy

Cod. Fornitore: 1407289 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 3 Application: External areas No. of cable outlets: 1 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: TPU Silicon Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6.6 Contact surface material: Sn
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode Valve connector characteristics Fixing screws: M3 x 29
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: free cable end Connection 2 Type: Valve connector A Number of positions: 3 Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)

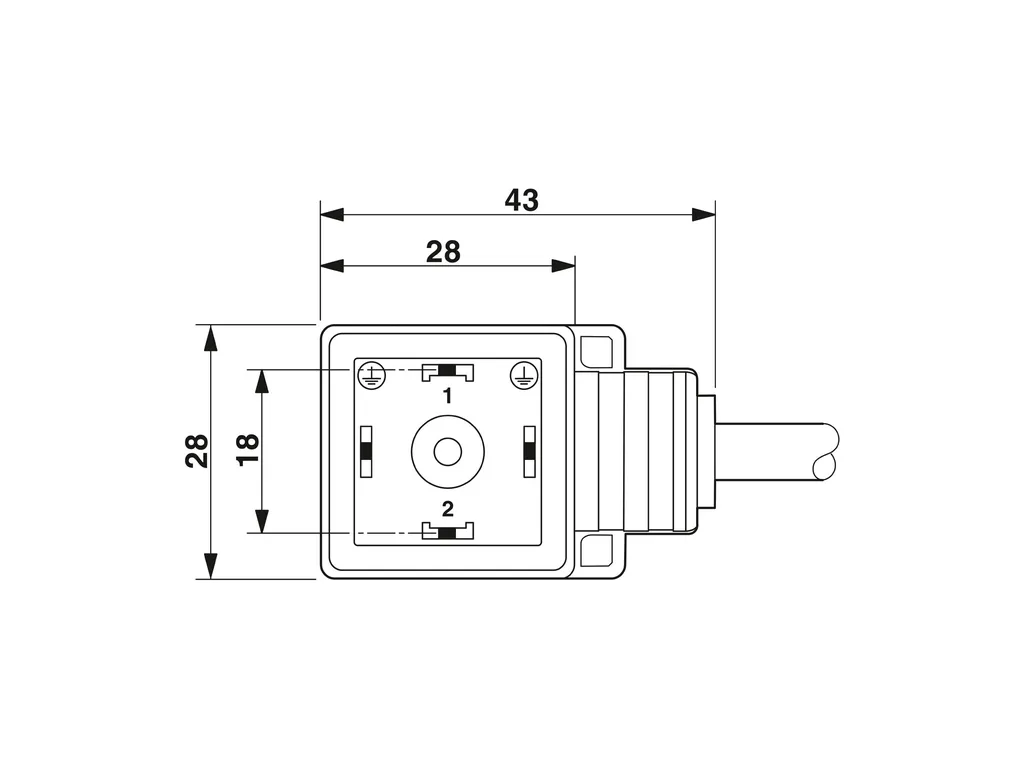

Cable/line	Cable length: 5 m PUR halogen-free blackÃ[PUO] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÃ[PUO] Conductor structure signal line: 16x 0.20 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 2 mm Ã±0.05 mm External cable diameter: 5.9 mm Ã±0.1Ãmm Outer sheath, material: PUR External sheath, color: black RALÃ9005 Conductor material: Tin-plated Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: Ã¢Ã¢°¤ 40.1 Ã©/km Insulation resistance: 70 GÃ©*km Nominal voltage, cable: 300 V Test voltage Core/Core: 3000 V (Spark test) Minimum bending radius, fixed installation: 10 x D Minimum bending radius, flexible installation: 15 x D Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with EN 50267-2-1 Resistance to oil: According to DIN EN 50306 According to DIN EN 60811-2-1, 138 h at 100°C Other resistance: UV resistant hydrolysis and microbe resistant Good resistance to aggressive media Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -15°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP66K (Observe tightening torque) IP67 IP68 Ambient temperature (operation): -40°C ... 85°C (valve plug)
Standards and regulations	Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803
