| Notes | General: Further products with variable cable type and variable cable length can be found in the accessories section |
| Product properties | Product type: Sensor/actuator cable Number of positions: 3 Application: Railway applications No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: PA 6.6 Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 SPEEDCON Number of positions: 3 Coding type: A Locking type: SPEEDCON |

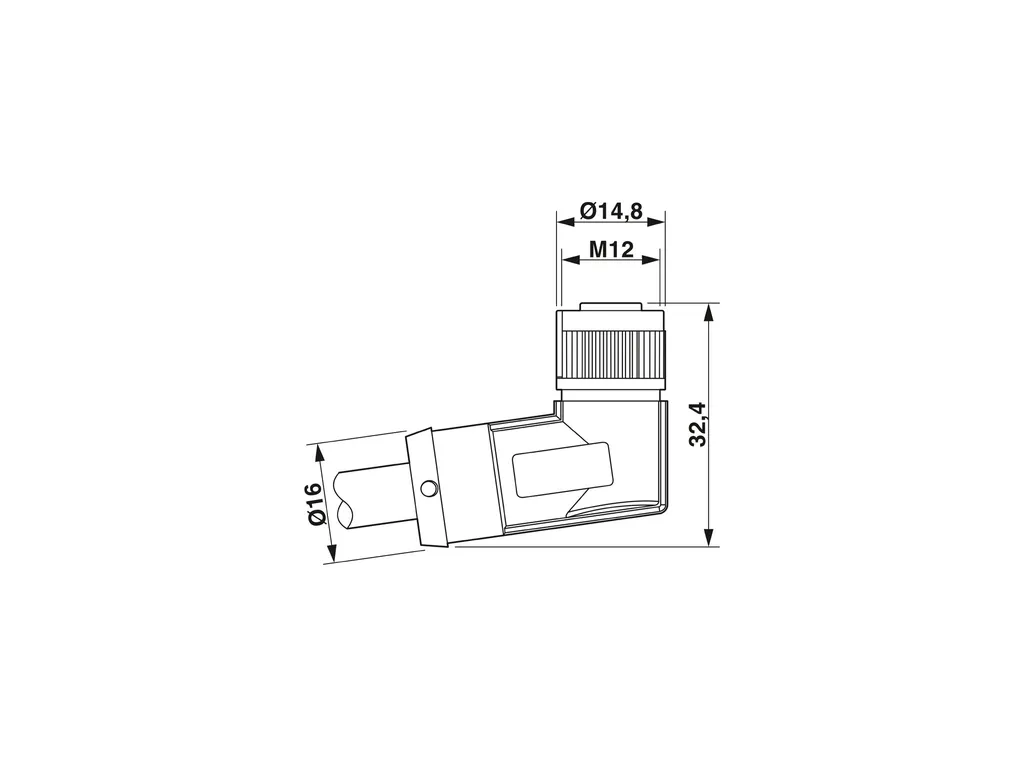

| Cable/line | Cable length: 5 m Shielded black RADOX Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0a49f86685fa4444a9a47a7fb6b46234/-S204x204-FJPG Cable weight: 51 kg/km Number of positions: 3 Shielded: yes Cable type: Shielded black RADOXîÃ[28R] Conductor structure signal line: 19x 0.18 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 1.43 mm External cable diameter: 5.3 mm ñ0.3Ãmm Outer sheath, material: PE-X External sheath, color: black Conductor material: Tin-plated Cu litz wires Material wire insulation: PE-X Single wire, color: white 1, white 2, white 3 Overall twist: 3 wires, twisted Max. conductor resistance: ââ°¤ 40.1 é/km Nominal voltage, cable: 600 VÃAC (Core-ground, U0) 1000 VÃAC (Core-ground, U) ââ°¤ 720 VÃAC (core-ground) ââ°¤ 1200 VÃAC (Core-ground, Um) ââ°¤ 900 VÃDC (Core-ground, V0) ââ°¤ 1500 VÃDC (Line-line) Test voltage: 3500 VÃAC (50ÃHz, 5Ãmin.) 8400 VÃDC (50ÃHz, 5Ãmin.) Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 4 x D Halogen-free: in accordance with EN 50267-2-1 Flame resistance: ENÃ60332-1-2 ENÃ50266 ENÃ50305, 9.1.2 NFÃC32-070, 2.1 NFÃC32-070, 2.2 ULÃ1685, 12 (FT4) in accordance with ISOÃ6722-1 5.22 (UN ECE-R 118.01) Fume corrosiveness: ENÃ50267-2-2 Fume toxicity: BSÃ6853 B.1 ENÃ50305, 9.2 Concentration of fumes: BS 6853 D.8.7 EN 61034-2 UL 1685, 12 (FT4) Resistance to oil: according to IRM 902, 72 h at 100°C Fire protection in rail vehicles: BSÃ6853 (Category Ia, Ib, II) GM/RTÃ2130 (Category Ia, Ib, II) ENÃ45545 (Risk level HL1 - HL3) DINÃ5510 (Fire protection level 1, 2, 3, 4) NFÃF16-101 (Category A1, A2, B) NFÃF16-101 (Class C/F0) NFPAÃ130 UNIÃCEIÃ11170 (Risk level LR1 - LR4) Other resistance: Resistance to fuels according to IRM 903, 168 h at 70°C Ambient temperature (operation): -50°C ... 120°C (cable, fixed installation) -25°C ... 90°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-101 ENÃ50155 |
