1407329 PHOENIX CONTACT -

SAC-5P-MR/ 5,0-28R SCO RAIL - Sensor/actuator cable

Sensor/actuator cable, 5-position halogen-free, shielded, Plug angled M12, coding: A SPEEDCON, connected with unwired, on free cable end, cable length: 5 m, For railway applications

Cod. Articolo: 1407329 copia - copy

Cod. Fornitore: 1407329 copia - copy

PHOENIX CONTACT

Notes	General: Further products with variable cable type and variable cable length can be found in the accessories section
Product properties	Product type: Sensor/actuator cable Number of positions: 5 Application: Railway applications No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Material of grip body: PA 6.6 Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Protective circuit: unwired
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)
Connector	Connection 1 Type: Plug angled M12 SPEEDCON Number of positions: 5 Coding type: A Locking type: SPEEDCON Connection 2 Type: free cable end

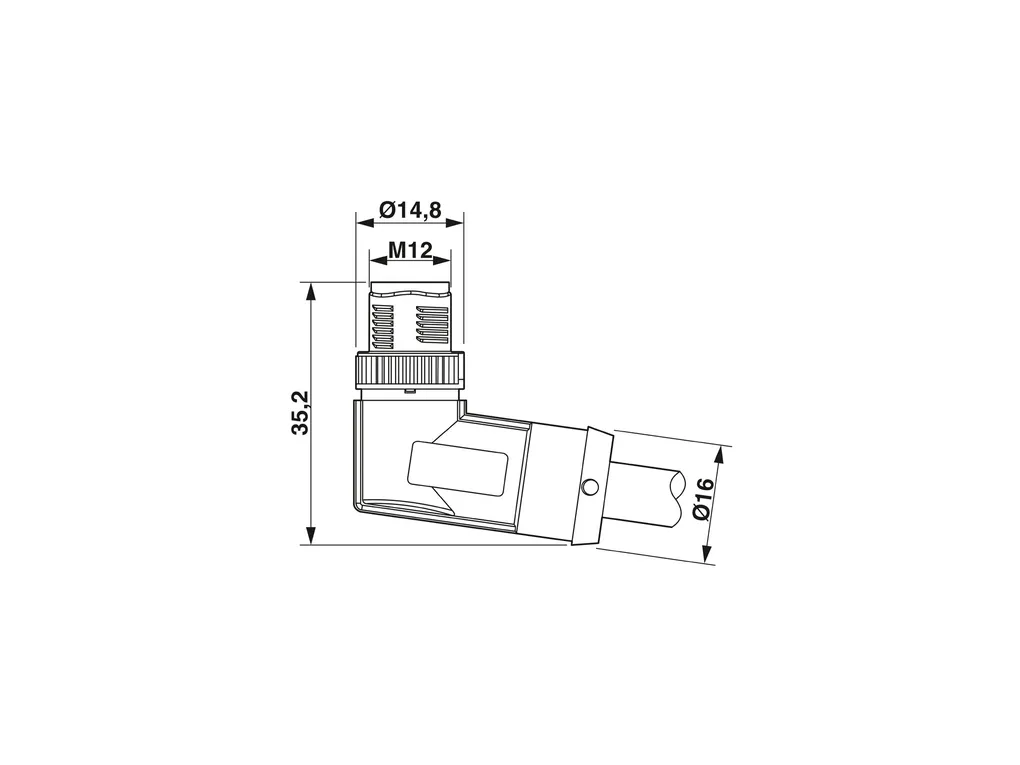

Cable/line	Cable length: 5 m Shielded black RADOX Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/608d9dbe6b37f2479e194b75b2c85728/-S204x204-FJPG Cable weight: 70 kg/km Number of positions: 5 Shielded: yes Cable type: Shielded black RADOX^Ã®Ã[28R] Conductor structure signal line: 19x 0.18 mm AWG signal line: 20 Conductor cross section: 5x 0.5 mm² Wire diameter incl. insulation: 1.43 mm External cable diameter: 6.2 mm Ã±0.3Ãmm Outer sheath, material: PE-X External sheath, color: black Conductor material: Tin-plated Cu litz wires Material wire insulation: PE-X Single wire, color: white 1, white 2, white 3, white 4, white 5 Overall twist: 5 cores, twisted Max. conductor resistance: Ã¢Ã¢°¤ 40.1 Ã©/km Nominal voltage, cable: 600 VÃAC (Core-ground, U₀) 1000 VÃAC (Core-ground, U) Ã¢Ã¢°¤ 720 VÃAC (core-ground) Ã¢Ã¢°¤ 1200 VÃAC (Core-ground, U_m) Ã¢Ã¢°¤ 900 VÃDC (Core-ground, V₀) Ã¢Ã¢°¤ 1500 VÃDC (Line-line) Test voltage: 3500 VÃAC (50ÃHz, 5Ãmin.) 8400 VÃDC (50ÃHz, 5Ãmin.) Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 4 x D Halogen-free: in accordance with EN 50267-2-1 Flame resistance: ENÃ60332-1-2 ENÃ50266 ENÃ60332-3-25 NFÃC32-070, 2.1 NFÃC32-070, 2.2 ULÃ1685, 12 (FT4) in accordance with ISOÃ6722-1 5.22 (UN ECE-R 118.01) Fume corrosiveness: ENÃ50267-2-2 Fume toxicity: BSÃ6853 B.1 ENÃ50305, 9.2 Concentration of fumes: BS 6853 D.8.7 EN 61034-2 UL 1685, 12 (FT4) Resistance to oil: according to IRM 902, 72 h at 100°C Fire protection in rail vehicles: BSÃ6853 (Category Ia, Ib, II) GM/RTÃ2130 (Category Ia, Ib, II) ENÃ45545 (Risk level HL1 - HL3) DINÃ5510 (Fire protection level 1, 2, 3, 4) NFÃF16-101 (Category A1, A2, B) NFÃF16-101 (Class C/F0) NFPAÃ130 UNIÃCEIÃ11170 (Risk level LR1 - LR4) Other resistance: Resistance to fuels according to IRM 903, 168 h at 70°C Ambient temperature (operation): -50°C ... 120°C (cable, fixed installation) -25°C ... 90°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket)
Standards and regulations	M12 Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-101 ENÃ50155
