| Notes | General: Further products with variable cable type and variable cable length can be found in the accessories section |
| Product properties | Product type: Data cable preassembled Sensor type: PROFINET Number of positions: 4 Application: Railway applications No. of cable outlets: 1 Shielded: yes Coding: D Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: PROFINET Ethernet Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps Ethernet CAT5 (IEC 11801), 100 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connector | Connection 1 Type: Plug straight M12 SPEEDCON / IP65 Number of positions: 4 Coding type: D (Data) Shielded: yes Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PA 6.6 (Contact carriers) PA 6.6 (Grip) Zinc die-cast, nickel-plated (Screw connection) Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) Insertion/withdrawal cycles: ââ°¥ 100 100 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Tightening torque: 0.4 Nm Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C Locking type: SPEEDCON Connection 2 Type: Plug straight M12 SPEEDCON / IP65 Number of positions: 4 Coding type: D (Data) Shielded: yes Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PA 6.6 (Contact carriers) PA 6.6 (Grip) Zinc die-cast, nickel-plated (Screw connection) Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) Insertion/withdrawal cycles: ââ°¥ 100 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Tightening torque: 0.4 Nm Ambient temperature (operation): -40°C ... 85°C Degree of protection: IP65 Locking type: SPEEDCON |

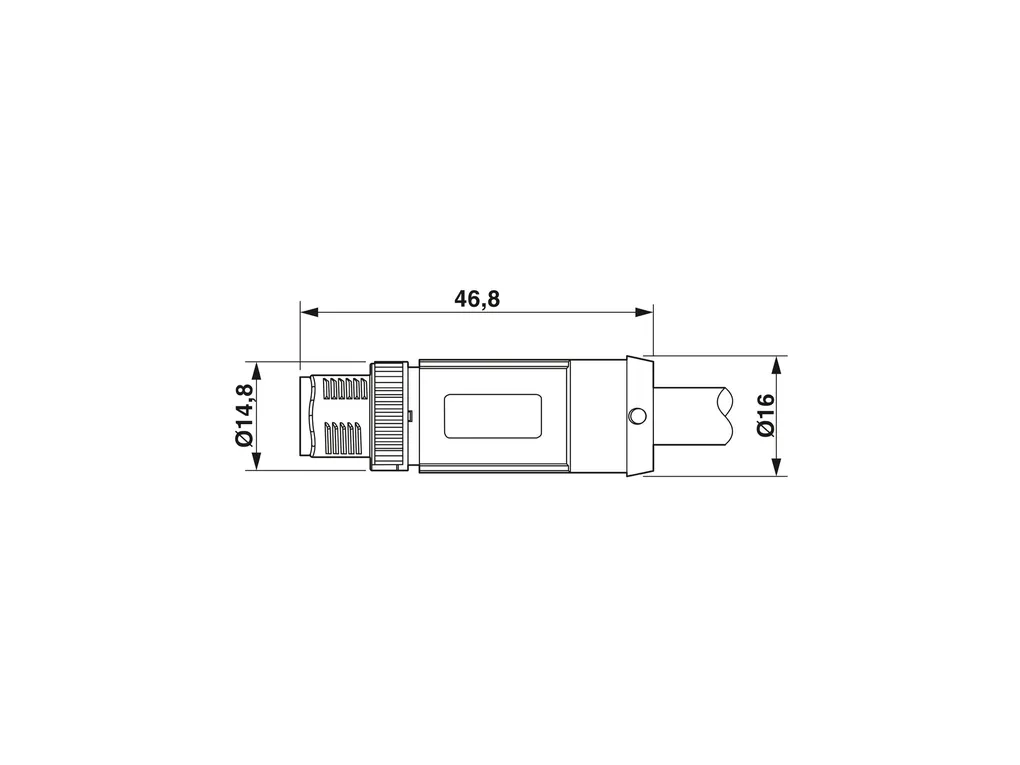

| Cable/line | Cable length: 2 m PROFINET RADOX Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/35eeeb11fbacdc4187dc972d16fa1966/-S204x204-FJPG Cable weight: 70 kg/km Number of positions: 4 Shielded: yes Cable type: PROFINET RADOXî railway application CAT5Ã[937] Conductor structure: 1x4xAWG22/7, SF/TQ Signal speed: 75 c Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Wire diameter incl. insulation: approx. 1.5 mm External cable diameter: 6.6 mm ñ0.4Ãmm Outer sheath, material: PE-X External sheath, color: black RALÃ9005 Conductor material: silver-plated Cu litz wires Material wire insulation: Foamed PE Single wire, color: white-blue, orange-yellow Thickness, outer sheath: approx. 1 mm Overall twist: Star quad Max. conductor resistance: ââ°¤ 54.4 é/km Coupling resistance: 200.00 mé/m (f ââ°¤ 30 MHz) Wave impedance: 100 é ñ5Ãé (f = 100 MHz) Working capacitance: ââ°¤ 65 pF (Line-line) ââ°¤ 100 pF (Line-shield) Nominal voltage, cable: 300 VÃAC Test voltage: 2000 VÃAC (50 Hz, 5 minutes) Minimum bending radius, fixed installation: 6 x D Near end crosstalk attenuation (NEXT): 73 dB (with 1 MHz) 70 dB (at 4 Ãà Hz) 65 dB (at 10 MHz) 57 dB (at 31.5ÃÃà Hz) 52 dB (at 62.5ÃÃà Hz) 48 dB (at 100 MHz) Return attenuation (RL): 25 dB (at 4 Ãà Hz) 30 dB (at 10 MHz) 30 dB (at 31.5ÃÃà Hz) 30 dB (at 62.5ÃÃà Hz) 28 dB (at 100 MHz) Remote crosstalk attenuation (FEXT): 78 dB (with 1 MHz) 77 dB (at 4 Ãà Hz) 70 dB (at 10 MHz) 65 dB (at 31.5ÃÃà Hz) 56 dB (at 62.5ÃÃà Hz) 48 dB (at 100 MHz) Shield attenuation: 2 dB (with 1 MHz) 4.4 dB (at 4 Ãà Hz) 7.4 dB (at 10 MHz) 14 dB (at 31.5ÃÃà Hz) 20 dB (at 62.5ÃÃà Hz) 26 dB (at 100 MHz) 40 dB (30 MHz ââ°¤ f ââ°¤ 100 MHz) Halogen-free: in accordance with EN 50267-2-1 Flame resistance: ENÃ60332-1-2 ENÃ50266 ENÃ60332-3-25 NFÃC32-070, 2.1 NFÃC32-070, 2.2 ULÃ1685, 12 (FT4) in accordance with ISOÃ6722-1 5.22 (UN ECE-R 118.01) Fume corrosiveness: ENÃ50267-2-2 Fume toxicity: BSÃ6853 B.1 ENÃ50305, 9.2 Concentration of fumes: BS 6853 D.8.7 EN 61034-2 UL 1685, 12 (FT4) Resistance to oil: according to IRM 902, 72 h at 100°C Fire protection in rail vehicles: BSÃ6853 (Category Ia, Ib, II) GM/RTÃ2130 (Category Ia, Ib, II) ENÃ45545 (Risk level HL1 - HL3) DINÃ5510 (Fire protection level 1, 2, 3, 4) NFÃF16-101 (Category A1, A2, B) NFÃF16-101 (Class C/F0) NFPAÃ130 UNIÃCEIÃ11170 (Risk level LR1 - LR4) Other resistance: Resistance to fuels according to IRM 903, 168 h at 70°C Ambient temperature (operation): -50°C ... 90°C (cable, fixed installation) -40°C ... 90°C (Cable, flexible installation) Ambient temperature (installation): -25°C ... 90°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 |
| Standards and regulations | M12 Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-101 ENÃ50155 |
