| Notes | General: Further products with variable cable type and variable cable length can be found in the accessories section |
| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: D Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet CAT5 (IEC 11801), 100 Mbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) |
| Material specifications | Flammability rating according to UL 94: V0 |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 / IP67 Number of positions: 4 Coding type: D (Data) Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PA (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Zinc die-cast, nickel-plated (Screw connection) FKM (Seal) Insertion/withdrawal cycles: ââ°¥ 100 Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Tightening torque: 0.4 Nm Ambient temperature (operation): -25°C ... 90°C Degree of protection: IP67 |

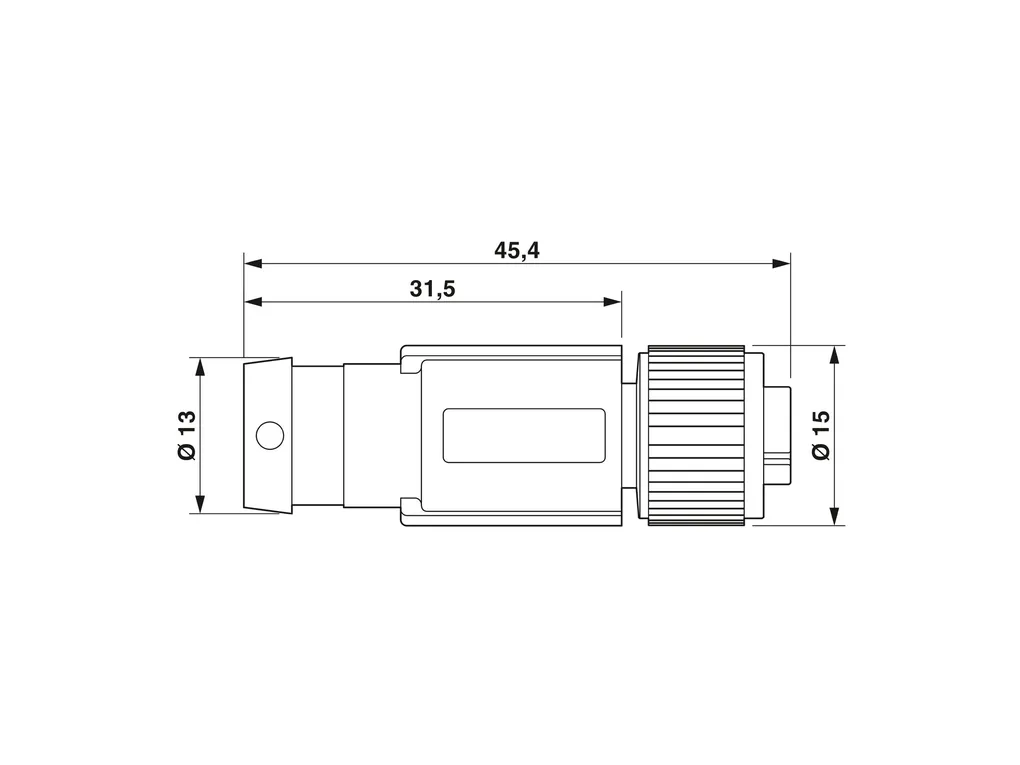

| Cable/line | Cable length: 1 m Ethernet flexible CAT5, 2-pairÃ[93E] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7fe2dbaea8a70742b151e6eb6516da5e/-S204x204-FJPG Cable weight: 42 kg/km UL AWM Style: 20963 (80°C/30 V) Wiring standards/regulations: Electrical requirements ENÃ50288-2-2 Number of positions: 4 Shielded: yes Cable type: Ethernet flexible CAT5, 2-pairÃ[93E] Conductor structure: 2x2xAWG26/7, SF/UTP Signal runtime: 5.3 ns/m Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 2x 2x 0.14 mm² Wire diameter incl. insulation: 0.98 mm External cable diameter: 6.4 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE Single wire, color: white/orange-orange, white/green-green Thickness, outer sheath: 1.2 mm Twisted pairs: 2 cores to the pair Overall twist: Two pairs with two fillers to the core Optical shield covering: 70 % Insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Loop resistance: ââ°¤ 290.00 é/km Wave impedance: 100 é ñ5Ãé (at 100 MHz) Cable capacity: approx. 45 nF/km (at 1 kHz) Nominal voltage, cable: ââ°¤ 100 V (Peak value, not for high-power applications) Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Current carrying capacity of cable: 2 A (according to DINÃVDEÃ0891-1) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Tensile strength: ââ°¤ 80 N Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz) 56.3 dB (at 4 Ãà Hz) 50.3 dB (at 10 MHz) 47.2 dB (at 16 MHz) 45.8 dB (at 20ÃÃà Hz) 42.9 dB (at 31.25ÃÃà Hz) 38.4 dB (at 62.5ÃÃà Hz) 35.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃà Hz) 39.9 dB (at 31.25ÃÃà Hz) 35.4 dB (at 62.5ÃÃà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8ÃÃà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃà Hz) 23.6 dB (at 31.25ÃÃà Hz) 21.5 dB (at 62.5ÃÃà Hz) 20.1 dB (at 100 MHz) Shield attenuation: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃà Hz) 17.1 dB (at 31.25ÃÃà Hz) 24.8 dB (at 62.5ÃÃà Hz) 32 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Flame resistance: according to IEC 60332-1-2 in acc. to UL VW1 in accordance with UNÃECE-RÃ118.03 Resistance to oil: in accordance with EN 60811-2-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) Ambient temperature (installation): -20°C ... 80°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
