1407966 PHOENIX CONTACT -

SAC-4P-M12MR/ 5,0-28X OD - Sensor/actuator cable

Sensor/actuator cable, 4-position halogen-free, Plug angled M12, coding: A, connected with unwired, on free cable end, cable length: 5 m, for outdoor applications, with high-grade steel knurl

Cod. Articolo: 1407966 copia - copy

Cod. Fornitore: 1407966 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable Number of positions: 4 Application: External areas No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FPM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 250 VÃAC 250 VÃDC Nominal current I_N: 4 A Protective circuit: unwired
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)
Connector	Connection 1 Type: Plug angled M12 Number of positions: 4 Coding type: A Connection 2 Type: free cable end

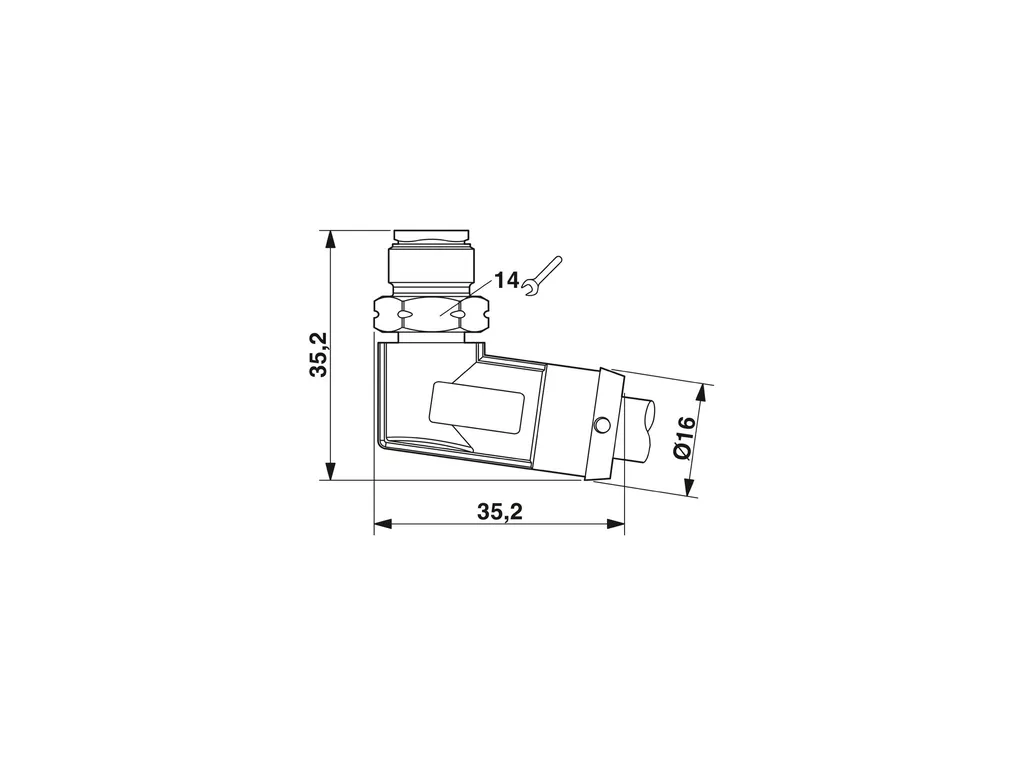

Cable/line	Cable length: 5 m PE-X blackÃ[28X] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/913dcd66dd479b4897ac358d309324f9/-S204x204-FJPG Cable weight: 44 kg/km Number of positions: 4 Shielded: no Cable type: PE-X blackÃ[28X] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 4x 0.5 mm² (Signal line) Wire diameter incl. insulation: 1.6 mm Ã±0.05 mm (Signal line) External cable diameter: 5.2 mm Ã±0.2Ãmm Outer sheath, material: PE-X External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PE-X Single wire, color: brown, white, blue, black Thickness, insulation: approx. 0.3 mm (Core insulation) approx. 0.6 mm (Outer cable sheath) Overall twist: 4 wires, twisted Length of twist, overall twist: 61.6 mm Max. conductor resistance: Ã¢Ã¢°¤ 39 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 100 MÃ©*km (at 20Ã°C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 VÃAC Test voltage: Ã¢Ã¢°¥ 3000 VÃAC Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Max. bending cycles: 2000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃ60332-1-2 according to DINÃENÃ50266-2-5 according to IEC 60332-3-25 (bunched fire test) Fume corrosiveness: according to IEC 60754 Concentration of fumes: according to DINÃENÃ61034 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: UV resistant according to DINÃVDEÃ0276-605 Special properties: Irradiated Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -15°C ... 105°C (Cable, flexible installation) 120°C (at 48 h - see test report 19233) 180°C (at 48 h - see test report 19233)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -40°C ... 105°C (Plug / socket)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
