| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: MSTB Male Product type: Data plug Number of positions: 5 Shielded: no Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Rated voltage (II/2): 630 V Rated voltage (III/2): 400 V Rated voltage (III/3): 24 V 250 V Rated surge voltage (II/2): 4 kV Rated surge voltage (III/2): 4 kV Rated surge voltage (III/3): 4 kV Rated current: 16 A (at 20ðC) 16 A |

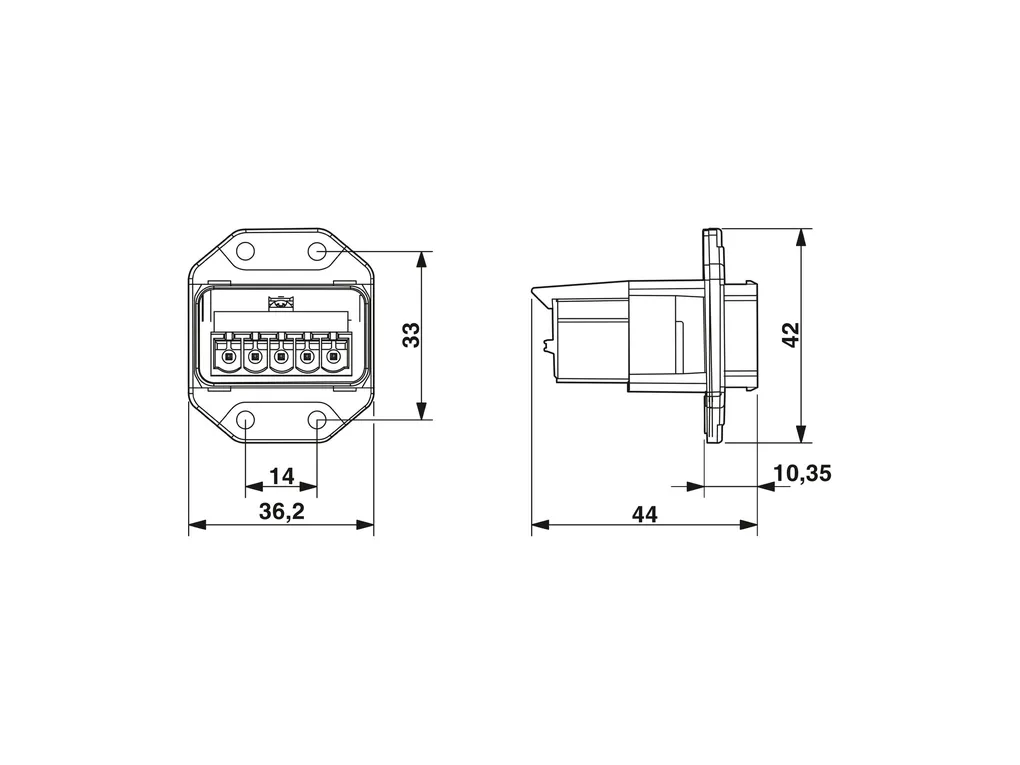

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70aaf6e902e1fc46acb733feda930bc7/-S204x204-FJPG Width: 36.2 mm Height: 42 mm Length: 41.9 mm |
| Material specifications | Color: silver Flammability rating according to UL 94: V0 Seal material: NBR |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Mounting | Connection method: Spring-cage connection |
