1408499 PHOENIX CONTACT -

SAC-2P-M 8MR/0,16-PUR/CI-1L-Z - Sensor/actuator cable

Sensor/actuator cable, 2-position, Plug angled M8, on Valve connector CI (9.4mm), with 1 LED, connected with Z diode, cable length: 0.16 m

Cod. Articolo: 1408499 copia - copy

Cod. Fornitore: 1408499 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 2
Electrical properties	Nominal voltage U_N: 24 VÃAC 24 VÃDC
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100

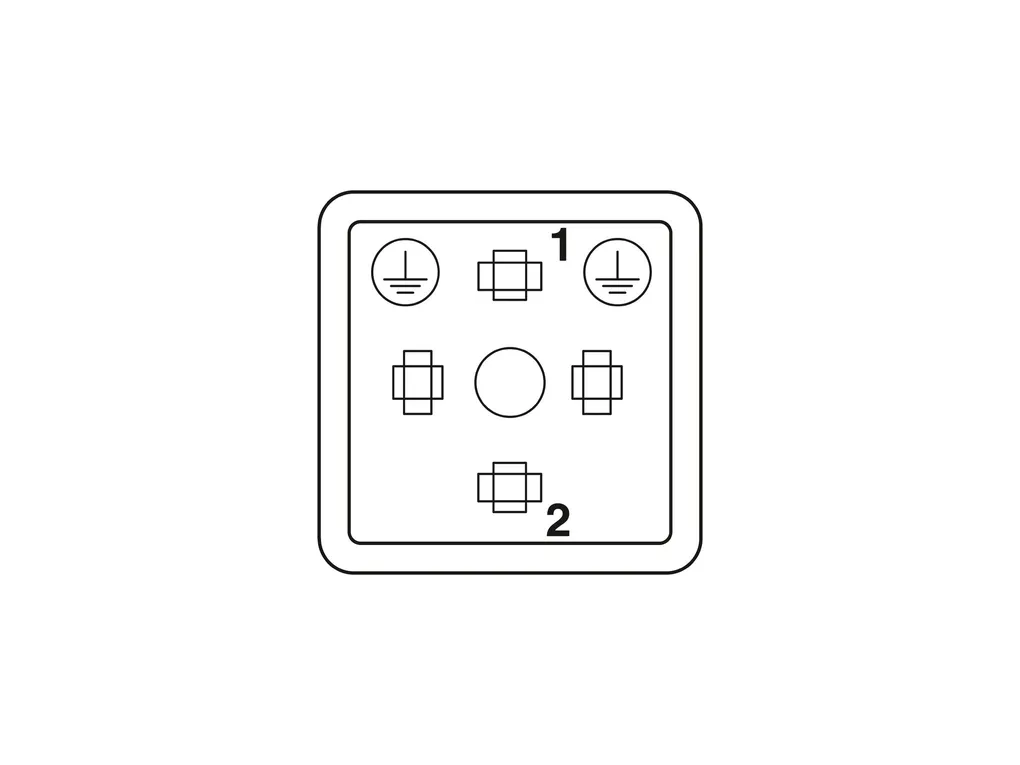

Connector	Connection 1 Type: Plug angled M8 Connection 2 Type: Valve connector CI (9.4Ãmm)
Cable/line	Cable length: 0.16 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f3d3823ef3ae574a915ce4acc84d98da/-S204x204-FJPG Cable weight: 23 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 3x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.27 mm Ã±0.02Ãmm (Signal line) External cable diameter: 3.85 mm Ã±0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue, black Thickness, insulation: Ã¢Ã¢°¥ 0.21 mm (Core insulation) approx. 0.5 mm (Outer cable sheath) Overall twist: 3 wires, twisted Max. conductor resistance: max. 58 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 100 GÃ©*km (at 20Ã°C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Smallest bending radius, fixed installation: 19 mm Smallest bending radius, movable installation: 38 mm Max. bending cycles: 10000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: in accordance with ULÃ758/1581 FT2 DINÃENÃ60332-2-2 (20Ãs) Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Special properties: Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation)
