1408966 PHOENIX CONTACT -

NBC-R4QC/2,0-94B/R4QC - Network cable

Assembled Ethernet cable, shielded, 4-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 push/pull plastic housing to RJ45 plug/IP67 push/pull plastic housing, line, length: 2 m

Cod. Articolo: 1408966 copia - copy

Cod. Fornitore: 1408966 copia - copy

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Number of slots: 1 Shielded: yes Cable outlet: straight Insulation characteristics Degree of pollution: 2
Signaling	Status display: No Status display present: No
Electrical properties	Rated voltage (III/3): 72 V (DC) Nominal voltage U_N: 48 V Nominal current I_N: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 1 Gbps Wave impedance: 100 Ã©
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 200
Material specifications	Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires
Connector	Connection 1 Type: Plug straight RJ45 Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA GF (Housing) Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 750 Degree of protection: IP67 Ambient temperature (operation): -40°C ... 70°C Number of positions: 8 Locking type: Push Pull Connection 2 Type: Plug straight RJ45 Handle color: black Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA GF (Housing) Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Ambient temperature (operation): -40°C ... 70°C Number of positions: 8 Degree of protection: IP67 Locking type: Push Pull

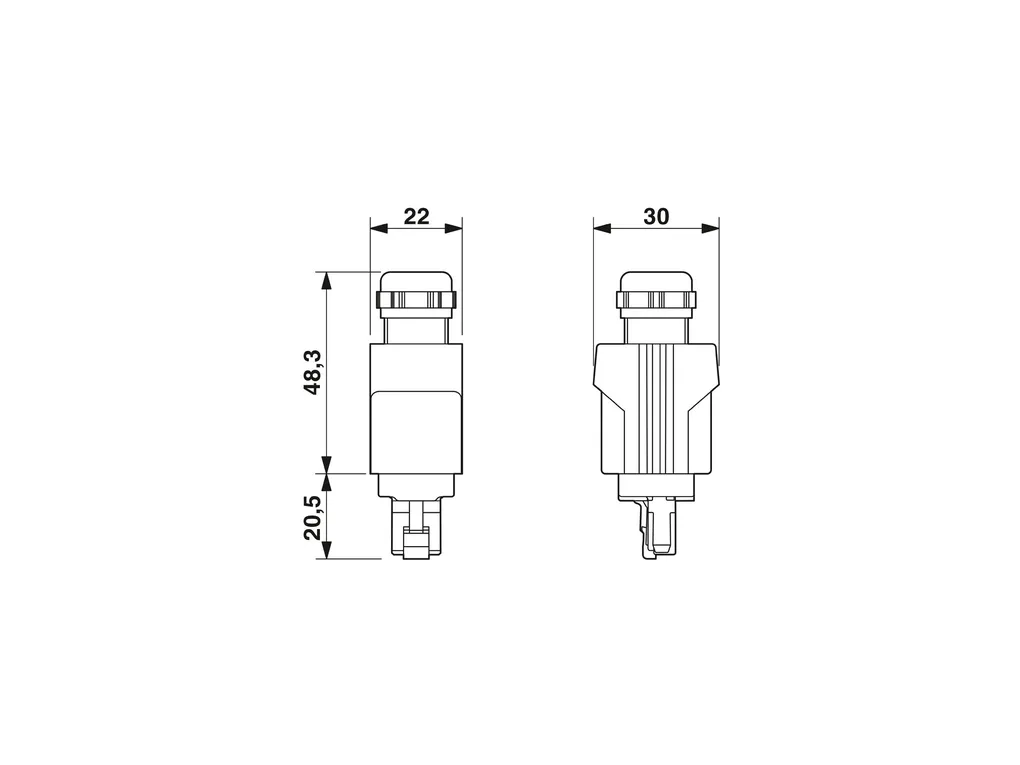

Cable/line	Cable length: 2.00 m Ethernet flexible CAT5, 4-pairÃ[94B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 47 kg/km Cable type: Ethernet flexible CAT5, 4-pair Short symbol: 02YS(ST)C11Y Cable type (abbreviation): 94B Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure: 4x2xAWG26/7, SF/UTP External cable diameter: 6.4 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Thickness, outer sheath: 1.05 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 0.96 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: Ã¢Ã¢°¤ 100 V Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable insulation resistance: Ã¢Ã¢°¥ 5 GÃ©*km Coupling resistance: Ã¢Ã¢°¤ 100.00 mÃ©/m (at 10 MHz) Wave impedance: 100 Ã© Ã±5ÃÃ© (at 100 MHz) Loop resistance: Ã¢Ã¢°¤ 290.00 Ã©/km Cable capacity: 48 nF/km (at 1 kHz) Signal runtime: 5.3 ns/m Tensile strength: Ã¢Ã¢°¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.2 dB (with 1 MHz) 6 dB (at 4 ÃÃHz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃÃHz) 17.1 dB (at 31.25ÃÃÃHz) 24.8 dB (at 62.5ÃÃÃHz) 32 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 ÃÃHz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20ÃÃÃHz) 48.9 dB (at 31.25ÃÃÃHz) 44.4 dB (at 62.5ÃÃÃHz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 ÃÃHz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃÃHz) 39.9 dB (at 31.25ÃÃÃHz) 35.4 dB (at 62.5ÃÃÃHz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 ÃÃHz) 24.1 dB (at 8ÃÃÃHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃÃHz) 23.6 dB (at 31.25ÃÃÃHz) 21.5 dB (at 62.5ÃÃÃHz) 20.1 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (RJ45 connector) IP65/IP67 Ambient temperature (operation): -40°C ... 70°C (RJ45 connector)
Standards and regulations	Standards/specifications: IEC PASÃ61076-3-117
