| Notes | General: These cable assemblies are UL/cUL listed for use in Class I, Division 2 (CID2) hazardous locations. |
| Product properties | Product type: Sensor/actuator cable Application: U.S. cables for hazardous locations Number of positions: 5 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated Outer sheath, material: PVC |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 V AC 60 V DC Nominal current IN: 4 A |
| Signaling | Status display: no Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |

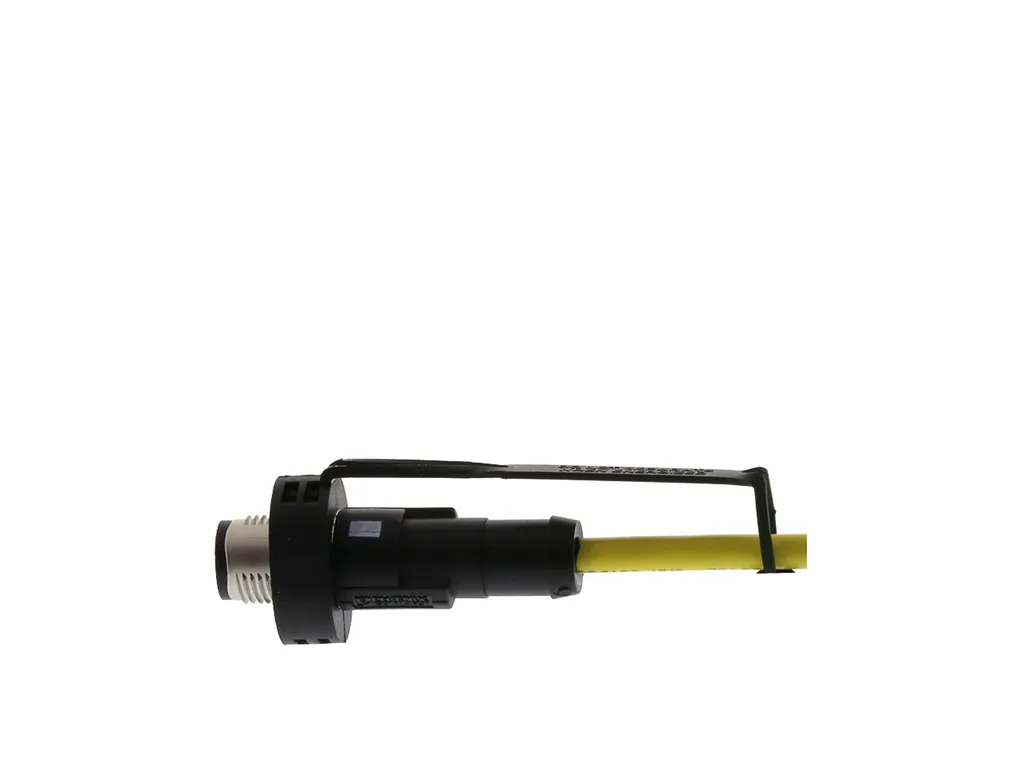

| Connector | Connection 1 Type: Plug straight M12 Coding type: A Connection 2 Type: free cable end |
| Cable/line | Cable length: 10 m PVC yellow 105 °C [542] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/11396/full/b1500?format=jpg Cable weight: 57 kg/km UL AWM Style: 2517 (105 °C / 300 V) Number of positions: 5 Shielded: yes Cable type: PVC yellow 105 °C [542] Conductor structure signal line: 30x 1.30 mm AWG signal line: 22 Wire diameter incl. insulation: 1.27 mm ñ0.03 mm External cable diameter: 5.90 mm ñ0.2 mm Outer sheath, material: PVC External sheath, color: yellow Conductor material: Tin-plated Cu litz wires Material, filler: PP Material wire insulation: PVC Single wire, color: brown, blue, black, white, gray Overall twist: 5 wires around filler to the core Optical shield covering: 85 % Max. conductor resistance: max. 50.5 é/km (20 °C) Insulation resistance: ââ°¥ (550 M Ohms/m @ 500V) Nominal voltage, cable: 300 V Minimum bending radius, flexible installation: 12 x D Smallest bending radius, movable installation: 71 mm Flame resistance: FT4 Other resistance: UV resistant Special properties: UL standards PLTC and ITC Ambient temperature (operation): -30 °C ... 105 °C (cable, fixed installation) -5 °C ... 105 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) |
| Approvals | Conformity/Approvals UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
